IME412901 IME 2 POSIC 2 CONT INV SWITCH

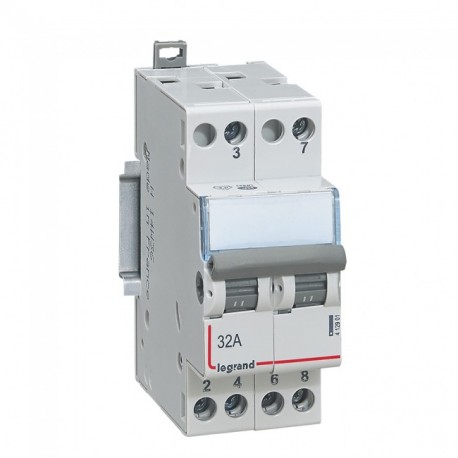

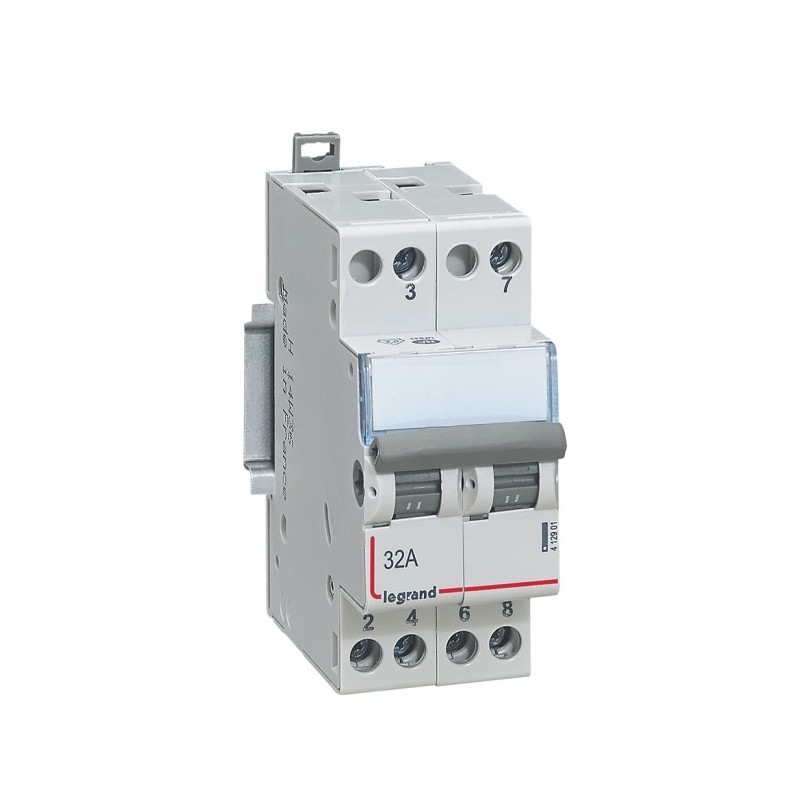

IME 412901 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412901 IME 2 POSIC 2 CONT INV SWITCH

Code: 412901

Manufacturer: IME

Description:

2 POSIC 2 CONT INV SWITCH
2 position switch - 2 contacts 32A - 400V~ - 1 module
2 position switch - 2 contacts 32A - 400V~ - 1mod

Categories:

  • Devices for distribution board-/surface mounting > Main switch for distribution board
  • IME

Brand new product in its original packaging covered by the warranties and certifications provided by IME

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

2 position switch 2 inverter contacts. 2-position switches - Comply with EN 60669-1 standard - Nominal intensity 32A - Can switch fluorescent loads (20 AX) Double switch 400V~ - 2 contacts - Number of modules: 2. 2 and 3 position switches, rotary switches.
Switching functionBidirectional switch
Number of contacts normally opened0
Number of Normally Closed Contacts0
Number of investor contacts2
Number of poles4
Nominal current32 A
Nominal voltage400 V
Minimum Voltage Rating380 V
Short Circuit Resistance (Icw)0.384 kA
Type of voltageAC
With signal lampNo
Hood colorOther
LampOther
Lamp BaseOther
Width in number of modular spaces2
Installation Depth44 mm
Protection Class (IP)IP20
Width35.6 mm
Height94 mm
Depth76 mm
Operating Temperature (Min-Max)-5-40 °C
Storage Temperature (Min-Max)-10-70 °C
Display of markings on the connection terminalsYes
Connection MethodScrew-on terminal
Terminal Capacity (Min-Max)1.5-6 mm²
Label Space/Print AreaYes
Type of mountingDIN Lane

ETIM for 412901 Modular devices for distribution board/surface mounting (EC001545)

Feature nameShort-circuit breaking capacity (Icw) (EF002562)
Feature value0.384 kA
Feature nameMin. rated voltage (EF005025)
Feature value380 V
Feature nameLamp socket (EF004870)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value2
Feature nameLamp type (EF002423)
Feature valueOther
Feature nameWith signal lamp (EF000198)
Feature valueNo
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameSwitching function (EF000189)
Feature valueTwo-way switch
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameRated current (EF000227)
Feature value32 A
Feature nameColour calotte (EF004668)
Feature valueOther
Feature nameBuilt-in depth (EF000218)
Feature value44 mm
Feature nameRated voltage (EF000228)
Feature value400 V

DATASHEET - PDF

Title
Size
Type
412901 EN_412900.pdf
219 Kbytes
PDF CATALOGUE IME EN
17 Mbytes
