IME412439 IME COMPENSATOR

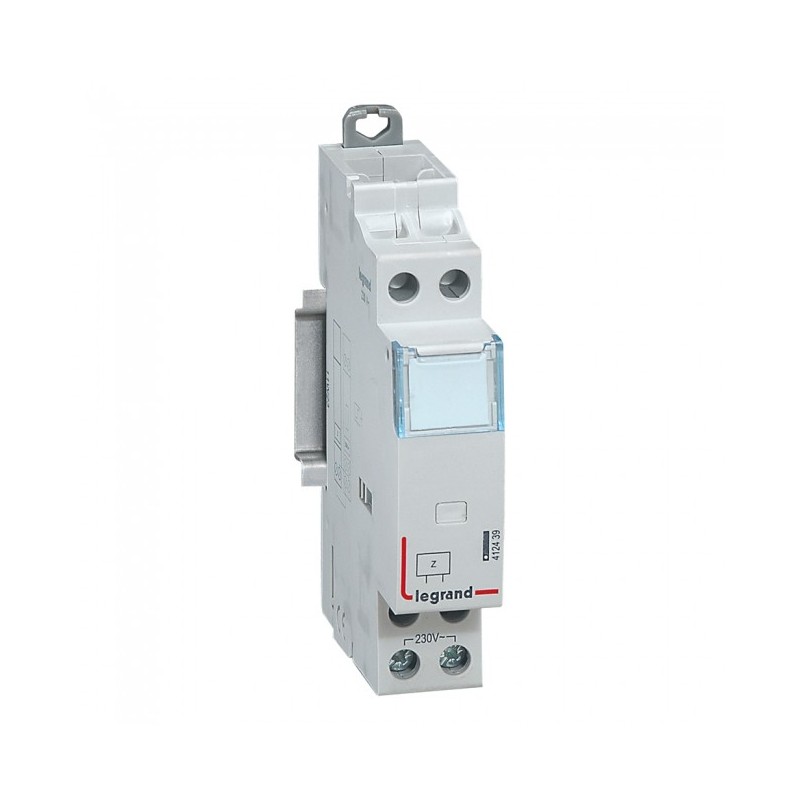

IME 412439 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

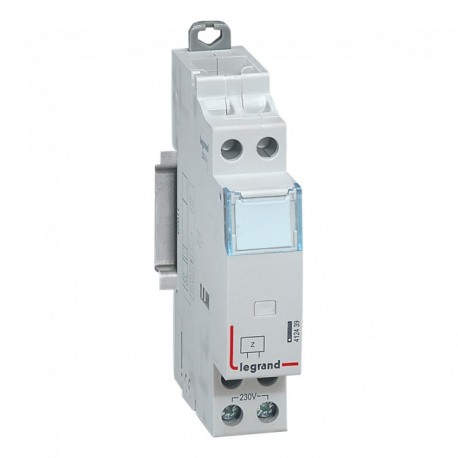

412439 IME COMPENSATOR

Code: 412439

Manufacturer: IME

Description:

COMPENSATOR
Impedance compensator for 230V~ - 50/60Hz relay

Categories:

  • Devices for distribution board-/surface mounting > Auxiliary device for distribution board devices
  • IME

Brand new product in its original packaging covered by the warranties and certifications provided by IME

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Compensator - Allows control of standard 230V~ remote switches by means of illuminated buttons - Connects to the terminal blocks of the remote switch coil - For an absorbed current of 3 to 6 mA (e.g.: 6 to 11 consumption buttons 0.5 mA) connect 1 compensator - For an absorbed current of 6 to 9 mA (e.g.: 12 to 17 consumption buttons 0.5 mA) connect 2 compensators - Impedance compensator for remote switches - 230V~ - 50/60 Hz - Number of modules: 1. CX³ auxiliaries and compensator - for standard switches.
Equipment InstallationAuxiliary switch/relay
functionRemote device
Width in number of modular spaces1
Nominal voltage230 V
Type of voltageAC
Self-tested for residual current functionNo
Suitable for max.. No. of Poles of Main Contact Unit (Total)4
Suitable for max.. Main Contact Unit Amperage16 A

ETIM for 412439 Modular devices for distribution board/surface mounting (EC001286)

Feature nameFunction (EF000030)
Feature valueRemote drive
Feature nameWidth in number of modular spacings (EF002950)
Feature value1
Feature nameSuitable for max. current main contact unit (EF008730)
Feature value16 A
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameWith auto test for earth leakage function (EF008727)
Feature valueNo
Feature nameRated voltage (EF000228)
Feature value230 V
Feature nameDevice fitting (EF007826)
Feature valueAuxiliary switch / relay
Feature nameSuitable for max. number of poles main contact unit (total) (EF008729)
Feature value4
