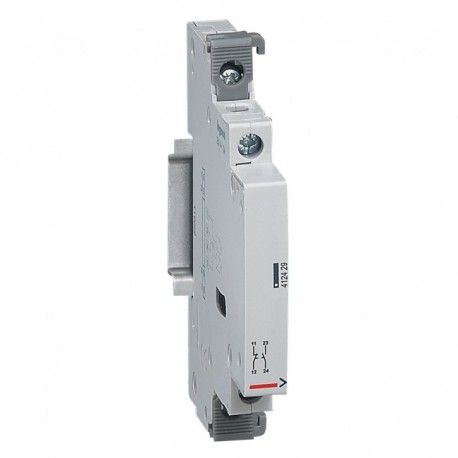

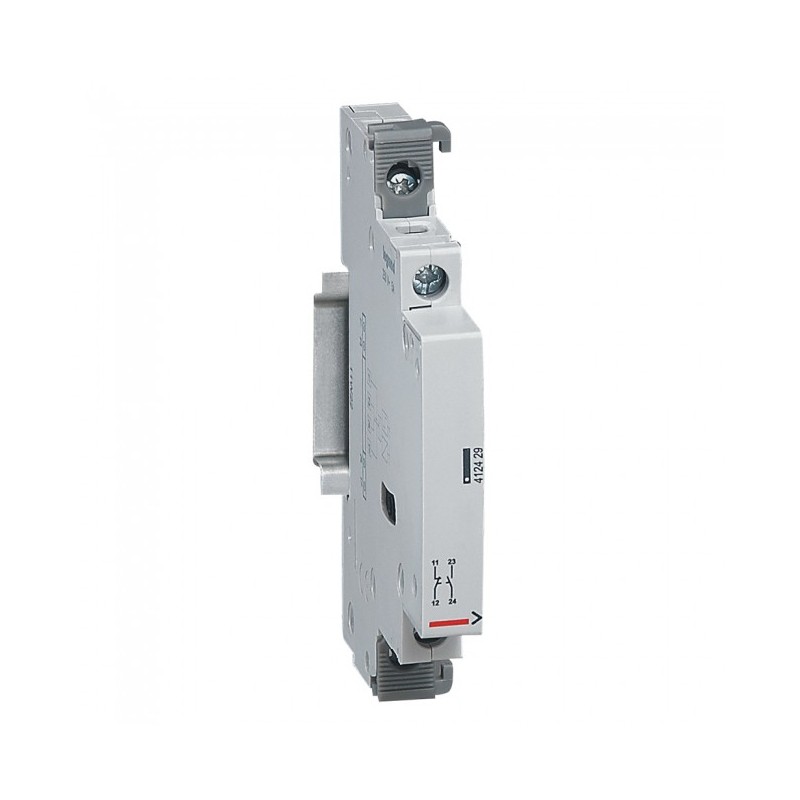

412429 IME NA+NC INV AUXILIARY CONTACTOR View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

412429 IME NA+NC INV AUXILIARY CONTACTOR

412429

IME

NA+NC INV AUXILIARY CONTACTOR

Auxiliary for contactors 1 module 16/25A - aux contact inverter A +C - 5A - 250V~

Auxiliary for 1mod 16/25A contactors

More details


Devices for distribution board-/surface mounting > Auxiliary device for distribution board devices

Home > IME

Brand new product in its original packaging covered by the warranties and certifications provided by IME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

Best sellers

More info



Open contact+closed contact auxiliary contactor. Signaling auxiliaries - Auxiliary inverter contacts - Allow to signal the position status of the contacts of the product to which they are associated - For: - standard switches equipped or not with a control aid - contactors 1 module from 16 to 25A - 2 auxiliaries maximum - Mounted to the left of the contactor - Max I: 5A - Voltage: 250 V~ - 50/60 Hz - Contact: A + C - Number of modules: 0.5. Auxiliaries and connection module for CX³ contactors.
Equipment InstallationAuxiliary switch/relay
functionAuxiliary switch
Width in number of modular spaces0.5
Number of contacts normally opened1
Number of Normally Closed Contacts1
Number of investor contacts0
Number of error signal switches0
Nominal switching current5 A
Nominal voltage250 V
Type of voltageAC
Self-tested for residual current functionNo
Suitable for max.. No. of Poles of Main Contact Unit (Total)4
Suitable for max.. Main Contact Unit Amperage16 A
Width9 mm
Height84.5 mm
Depth67 mm

ETIM for 412429 Modular devices for distribution board/surface mounting (EC001286)
Feature Name Feature Value
Function (EF000030) Auxiliary switch
Number of fault-signal switches (EF007613) 0
Number of contacts as change-over contact (EF008257) 0
Width in number of modular spacings (EF002950) 0.5
Suitable for max. current main contact unit (EF008730) 16 A
Voltage type (EF000187) AC
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as normally open contact (EF008256) 1
Rated switch current (EF006706) 5 A
With auto test for earth leakage function (EF008727) No
Rated voltage (EF000228) 250 V
Device fitting (EF007826) Auxiliary switch / relay
Suitable for max. number of poles main contact unit (total) (EF008729) 4

Datasheet - PDF

Title: Size: Type:
PDF CATALOGUE IME EN.pdf 17 Mbytes
412429 EN_412429.pdf 449 Kbytes     412429 EN_412429.pdf
