IME406527 IME DX3 IS-A 2P 40A SWITCH

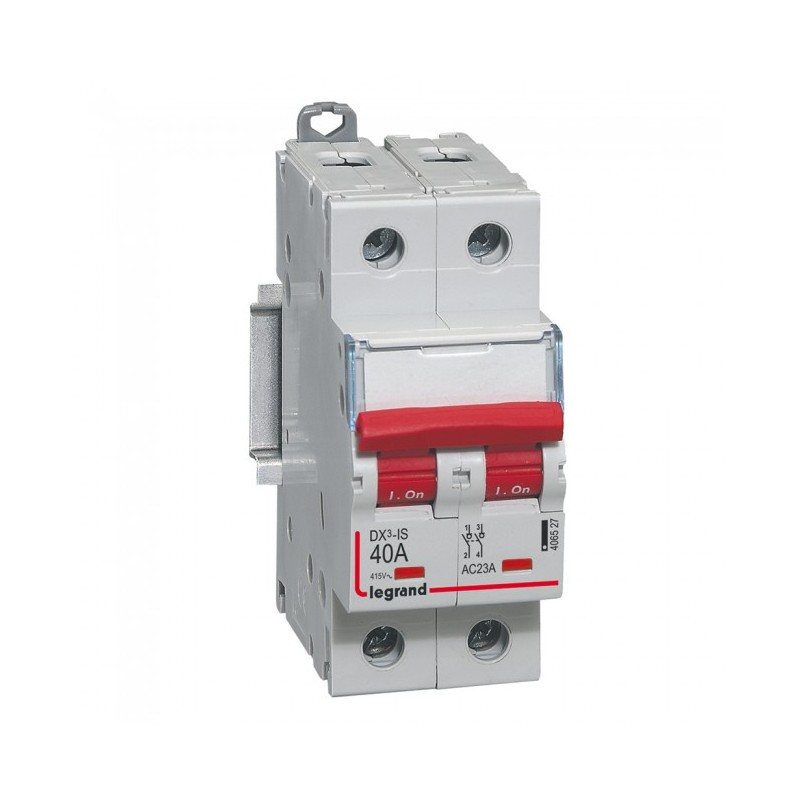

IME 406527 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

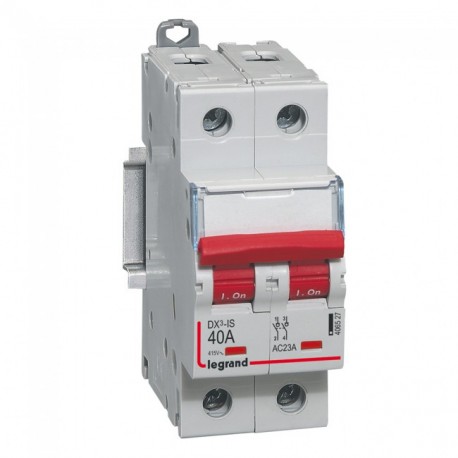

406527 IME DX3 IS-A 2P 40A SWITCH

Code: 406527

Manufacturer: IME

Description:

DX3 IS-A 2P 40A SWITCH
DX³ -IS disconnect switch - with remote trip - 2P - 400 V~ - 40A - 2 modules
DX³ -IS disconnect switch - with remote trip - 2P - 40A - 2mod

Categories:

  • Low-voltage industrial components > Switch disconnector
  • IME

Brand new product in its original packaging covered by the warranties and certifications provided by IME

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

DX3 IS-A 2-pole switch 40A. Trip disconnect switches - Use category AC 22A and AC 23A (AC 22A for 125 A) according to EN 60947-3 - Red key cover - Remote triggering with associated control aid - Suitable for command and signalling assistants - Suitable for motorized controls - Visual indication of the actual status of the contacts: - "closed" position (red indicator) - "open" position (green indicator) Bipolar 400 V~ - Nominal current: 40A - Number of modules: 2. DX³ -IS disconnector switches - sectioning at installation headend, 16 to 125A - Mounting in symmetrical profile EN 60715 - Fully visible cut.
Running as a main switchYes
Operation as a maintenance/repair switchNo
Operation as a safety switchYes
Execution as an emergency stop deviceNo
Maximum Rated Operating Voltage Ue AC400 V
Permanent nominal current Iu40 A
Conditional Short-Circuit Current Rating Iq4500 kA
Number of poles2
Optional motorized driveNo
Integrated motorized driveNo
Device constructionFixed integrated technology for integrated device
Floor MountNo
Suitable for 4-hole front mountingNo
Suitable for center front mountingNo
Suitable for distributor installationYes
Suitable for intermediate mountingNo
Execution of the actuator elementHandle
InterlockableYes
Main Current Circuit Connection TypeThreaded connection
Degree of protection (IP), frontIP20

ETIM for 406527 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueNo
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value400 V
Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameNumber of poles (EF001391)
Feature value2
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameType of control element (EF006976)
Feature valueToggle
Feature nameConditioned rated short-circuit current Iq (EF001444)
Feature value4500 kA
Feature nameRated permanent current Iu (EF001389)
Feature value40 A
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP20

DATASHEET - PDF

Title
Size
Type
406527 EN_406527.pdf
561 Kbytes
PDF CATALOGUE IME EN
17 Mbytes
