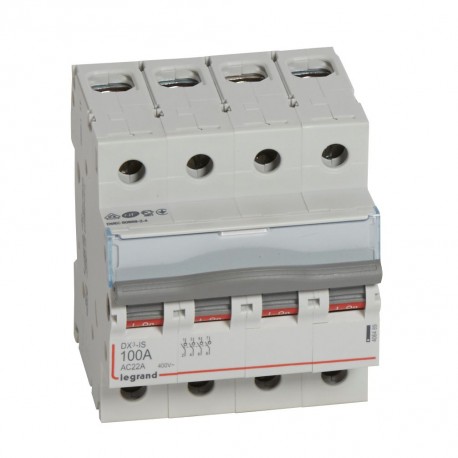

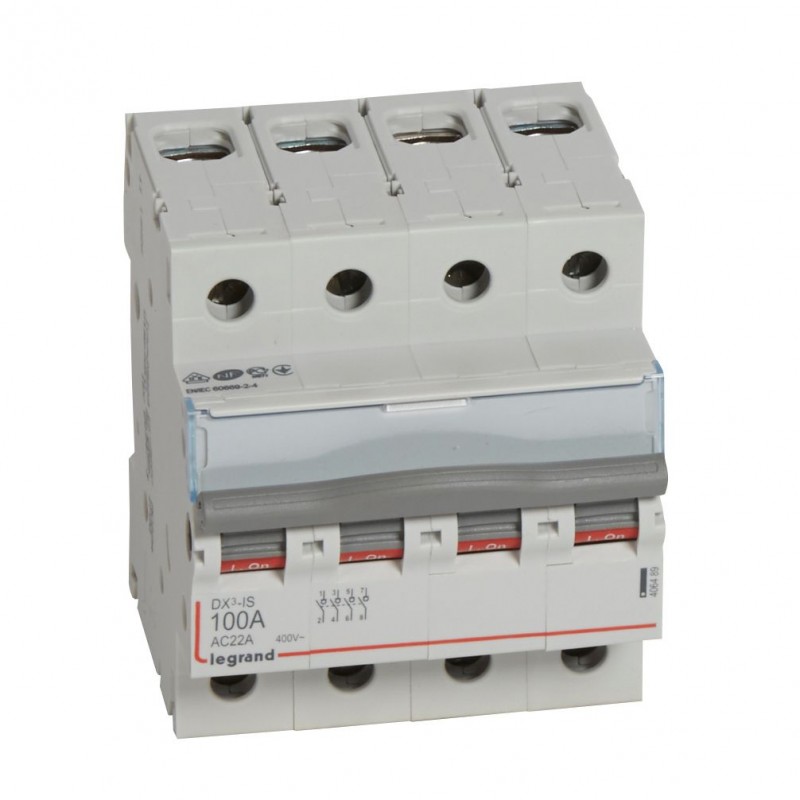

406489 IME DX3 IS 4P 100A SWITCH
406489
IME
DX3 IS 4P 100A SWITCH
DX³ -IS - 4P - 400V~ - 100A - 4 modules
Home > IME
Brand new product in its original packaging covered by the warranties and certifications provided by IME
Best sellers
▲More info
▲| Running as a main switch | Yes |
|---|---|
| Operation as a maintenance/repair switch | No |
| Operation as a safety switch | Yes |
| Execution as an emergency stop device | No |
| Maximum Rated Operating Voltage Ue AC | 400 V |
| Permanent nominal current Iu | 100 A |
| Conditional Short-Circuit Current Rating Iq | 4500 kA |
| Number of poles | 4 |
| Optional motorized drive | No |
| Integrated motorized drive | No |
| Device construction | Fixed integrated technology for integrated device |
| Floor Mount | No |
| Suitable for 4-hole front mounting | No |
| Suitable for center front mounting | No |
| Suitable for distributor installation | Yes |
| Suitable for intermediate mounting | No |
| Execution of the actuator element | Handle |
| Interlockable | Yes |
| Main Current Circuit Connection Type | Threaded connection |
|---|---|
| Degree of protection (IP), front | IP20 |
| Width | 70.8 mm |
| Height | 88.9 mm |
| Depth | 76.4 mm |
| Impact resistance | IK04 |
| Operating Temperature (Min-Max) | -25-70 °C |
| Storage Temperature (Min-Max) | -40-70 °C |
| Type of voltage | AC |
| Direction of the electricity supply | From the top or bottom |
| Display of markings on the connection terminals | No |
| Colour | Grey |
| RAL number | 7035 |
| Halogen-free | Yes |
| Terminal Capacity (Min-Max) | 4-50 mm² |
| Connection type | Cable |
| Label Space/Print Area | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE IME EN.pdf | 17 Mbytes |
|
