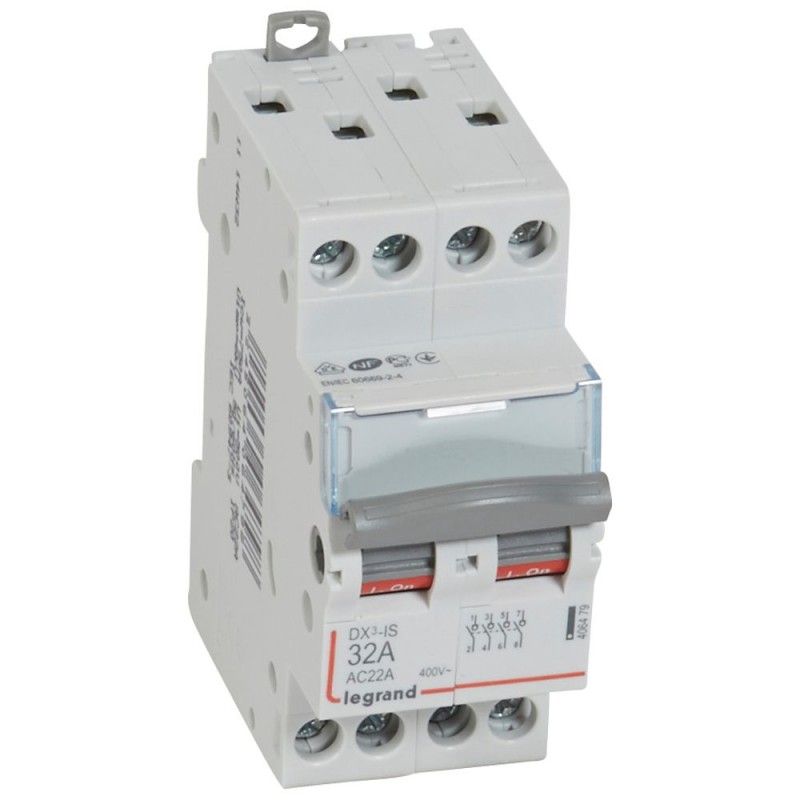

406479 IME *DX3 IS 4P 32A SWITCH
406479
IME
*DX3 IS 4P 32A SWITCH
DX³ -IS - 4P - 400V~ - 32A - 2 modules disconnect switch
Low-voltage industrial components > Switch disconnector
Home > IME
Brand new product in its original packaging covered by the warranties and certifications provided by IME
Best sellers
▲More info
▲| Running as a main switch | Yes |
|---|---|
| Operation as a maintenance/repair switch | No |
| Operation as a safety switch | Yes |
| Execution as an emergency stop device | No |
| Maximum Rated Operating Voltage Ue AC | 400 V |
| Permanent nominal current Iu | 32 A |
| Conditional Short-Circuit Current Rating Iq | 4500 kA |
| Number of poles | 4 |
| Optional motorized drive | No |
| Integrated motorized drive | No |
| Device construction | Fixed integrated technology for integrated device |
|---|---|
| Floor Mount | No |
| Suitable for 4-hole front mounting | No |
| Suitable for center front mounting | No |
| Suitable for distributor installation | Yes |
| Suitable for intermediate mounting | No |
| Execution of the actuator element | Handle |
| Interlockable | Yes |
| Main Current Circuit Connection Type | Threaded connection |
| Degree of protection (IP), front | IP20 |
| Feature Name | Feature Value |
|---|---|
| Version as safety switch (EF006985) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Max. rated operation voltage Ue AC (EF007355) | 400 V |
| Version as main switch (EF006981) | Yes |
| Interlockable (EF006281) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Version as emergency stop installation (EF006959) | No |
| Motor drive integrated (EF006697) | No |
| Type of control element (EF006976) | Toggle |
| Conditioned rated short-circuit current Iq (EF001444) | 4500 kA |
| Rated permanent current Iu (EF001389) | 32 A |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Motor drive optional (EF007386) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Degree of protection (IP), front side (EF003118) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE IME EN.pdf | 17 Mbytes |
|
| 406479 EN_406401.pdf | 471 Kbytes |
|
