IME406469 IME DX3 IS 3P 100A SWITCH

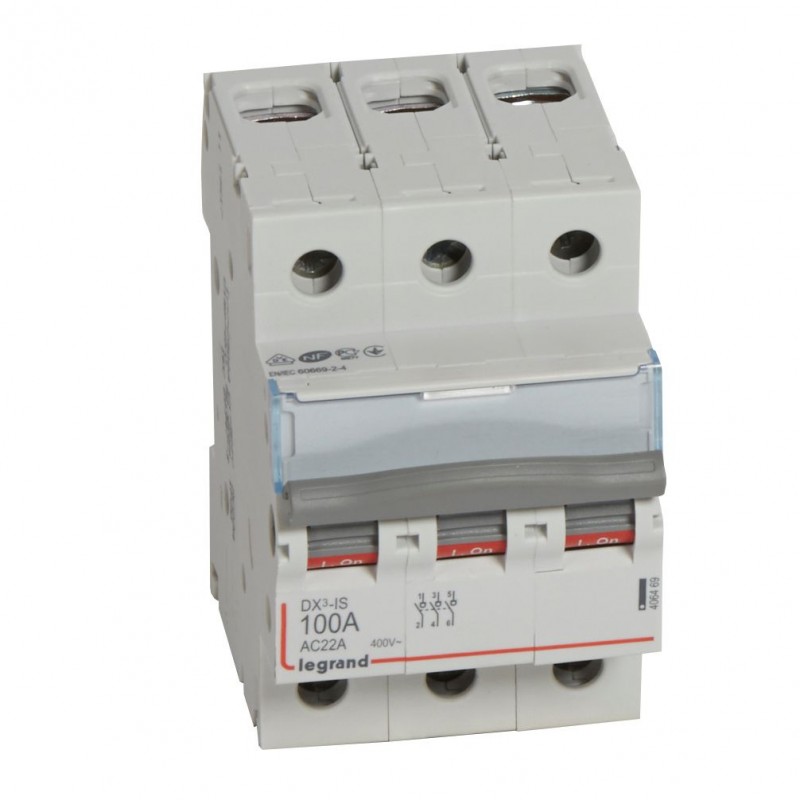

IME 406469 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

406469 IME DX3 IS 3P 100A SWITCH

Code: 406469

Manufacturer: IME

Description:

DX3 IS 3P 100A SWITCH
DX³ -IS - 3P - 400V~ - 100A - 3mod disconnect switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • IME

Brand new product in its original packaging covered by the warranties and certifications provided by IME

  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

ETIM for 406469 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueNo
Feature nameHeight (EF000040)
Feature value88.9 mm
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value400 V
Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameType of control element (EF006976)
Feature valueToggle
Feature nameConditioned rated short-circuit current Iq (EF001444)
Feature value4500 kA
Feature nameRated permanent current Iu (EF001389)
Feature value100 A
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameDepth (EF000049)
Feature value76.4 mm
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP20
Feature nameWidth (EF000008)
Feature value53.1 mm

DATASHEET - PDF

Title
Size
Type
406469 EN_406441.pdf
448 Kbytes
PDF CATALOGUE IME EN
17 Mbytes
