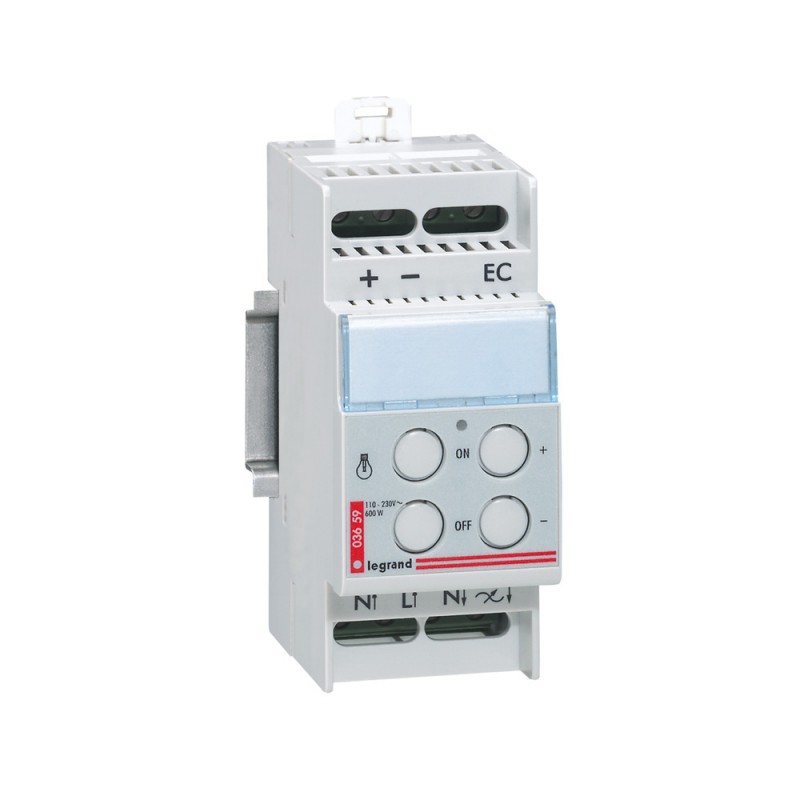

003659 IME LAMP REGULATOR. INCAND. 600W
003659
IME
LAMP REGULATOR. INCAND. 600W
Dimmer - for 230V incandescent/halogen lamps~
Light regulator for 230V~ incandescent/halogen lamps
Domestic switching devices > Dimmer
Home > IME
Brand new product in its original packaging covered by the warranties and certifications provided by IME
Best sellers
▲More info
▲| Type of mounting | Basic element, DRA (DIN rail adapter) |
|---|---|
| Type of operation | Push button |
| Dimmer as standard | No |
| Load Type | Resistive load |
| Input Extensions | No |
| Luminous value memory | Yes |
| Can be used with a button | Yes |
| Usable with motion detector | No |
| Usable with presence detector | No |
| Usable with timer | No |
| Usable with radio button | Yes |
| Usable with IR button | No |
| Attachment Type | Click fixation |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | No |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Colour | Grey |
| RAL number (similar) | 7035 |
| Transparent | No |
| Suitable for protection grade (IP) | IP20 |
| Nominal Voltage (Min-Max) | 110-230 V |
|---|---|
| Frequency (Min-Max) | 50-50 Hz |
| Control Voltage (Min-Max) | 110-230 V |
| Capacitive Load Power Rating (Min-Max) | 40-600 W |
| Connection Method | Screw-on terminal |
| Core Cross Section (Min-Max) | 1.5-2.5 mm² |
| Device width | 36 mm |
| Device height | 83 mm |
| Device Depth | 66.1 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Operating Temperature (Min-Max) | -5-40 °C |
| Storage Temperature (Min-Max) | -20-70 °C |
| Type of voltage | AC |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | Yes |
| Antibacterial treatment | No |
| Terminal Capacity (Min-Max) | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Connection type (EF000124) | Screwed terminal |
| Halogen free (EF000025) | No |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Type of fastening (EF002442) | Click in |
| Core cross section (EF007572) | 1.5 mm² |
| Control voltage (EF006144) | 110 V |
| Transparent (EF006243) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Applicable with infrared button (EF003908) | No |
| Applicable with presence indicator (EF003909) | No |
| Type of load (EF001508) | Resistive load |
| Applicable with movement sensor (EF003906) | No |
| Applicable with transmission button (EF003907) | Yes |
| Light value memory (EF003867) | Yes |
| Serial dimmer (EF003889) | No |
| Surface protection (EF000139) | Untreated |
| Frequency (EF000416) | 50 Hz |
| RAL-number (similar) (EF003882) | 7035 |
| Nominal voltage (EF005127) | 110 V |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device depth (EF008810) | 66.1 mm |
| Nominal power resistive load (EF012754) | 40 W |
| IFTTT support available (EF011072) | No |
| Device width (EF008808) | 36 mm |
| Applicable with time switch/timer (EF003911) | No |
| Assembly arrangement (EF000005) | Basic unit |
| Device height (EF008809) | 83 mm |
| Colour (EF000007) | Grey |
| Substation input (EF003876) | No |
| Applicable with button (EF003910) | Yes |
| Method of operation (EF000006) | Push button |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE IME EN.pdf | 17 Mbytes |
|
