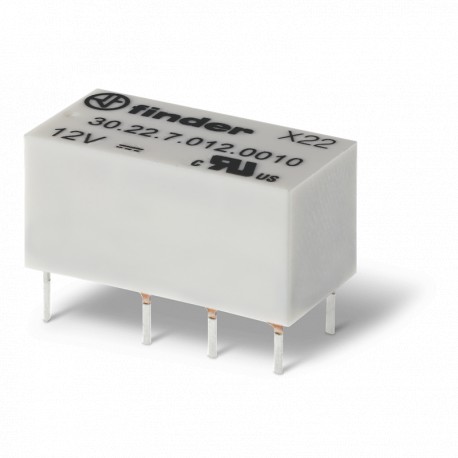

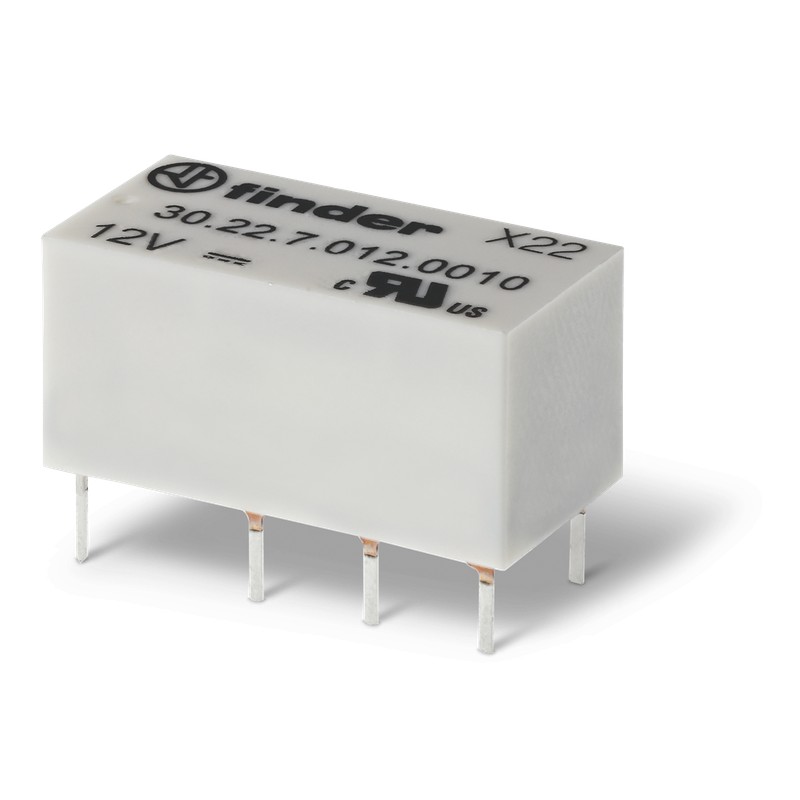

302270090020 FINDER 30 Series Subminiature DIL relays 2 A
302270090020
FINDER
20
30 Series - Subminiature DIL relays 2 A
SUBMINIATURE RELAY
Home > FINDER
Brand new product in its original packaging covered by the warranties and certifications provided by FINDER
Best sellers
▲More info
▲Subminiature DIL relays
- 2 Pole changeover contacts
- Low level switching capability
- Subminiature: - industry standard DIL package
- Sensitive DC coil: 200 mW
- Wash tight: RT III
- Alarm systems
- Automation control
- Car accessories
- Circuit boards for household equipment
- Coil winders
- Control systems
- Copiers
- Door and gate openers
- Electric and electronic toys and games
- Electronic circuit boards
- Elevators and lifts
- Heating systems and convectors
- Hi-Fi systems
- Hoists and cranes
- Industrial refrigerators
- Jacuzzis and hot tubs
- Medical and dentistry
- Musical instruments
- Office Automation
- Printers
- Projectors
- Safety devices
- Textile machines
- Toys
- Vending machines
| Feature Name | Feature Value |
|---|---|
| Material contact (EF007544) | Other copper alloys |
| Material of contact insert (EF008521) | Thermoplastic |
| Material of contact surface (EF004020) | Gold |
| Type of switch contact (EF003358) | Single contact |
| Drive, switching attitude (EF003356) | Mono stable |
| Drive, polarization (EF003355) | Polarity free |
| Voltage type for actuating (EF008242) | DC |
| Type of electric connection (EF003961) | PCB connection |
| Rated control supply voltage DC (EF003980) | 9 V |
| With LED indication (EF005950) | No |
| Complete with socket (EF003359) | No |
| With forced-guided contacts (EF003357) | No |
| Nominal current (EF000001) | 2 A |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as change-over contact (EF008257) | 2 |
| Width (EF000008) | 10.1 mm |
| Height (EF000040) | 11.4 mm |
| Depth (EF000049) | 20.3 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FINDER EN.pdf | 72 Mbytes |
|
| Download general catalog |
|
