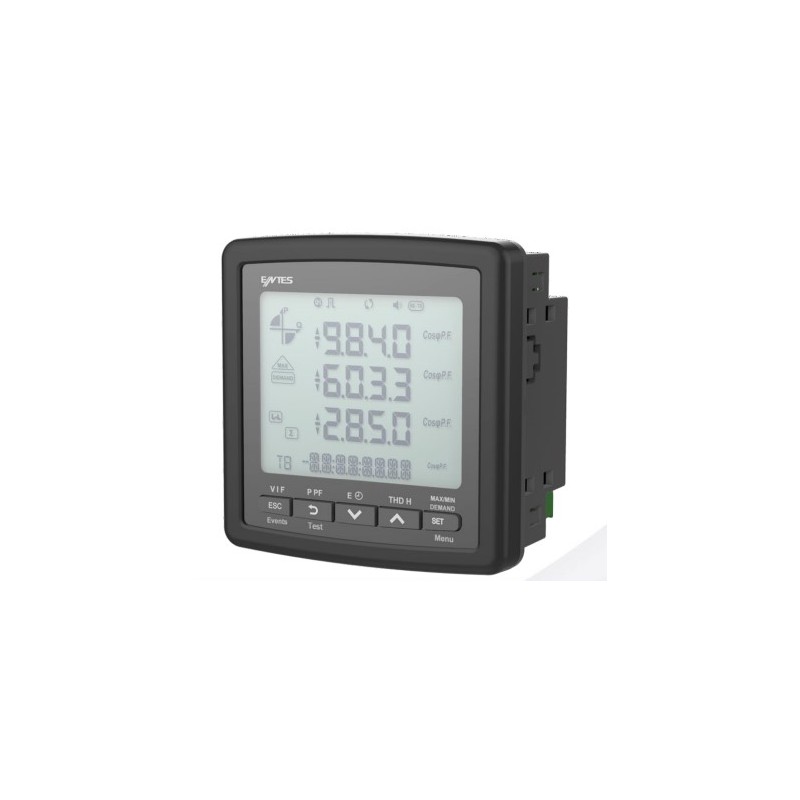

MPR-47S-0.5 40101037 ENTES Modular three-phase network analyzer with LCD panel communication. It is designed..
MPR-47S-0.5
40101037
ENTES
Modular three-phase network analyzer with LCD panel communication. It is designed to be used in the measurement and control of the electrical parameters of the network. The parameters are displayed on the LCD screen. It has an alarm contact. Wide operating voltage range. Measurement of THD, harmonics up to 51. 16 MB internal memory.
MEASURING ELECTRICAL EQUIPMENT - ENTES > Electrical measurement. Network analyser - ENTES
Brand new product in its original packaging covered by the warranties and certifications provided by ENTES
Best sellers
▲More info
▲| Field | Value |
|---|---|
| SUPPLY VOLTAGE | 45 - 265 V AC/DC 50-60 Hz |
| NETWORK TYPE | 3 phases / 4 wires (star), 3 phases / 3 wires (triangle) |
| PRECISION | 0.5% ± 1 digit in voltage and current. |
| VOLTAGE INPUT | 10- 400 V AC (L-N), 5-690 V AC (L-L), up to 999 Kv with voltage transformer. |
| POWER INPUT | 50 mA- 5.5 A, 50 Ma- 10 Ka with transformer |
| DIMENSIONS AND CONSUMPTION | 96x96x45 mm < 5 VA |
| I/O MODULES | Consult. Digital and analogue digital modules available. |
| COMMUNICATION | MODBUS (RS-485) |
| ACTIVE ENERGY MEASUREMENT | Class 0.5 |
| MEASUREMENT PARAMETERS |
|
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE ENTES EN.pdf | 11 Mbytes |
|
| Download general catalog |
|
