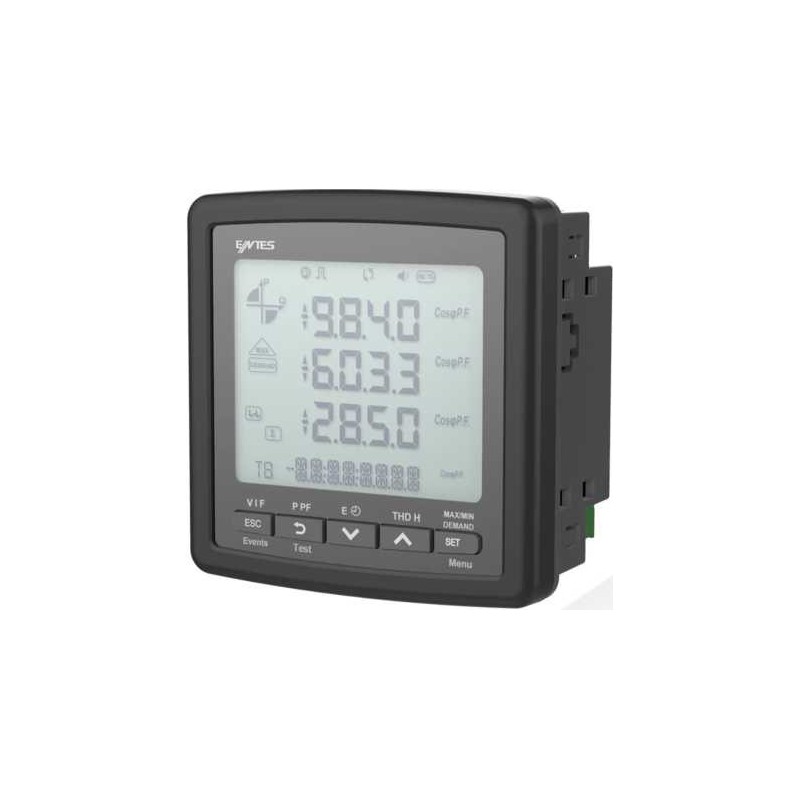

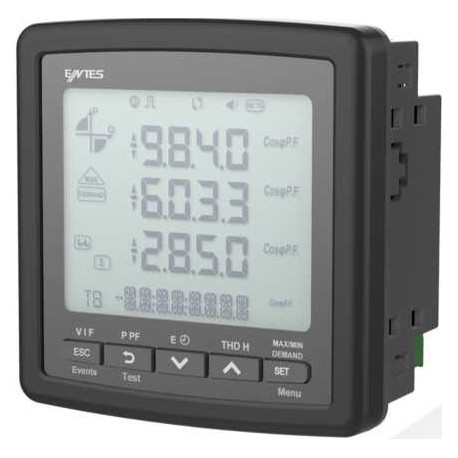

MPR-46S-L 40101025 ENTES Three-phase modular network analyzer with LCD panel communication
MPR-46S-L
40101025
ENTES
Three-phase modular network analyzer with LCD panel communication
ANALIZADOR D REDES TRIFÁSICO MODULAR CON COMUNICAIÓN DE PANEL LCD, Diseñado para ser usado en la medida y el control de parámetros eléctricos de red, Mide tensión de línea, de fase, promedio, frecuencia y corriente por fase y total , Potencia, activa, aparente y reactiva por fase y total, energía activa y reactiva por fase y total, Tasa de distorsión de armónicos de corriente
MEASURING ELECTRICAL EQUIPMENT - ENTES > Electrical measurement. Network analyser - ENTES
Brand new product in its original packaging covered by the warranties and certifications provided by ENTES
Best sellers
▲More info
▲TECHNICAL SPECIFICATIONS
POWER SUPPLY VOLTAGE | 45- 265 V AC / DC 50-60 Hz |
TYPE OF NETWORK | 3 phases / 4 wires (star), 3 phases / 3 wires (triangle) |
PRECISION | 0.5% ± 1 digit in voltage and current |
VOLTAGE INPUT | 10- 400 V AC (L-N), 5-690 V AC (L-L), up to 999 Kv with voltage transformer. |
CURRENT INPUT | 50 mA- 5.5 A, 50 Ma- 10 Ka with transformer |
DIMENSIONS AND CONSUMPTION | 96x96x45 mm < 5 VA |
I / O MODULES | Consult. Digital and analog digital modules available. |
COMMUNICATION | MODBUS (RS-485) |
MEASUREMENT PARAMETERS:
- Line voltage, phase voltage, average, frequency and current per phase and total.
- Active, apparent and reactive power by phase and total. Power factor.
- Active and reactive energy by phase and total.
- Demand values for phase current, total current and total active, reactive and apparent power.
- Harmonic current distortion THDI and voltage THDU.
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE ENTES EN.pdf | 11 Mbytes |
|
| Download general catalog |
|
