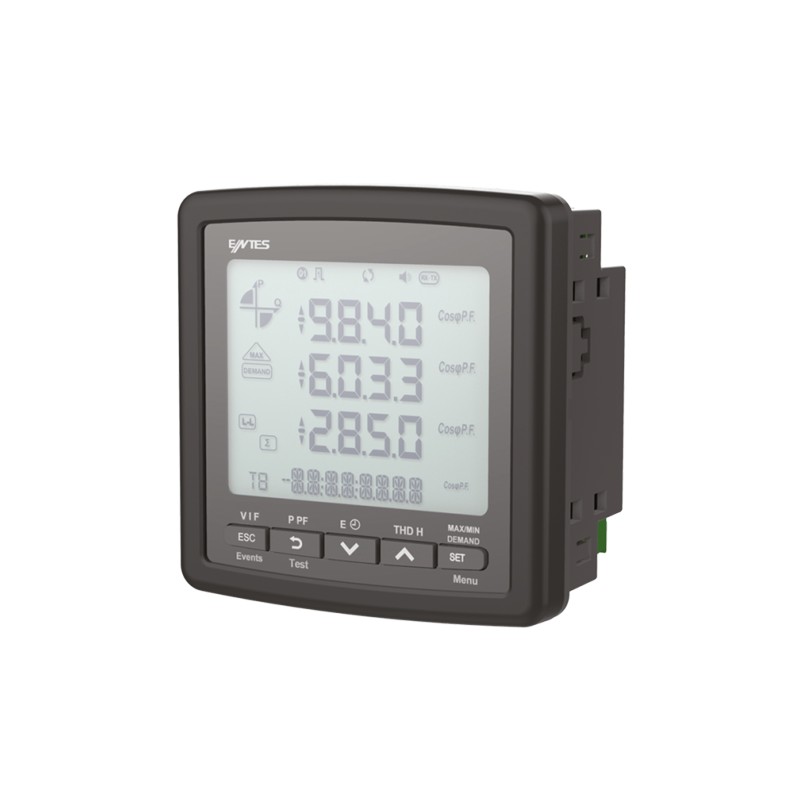

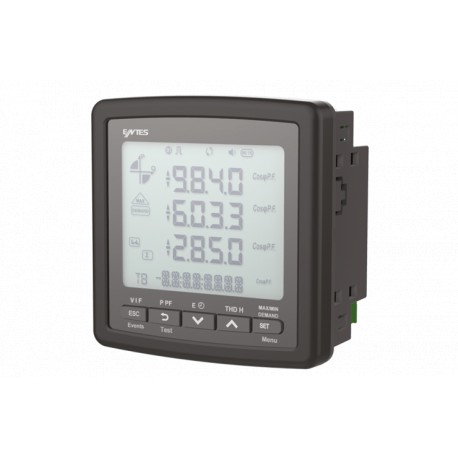

MPR-45 40101022 ENTES NETWORK ANALYZER three-PHASE MODULAR WITH LCD SCREEN, Designed to be used in the measu.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MPR-45 40101022 ENTES NETWORK ANALYZER three-PHASE MODULAR WITH LCD SCREEN, Designed to be used in the measu..

40101022

ENTES

Network Analyzer with LCD screen, 3 Phase, modular structure

ANALIZADOR DE REDES TRIFÁSICO MODULAR CON PANTALLA LCD, Diseñado para ser usado en la medida y el control de parámetros eléctricos de red., Mide tensión de línea, de fase, promedio, frecuencia y corriente por fase y total , Potencia, activa, aparente y reactiva por fase y total, energía activa y reactiva por fase y total,

More details


MEASURING ELECTRICAL EQUIPMENT - ENTES > Electrical measurement. Network analyser - ENTES

* Brand new product in its original packaging covered by the warranties and certifications provided by ENTES

Total price: $189.55
Unit price: $189.55

Quantity Price
1+$189.55
2+$186.03
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


SUPPLY VOLTAGE

45 - 265 V AC/DC 50-60 Hz

TYPE OF NETWORK

3-phase / 4-wire (wye), 3-phase / 3-wire (triangle)

ACCURACY

0.5% ± 1 digit voltage and current.

INPUT VOLTAGE

10 - 400 V AC (L-N), 10-690 V AC (L-L), up to 999 Kv with voltage transformer.

CURRENT INPUT

50 mA - 5.5 A, 50 Ma - 10 Ka with transformer
DIMENSIONS AND CONSUMPTION

96x96x45 mm < 5 VA

I/O MODULES

Consult

MEASUREMENT PARAMETERS:

  • Line voltage, phase, average, frequency and current per phase and total.
  • Active power, apparent and reactive phase and total. Power Factor.
  • Active and reactive energy per phase and total.
  • Values of demand for phase current, total current and power total active, reactive and apparent.

Datasheet - PDF

▲
Title: Size: Type:
Data sheet MPR-45 40101022 ENTES Network Analyzer with LCD screen, 3 Phase, modular structure 3 Mbytes Data sheet MPR-45 40101022 ENTES Network Analyzer with LCD screen, 3 Phase, modular structure
Download general catalog Download general catalog
