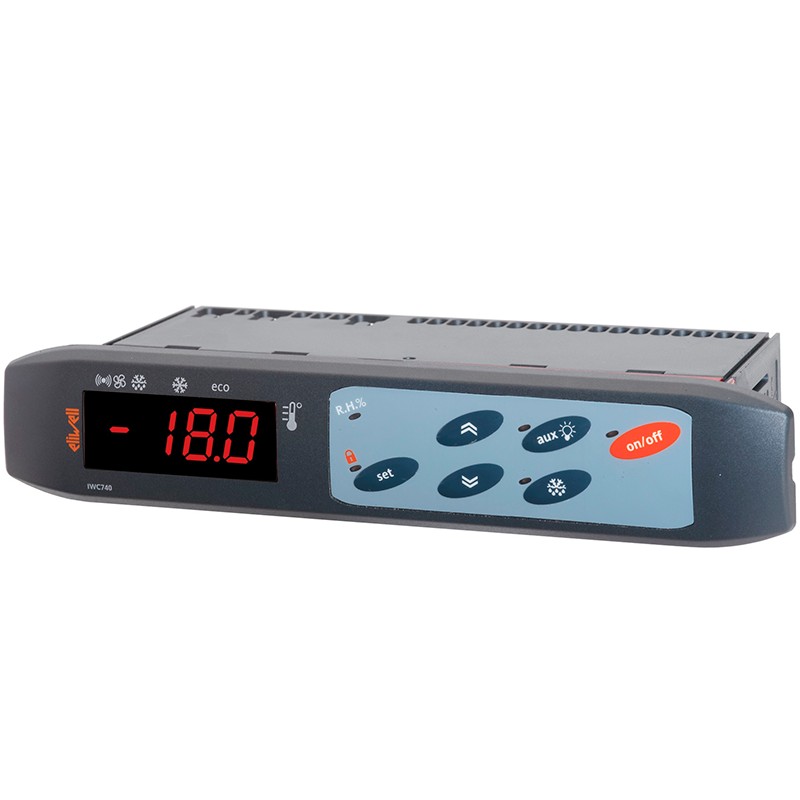

WC12YI0TED701 ELIWELL 720 SHORT Electronic controls for automation
WC12YI0TED701
ELIWELL
720 SHORT Electronic controls for automation
Home > ELIWELL
Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL
Best sellers
▲More info
▲ELECTRONIC CONTROL OF FORMAT EXTENDED TO VENTED UNITS
2 (IWC 720 ) or 3 (IWC 730) relays configurable as a compressor, defrosting, fan, alarm, light, on/off...
IWC 740: 4 relays configurable as a compressor, defrosting, fan, alarm, light, aux, on/off, etc
IWC 750: 5 relay
2 probe (second probe optional): thermostatic and final probe of defrosting
Probe NTC
Defrosting electric by temperature or time
Interval of defrosting adjustable by parameter
Times of protection, compressor as well as start/stop in case of failure
1 digital input configurable (set low, on/off, door switch, etc.)
Connection TTL for Copy Card and Televis model LX (need Bus Adapter)
Usage temperature: -5...55°C
Storage temperature:
-30...85°C
Installation: on panel, with mounting hole 150x31mm (+0,2/-0,1 mm)
OPERATION TWIN: the same instrument exploits its full potential by acting as two independent thermostats, normally used for the conservation of refrigerated food and frozen
- THE SHORT VERSION MOUNTED CONNECTIONS FASTON. AVAILABLE VERSION WITH TERMINAL STRIP SCREW AND PHOENIX (CHECK)
| IWC 720 short | IWC 730 short | IWC 730 LX long | IWC 740 LX | IWC 750 LX | |
|---|---|---|---|---|---|
| Display field | probe NTC: -50,0...110,0°C | probe NTC: -50,0...110,0°C | probe NTC: -50,0...110,0°C | probe NTC: -50,0...110,0°C | probe NTC: -50,0...110,0°C |
| Display | decimal point selectable with parameter 3 digits and a half + sign | decimal point selectable with parameter 3 digits and a half + sign | decimal point selectable with parameter 3 digits and a half + sign | decimal point selectable with parameter 3 digits and a half + sign | decimal point selectable with parameter 3 digits and a half + sign |
| Analog inputs | 2 inputs NTC | 2 inputs NTC | 2 inputs NTC | 2 inputs NTC | 2 inputs NTC |
| Digital inputs | 1 clean contact low voltage security | 1 clean contact low voltage security | 1 clean contact low voltage security | 1 clean contact low voltage security | 1 clean contact low voltage security |
| Serial ports | Port TTL for connection to Copy Card | Port TTL for connection to Copy Card | Port TTL for connection to Copy Card | Port TTL for connection to Copy Card | Port TTL for connection to Copy Card |
| Digital outputs |
|
|
|
|
|
| Depth | 45mm | 45mm | 69mm (no terminals) | - | - |
| Dimensions | 180 x 37 mm | 180 x 37 mm | 180 x 37 mm | 180 x 37 mm | 180 x 37 mm |
| Resolution | 1 or 0.1°C | 1 or 0.1°C | 1 or 0.1°C | 1 or 0.1°C | 1 or 0.1°C |
| Consumption | 6VA max | 6VA max | 6VA max | 6VA max | 6VA max |
| Power | 230V~ ±10% 50/60Hz | 230V~ ±10% 50/60Hz | 230V~ ±10% 50/60Hz | 230V~ ±10% 50/60Hz | 230V~ ±10% 50/60Hz |
Characteristics
| Reference | WC12YI0TED701 |
|---|---|
| Model | IWC 720 SHORT |
| Relays | 2 |
| Copy Card | If |
| HACCP | If |
| D. I | If |
| Alarm | If |
| Probes | 2 NTC |
| Digital Input | If |
| Format | Panel 180x37 |
| Supply voltage | 230VAC |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE ELIWELL EN.pdf | 21 Mbytes |
|
| 2: WC12YI0TED701 ELIWELL 720 SHORT | 92 Kbytes |
|
