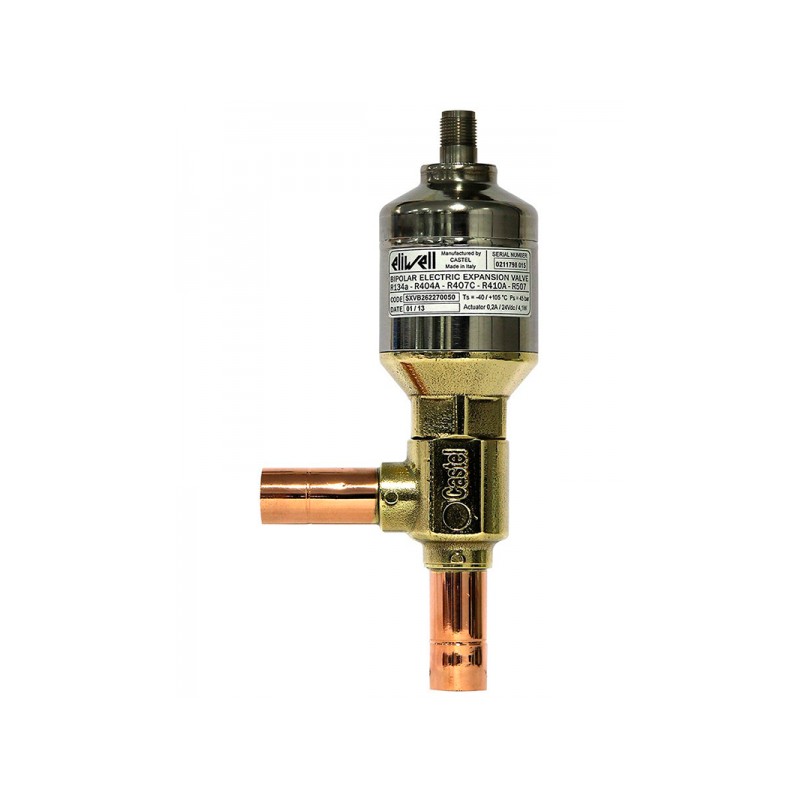

SXVB262270050 ELIWELL VEE STEP-STEP CONNECTIONS 5/8 BODY 2 Electronic controls for automation
SXVB262270050
ELIWELL
VEE STEP-STEP CONNECTIONS 5/8 BODY 2 Electronic controls for automation
SXVB BODY 2 5/8 WITH ORIF. 2,7
Home > ELIWELL
Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL
Best sellers
▲More info
▲EXPANSION VALVES ELECTRONIC STEP-STEP BIPOLAR
Solenoid valves are controlled by the driver Eliwell
XVD/V910.
Regulating the continuous flow of the coolant.
Power supply: 24V.
Optima injection of liquid refrigerant to the
evaporator increasing the efficiency.
Improves the control of overheating in the
different conditions of work.
Compatible with the vast majority of
refrigerants on the market (R744 low
request).
MOPD of 30 to 50 Bar.
Two-way operation.
IP67 and a connection cable detachable 3
meters.
Engine and body with the possibility of
disassembly.
195 steps, and testing of more than 500 million
of steps.
| Model | Type hole | Diameter of hole (mm) | Connections | Nominal capacity (KW) | |||||
|---|---|---|---|---|---|---|---|---|---|
| IN | OUT | R134a | R404A - R507 | R407C | R410A | ||||
| SXVB262270050 | 27 | 2,7 | 5/8" | 5/8" | 29,1 | 28,5 | 41,3 | 47,6 | |
| SXVB262330070 | 33 | 3,3 | 7/8” | 7/8” | 35,6 | 32,8 | 47,6 | 54 | |
| SXVB263360070 | 36 | 3,6 | 7/8” | 7/8” | 52 | 51 | 73,9 | 85,1 | |
| SXVB263400090 | 40 | 4,0 | 1-1/8” | 1-1/8” | 60,8 | 56 | 81,1 | 94,9 | |
The power ratings refer to:
- Evaporation temperature Tevap = +5°C
- Condensing temperature Tcond = +32°C
- Temperature of the liquid at valve inlet Tliq = +28°C
Characteristics
| Reference | SXVB262270050 |
|---|---|
| Model | SXVB WITH HOLE 27 |
| Gas | R22, R134a, R404A-R507, R407C, R410A |
| Options Gas | R22, R134a, R404A-R507, R407C, R410A |
| Hole | 27 |
