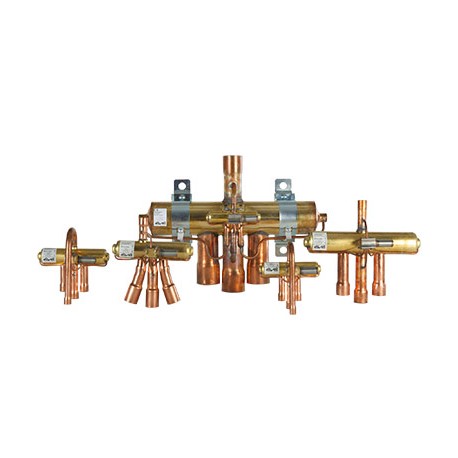

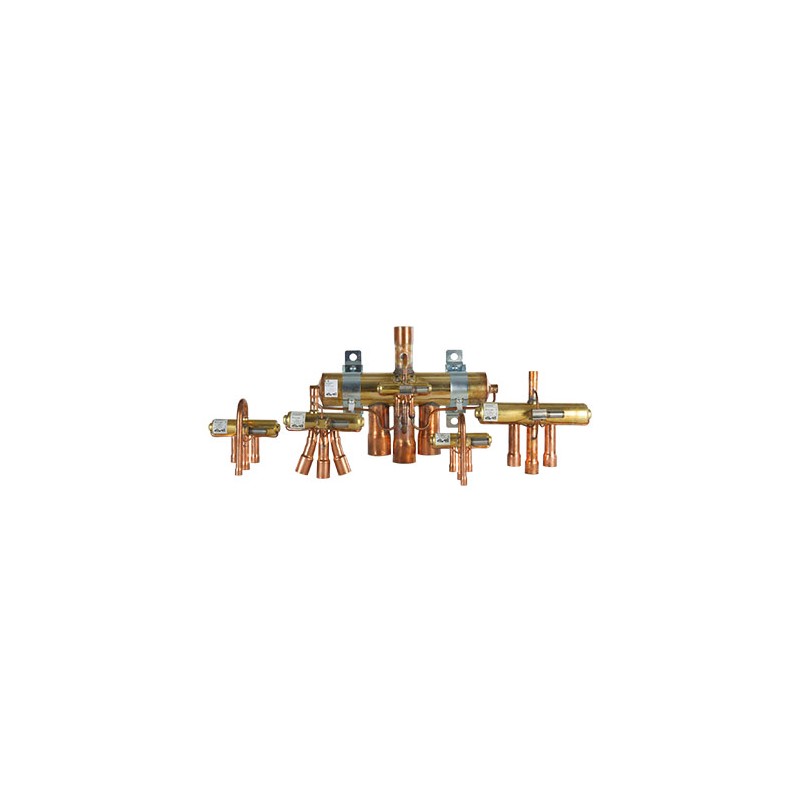

RV40AP28240000 ELIWELL VALVE RV 40 UST 1-3/4"- 1-1/2" View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

RV40AP28240000 ELIWELL VALVE RV 40 UST 1-3/4"- 1-1/2"

RV40AP28240000

ELIWELL

VALVE RV 40 UST 1-3/4"- 1-1/2"

More details


Home > ELIWELL

Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL

Total: $1,210.03
Unit price: $1,210.03
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Part Number
RV40AP28240000
Operating Temperature
135°C
Storage Temperature
-20\+55°C
Layout
A
Port(Ø)
41
Capacity 1 MIN/MAX kW (Us Ton) R407C
35,14 / 144,95
(9,99/ 41,21)
Capacity 1 MIN/MAX kW (Us Ton) R410A
35,16 / 163,25
(10/ 46,42)
Capacity 1 MIN/MAX kW (Us Ton) R404A
27,08 / 108,32
(7,7/ 30,8)
Capacity 1 MIN/MAX kW (Us Ton) R134a
27,03 / 108,36
(7,69/ 30,81)
Capacity 1 MIN/MAX kW (Us Ton) R290
36,92 / 147,71
(10,5/ 42)
Capacity 1 MIN/MAX kW (Us Ton) R32
37,97 / 179,58
(10,8/ 51,06)
Capacity 1 MIN/MAX kW (Us Ton) R452B
36,92 / 174,68
(10,5/ 49,67)
Capacity 1 MIN/MAX kW (Us Ton) R454B
33,4 / 155,09
(9,5/ 44,1)
Capacity 1 MIN/MAX kW (Us Ton) R454A
32,35 / 150,19
(9,2/ 42,7)
Capacity 1 MIN/MAX kW (Us Ton) R454C
29,89 / 138,76
(8,5/ 39,45)
Capacity 1 MIN/MAX kW (Us Ton) R455A
30,94 / 143,66
(8,8/ 40,85)
Capacity 1 MIN/MAX kW (Us Ton) R445A
27,57 / 110,53
(7,84/ 31,43)
Capacity 1 MIN/MAX kW (Us Ton) R1234ze
22,98 / 92,11
(6,53/ 26,19)
Capacity 1 MIN/MAX kW (Us Ton) R450A
24,33 / 97,52
(6,92/ 27,73)
Capacity 1 MIN/MAX kW (Us Ton) R1234yf
26,49 / 106,19
(7,53/ 30,19)
Capacity 1 MIN/MAX kW (Us Ton) R1233zd
24,87 / 99,69
(7,07/ 28,35)
Capacity 1 MIN/MAX kW (Us Ton) T1336zz
25,68 / 102,94
(7,3/ 29,27)
Capacity 2 MIN/MAX kW (Us Ton) R407C
38,2 / 157,55
(10,86/ 44,8)
Capacity 2 MIN/MAX kW (Us Ton) R410A
38,22 / 177,45
(10,87/ 50,45)
Capacity 2 MIN/MAX kW (Us Ton) R404A
29,43 / 117,74
(8,37/ 33,48)
Capacity 2 MIN/MAX kW (Us Ton) R134a
29,38 / 117,78
(8,35/ 33,49)
Capacity 2 MIN/MAX kW (Us Ton) R290
40,13 / 160,56
(11,41/ 45,65)
Capacity 2 MIN/MAX kW (Us Ton) R32
41,27 / 195,19
(11,74/ 55,5)
Capacity 2 MIN/MAX kW (Us Ton) R452B
40,13 / 189,87
(11,41/ 53,99)
Capacity 2 MIN/MAX kW (Us Ton) R454B
36,31 / 168,57
(10,32/ 47,93)
Capacity 2 MIN/MAX kW (Us Ton) R454A
35,16 / 163,25
(10/ 46,42)
Capacity 2 MIN/MAX kW (Us Ton) R454C
32,48 / 150,83
(9,24/ 42,89)
Capacity 2 MIN/MAX kW (Us Ton) R455A
33,63 / 156,15
(9,56/ 44,4)
Capacity 2 MIN/MAX kW (Us Ton) R445A
29,97 / 120,14
(8,52/ 34,16)
Capacity 2 MIN/MAX kW (Us Ton) R1234ze
24,97 / 100,12
(7,1/ 28,47)
Capacity 2 MIN/MAX kW (Us Ton) R450A
26,44 / 106
(7,52/ 30,14)
Capacity 2 MIN/MAX kW (Us Ton) R1234yf
28,79 / 115,43
(8,19/ 32,82)
Capacity 2 MIN/MAX kW (Us Ton) R1233zd
27,03 / 108,36
(7,69/ 30,81)
Capacity 2 MIN/MAX kW (Us Ton) T1336zz
27,91 / 111,89
(7,94/ 31,82)
Weight (g) Net
7250
Width (L) Net
422
Height (Ht) Net
175
Depth (P) Net
304
Weight (g) Packaging
8750
Width (L) Packaging
466
Height (Ht) Packaging
221
Depth (P) Packaging
366
Master Carton
1
Weight (g) master Packaging
8750

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE ELIWELL EN.pdf 21 Mbytes
RV40AP28240000 RV40AP28240000 EN_RV06AD12080000.pdf 517 Kbytes RV40AP28240000 RV40AP28240000 EN_RV06AD12080000.pdf
Download general catalog Download general catalog
