> ELIWELL>RV20AP20160000 ELIWELL VALVE RV 20 UST 1-1/4"-1"
ANUNCIAR
Previous Product Next Product

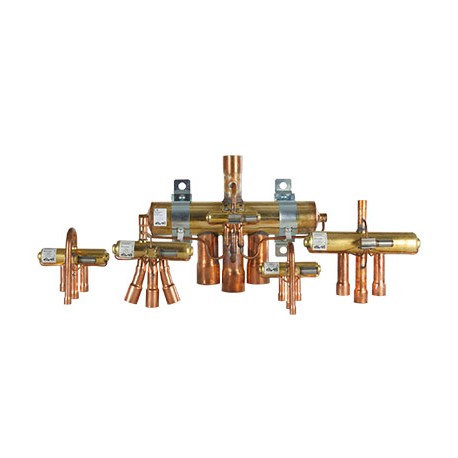

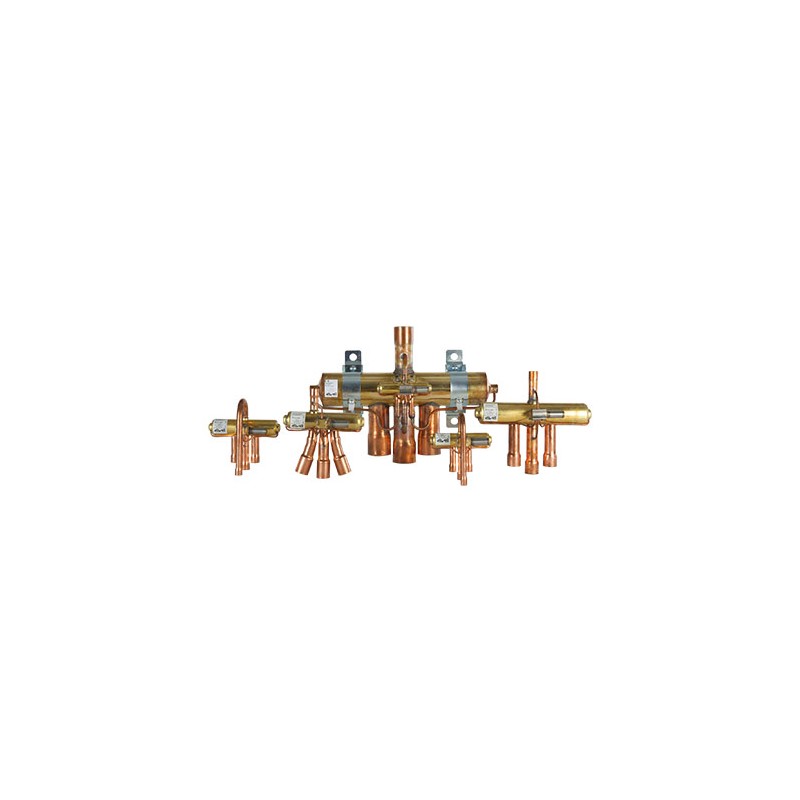

RV20AP20160000 ELIWELL VALVE RV 20 UST 1-1/4"-1" View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

RV20AP20160000 ELIWELL VALVE RV 20 UST 1-1/4"-1"

RV20AP20160000

ELIWELL

VALVE RV 20 UST 1-1/4"-1"

REV. VALVE 20 UST 1-1/4 - 1

More details


Home > ELIWELL

Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL

Total: $676.38
Unit price: $676.38
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Part Number
RV20AP20160000
Operating Temperature
135°C
Storage Temperature
-20\+55°C
Layout
A
Port(Ø)
34,6
Capacity 1 MIN/MAX kW (Us Ton) R407C
17,56 / 72,48
(4,99/ 20,61)
Capacity 1 MIN/MAX kW (Us Ton) R410A
17,59 / 81,64
(5/ 23,21)
Capacity 1 MIN/MAX kW (Us Ton) R404A
13,72 / 54,16
(3,9/ 15,4)
Capacity 1 MIN/MAX kW (Us Ton) R134a
13,69 / 54,19
(3,89/ 15,41)
Capacity 1 MIN/MAX kW (Us Ton) R290
18,47 / 73,86
(5,25/ 21)
Capacity 1 MIN/MAX kW (Us Ton) R32
19 / 89,8
(5,4/ 25,53)
Capacity 1 MIN/MAX kW (Us Ton) R452B
18,47 / 87,35
(5,25/ 24,84)
Capacity 1 MIN/MAX kW (Us Ton) R454B
16,71 / 77,56
(4,75/ 22,05)
Capacity 1 MIN/MAX kW (Us Ton) R454A
16,18 / 75,11
(4,6/ 21,36)
Capacity 1 MIN/MAX kW (Us Ton) R454C
14,95 / 69,39
(4,25/ 19,73)
Capacity 1 MIN/MAX kW (Us Ton) R455A
15,48 / 71,84
(4,4/ 20,43)
Capacity 1 MIN/MAX kW (Us Ton) R445A
13,96 / 55,27
(3,97/ 15,72)
Capacity 1 MIN/MAX kW (Us Ton) R1234ze
11,64 / 46,06
(3,31/ 13,1)
Capacity 1 MIN/MAX kW (Us Ton) R450A
12,32 / 48,77
(3,5/ 13,87)
Capacity 1 MIN/MAX kW (Us Ton) R1234yf
13,42 / 53,11
(3,81/ 15,1)
Capacity 1 MIN/MAX kW (Us Ton) R1233zd
12,59 / 49,85
(3,58/ 14,18)
Capacity 1 MIN/MAX kW (Us Ton) T1336zz
13,01 / 51,48
(3,7/ 14,64)
Capacity 2 MIN/MAX kW (Us Ton) R407C
19,09 / 78,78
(5,43/ 22,4)
Capacity 2 MIN/MAX kW (Us Ton) R410A
19,12 / 88,74
(5,44/ 25,23)
Capacity 2 MIN/MAX kW (Us Ton) R404A
14,91 / 58,87
(4,24/ 16,74)
Capacity 2 MIN/MAX kW (Us Ton) R134a
14,88 / 58,9
(4,23/ 16,75)
Capacity 2 MIN/MAX kW (Us Ton) R290
20,08 / 80,28
(5,71/ 22,83)
Capacity 2 MIN/MAX kW (Us Ton) R32
20,65 / 97,61
(5,87/ 27,75)
Capacity 2 MIN/MAX kW (Us Ton) R452B
20,08 / 94,95
(5,71/ 27)
Capacity 2 MIN/MAX kW (Us Ton) R454B
18,16 / 84,3
(5,16/ 23,97)
Capacity 2 MIN/MAX kW (Us Ton) R454A
17,59 / 81,64
(5/ 23,21)
Capacity 2 MIN/MAX kW (Us Ton) R454C
16,25 / 75,43
(4,62/ 21,45)
Capacity 2 MIN/MAX kW (Us Ton) R455A
16,83 / 78,09
(4,78/ 22,2)
Capacity 2 MIN/MAX kW (Us Ton) R445A
15,18 / 60,08
(4,32/ 17,08)
Capacity 2 MIN/MAX kW (Us Ton) R1234ze
12,65 / 50,07
(3,6/ 14,24)
Capacity 2 MIN/MAX kW (Us Ton) R450A
13,39 / 53,01
(3,81/ 15,07)
Capacity 2 MIN/MAX kW (Us Ton) R1234yf
14,58 / 57,72
(4,15/ 16,41)
Capacity 2 MIN/MAX kW (Us Ton) R1233zd
13,69 / 54,19
(3,89/ 15,41)
Capacity 2 MIN/MAX kW (Us Ton) T1336zz
14,14 / 55,96
(4,02/ 15,91)
Weight (g) Net
3350
Width (L) Net
337
Height (Ht) Net
165
Depth (P) Net
242
Weight (g) Packaging
4550
Width (L) Packaging
381
Height (Ht) Packaging
211
Depth (P) Packaging
293
Master Carton
1
Weight (g) master Packaging
4550

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE ELIWELL EN.pdf 21 Mbytes
RV20AP20160000 RV20AP20160000 EN_RVCKD001200000.pdf 540 Kbytes RV20AP20160000 RV20AP20160000 EN_RVCKD001200000.pdf
