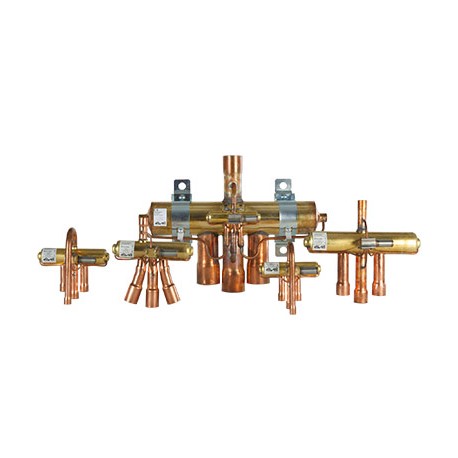

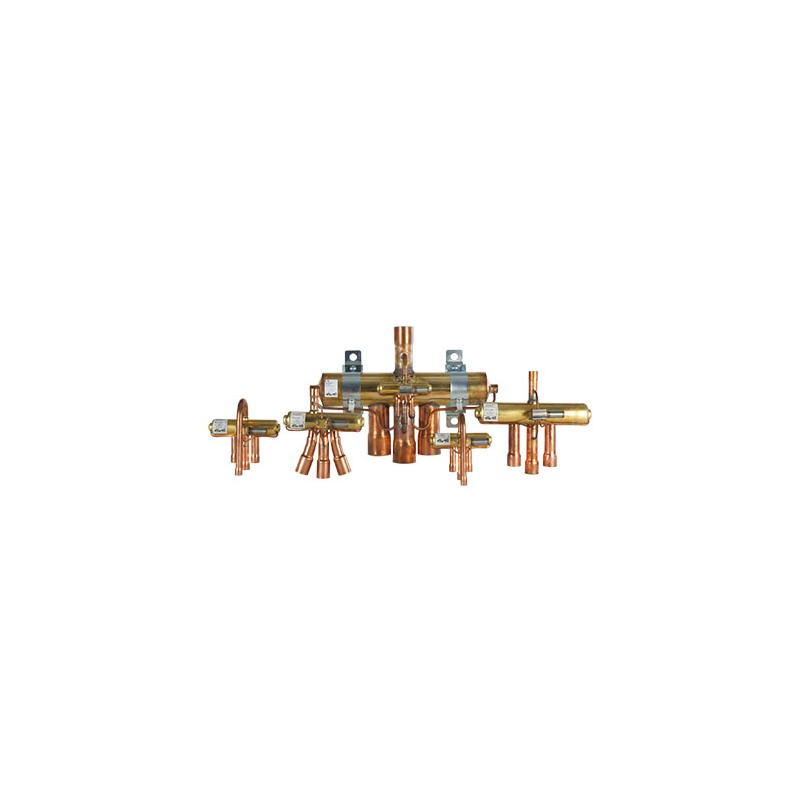

RV15AD18140000 ELIWELL VALVE RV 15 UST 1-1/8"-7/8" View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

RV15AD18140000 ELIWELL VALVE RV 15 UST 1-1/8"-7/8"

RV15AD18140000

ELIWELL

VALVE RV 15 UST 1-1/8"-7/8"

REV. VALVE 15 UST 1-1/8 - 7/8

More details


Home > ELIWELL

Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL

Total: $495.26
Unit price: $495.26
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Part Number
RV15AD18140000
Operating Temperature
135°C
Storage Temperature
-20\+55°C
Layout
A
Port(Ø)
23
Capacity 1 MIN/MAX kW (Us Ton) R407C
15,81 / 54,54
(4,5/ 15,51)
Capacity 1 MIN/MAX kW (Us Ton) R410A
15,81 / 61,58
(4,5/ 17,51)
Capacity 1 MIN/MAX kW (Us Ton) R404A
12,31 / 40,8
(3,5/ 11,6)
Capacity 1 MIN/MAX kW (Us Ton) R134a
12,28 / 40,83
(3,49/ 11,61)
Capacity 1 MIN/MAX kW (Us Ton) R290
16,6 / 55,4
(4,72/ 15,75)
Capacity 1 MIN/MAX kW (Us Ton) R32
17,07 / 67,74
(4,85/ 19,26)
Capacity 1 MIN/MAX kW (Us Ton) R452B
16,6 / 65,89
(4,72/ 18,73)
Capacity 1 MIN/MAX kW (Us Ton) R454B
15,02 / 58,5
(4,27/ 16,63)
Capacity 1 MIN/MAX kW (Us Ton) R454A
14,55 / 56,65
(4,14/ 16,11)
Capacity 1 MIN/MAX kW (Us Ton) R454C
13,44 / 52,34
(3,82/ 14,88)
Capacity 1 MIN/MAX kW (Us Ton) R455A
13,91 / 54,19
(3,96/ 15,41)
Capacity 1 MIN/MAX kW (Us Ton) R445A
12,53 / 41,65
(3,56/ 11,84)
Capacity 1 MIN/MAX kW (Us Ton) R1234ze
10,44 / 34,71
(2,97/ 9,87)
Capacity 1 MIN/MAX kW (Us Ton) R450A
11,05 / 36,75
(3,14/ 10,45)
Capacity 1 MIN/MAX kW (Us Ton) R1234yf
12,03 / 40,01
(3,42/ 11,38)
Capacity 1 MIN/MAX kW (Us Ton) R1233zd
11,3 / 37,56
(3,21/ 10,68)
Capacity 1 MIN/MAX kW (Us Ton) T1336zz
11,67 / 38,79
(3,32/ 11,03)
Capacity 2 MIN/MAX kW (Us Ton) R407C
17,18 / 59,28
(4,89/ 16,86)
Capacity 2 MIN/MAX kW (Us Ton) R410A
17,18 / 66,93
(4,89/ 19,03)
Capacity 2 MIN/MAX kW (Us Ton) R404A
13,38 / 44,35
(3,8/ 12,61)
Capacity 2 MIN/MAX kW (Us Ton) R134a
13,35 / 44,38
(3,8/ 12,62)
Capacity 2 MIN/MAX kW (Us Ton) R290
18,04 / 60,22
(5,13/ 17,12)
Capacity 2 MIN/MAX kW (Us Ton) R32
18,56 / 73,63
(5,28/ 20,93)
Capacity 2 MIN/MAX kW (Us Ton) R452B
18,04 / 71,62
(5,13/ 20,36)
Capacity 2 MIN/MAX kW (Us Ton) R454B
16,33 / 63,59
(4,64/ 18,08)
Capacity 2 MIN/MAX kW (Us Ton) R454A
15,81 / 61,58
(4,5/ 17,51)
Capacity 2 MIN/MAX kW (Us Ton) R454C
14,61 / 56,89
(4,15/ 16,18)
Capacity 2 MIN/MAX kW (Us Ton) R455A
15,12 / 58,9
(4,3/ 16,75)
Capacity 2 MIN/MAX kW (Us Ton) R445A
13,61 / 45,27
(3,87/ 12,87)
Capacity 2 MIN/MAX kW (Us Ton) R1234ze
11,35 / 37,72
(3,23/ 10,73)
Capacity 2 MIN/MAX kW (Us Ton) R450A
12,01 / 39,94
(3,42/ 11,36)
Capacity 2 MIN/MAX kW (Us Ton) R1234yf
13,08 / 43,49
(3,72/ 12,37)
Capacity 2 MIN/MAX kW (Us Ton) R1233zd
12,28 / 40,83
(3,49/ 11,61)
Capacity 2 MIN/MAX kW (Us Ton) T1336zz
12,68 / 42,16
(3,61/ 11,99)
Weight (g) Net
1850
Width (L) Net
235
Height (Ht) Net
63
Depth (P) Net
200
Weight (g) Packaging
2150
Width (L) Packaging
270
Height (Ht) Packaging
110
Depth (P) Packaging
230
Master Carton
7
Weight (g) master Packaging
15990

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE ELIWELL EN.pdf 21 Mbytes
RV15AD18140000 RV15AD18140000 EN_RVCKD001200000.pdf 540 Kbytes RV15AD18140000 RV15AD18140000 EN_RVCKD001200000.pdf
