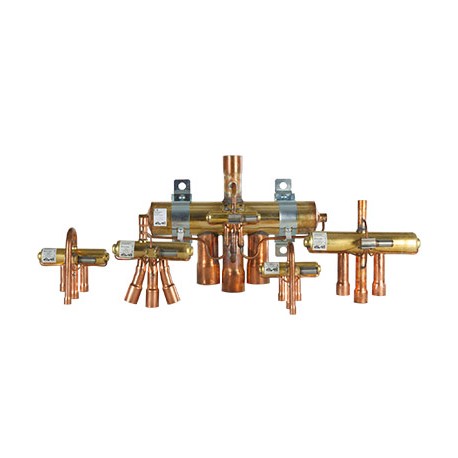

RV10AD181400S0 ELIWELL VALVE RV 10 UST 1-1/8 7/8 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

RV10AD181400S0 ELIWELL VALVE RV 10 UST 1-1/8 7/8

RV10AD181400S0

ELIWELL

VALVE RV 10 UST 1-1/8 - 7/8

More details


Home > ELIWELL

Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL

Total: $221.64
Unit price: $221.64
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Part Number
RV10AD181400S0
Operating Temperature
135°C
Storage Temperature
-20\+55°C
Layout
A
Port(Ø)
19
Capacity 1 MIN/MAX kW (Us Ton) R407C
17,21 / 37,67
(4,89/ 10,71)
Capacity 1 MIN/MAX kW (Us Ton) R410A
19,71 / 47,51
(5,6/ 13,51)
Capacity 1 MIN/MAX kW (Us Ton) R404A
14,41 / 32,36
(4,1/ 9,2)
Capacity 1 MIN/MAX kW (Us Ton) R134a
14,41 / 32,36
(4,1/ 9,2)
Capacity 1 MIN/MAX kW (Us Ton) R290
16,62 / 41,36
(4,73/ 11,76)
Capacity 1 MIN/MAX kW (Us Ton) R32
21,29 / 52,26
(6,05/ 14,86)
Capacity 1 MIN/MAX kW (Us Ton) R452B
20,7 / 50,84
(5,88/ 14,45)
Capacity 1 MIN/MAX kW (Us Ton) R454B
18,72 / 45,13
(5,32/ 12,83)
Capacity 1 MIN/MAX kW (Us Ton) R454A
18,13 / 43,71
(5,16/ 12,43)
Capacity 1 MIN/MAX kW (Us Ton) R454C
16,75 / 40,38
(4,76/ 11,48)
Capacity 1 MIN/MAX kW (Us Ton) R455A
17,34 / 41,81
(4,93/ 11,89)
Capacity 1 MIN/MAX kW (Us Ton) R445A
14,7 / 33,01
(4,18/ 9,39)
Capacity 1 MIN/MAX kW (Us Ton) R1234ze
12,25 / 27,51
(3,48/ 7,82)
Capacity 1 MIN/MAX kW (Us Ton) R450A
12,97 / 29,12
(3,69/ 8,28)
Capacity 1 MIN/MAX kW (Us Ton) R1234yf
14,12 / 31,71
(4,02/ 9,02)
Capacity 1 MIN/MAX kW (Us Ton) R1233zd
13,26 / 29,77
(3,77/ 8,46)
Capacity 1 MIN/MAX kW (Us Ton) T1336zz
13,69 / 30,74
(3,89/ 8,74)
Capacity 2 MIN/MAX kW (Us Ton) R407C
18,71 / 40,95
(5,32/ 11,64)
Capacity 2 MIN/MAX kW (Us Ton) R410A
21,42 / 51,64
(6,09/ 14,68)
Capacity 2 MIN/MAX kW (Us Ton) R404A
15,66 / 35,17
(4,46/ 10)
Capacity 2 MIN/MAX kW (Us Ton) R134a
15,66 / 35,17
(4,45/ 10)
Capacity 2 MIN/MAX kW (Us Ton) R290
18,07 / 44,96
(5,14/ 12,78)
Capacity 2 MIN/MAX kW (Us Ton) R32
23,14 / 56,81
(6,58/ 16,15)
Capacity 2 MIN/MAX kW (Us Ton) R452B
22,5 / 55,26
(6,4/ 15,71)
Capacity 2 MIN/MAX kW (Us Ton) R454B
20,35 / 49,06
(5,79/ 13,95)
Capacity 2 MIN/MAX kW (Us Ton) R454A
19,71 / 47,51
(5,6/ 13,51)
Capacity 2 MIN/MAX kW (Us Ton) R454C
18,21 / 43,9
(5,18/ 12,48)
Capacity 2 MIN/MAX kW (Us Ton) R455A
18,85 / 45,44
(5,36/ 12,92)
Capacity 2 MIN/MAX kW (Us Ton) R445A
15,98 / 35,88
(4,54/ 10,2)
Capacity 2 MIN/MAX kW (Us Ton) R1234ze
13,31 / 29,9
(3,79/ 8,5)
Capacity 2 MIN/MAX kW (Us Ton) R450A
14,1 / 31,66
(4,01/ 9)
Capacity 2 MIN/MAX kW (Us Ton) R1234yf
15,35 / 34,47
(4,36/ 9,8)
Capacity 2 MIN/MAX kW (Us Ton) R1233zd
14,41 / 32,36
(4,1/ 9,2)
Capacity 2 MIN/MAX kW (Us Ton) T1336zz
14,88 / 33,42
(4,23/ 9,5)
Weight (g) Net
1230
Width (L) Net
212
Height (Ht) Net
63
Depth (P) Net
180
Weight (g) Packaging
1500
Width (L) Packaging
246
Height (Ht) Packaging
110
Depth (P) Packaging
210
Master Carton
8
Weight (g) master Packaging
12940

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE ELIWELL EN.pdf 21 Mbytes
RV10AD181400S0 RV10AD181400S0 EN_RV06AD12080000.pdf 517 Kbytes RV10AD181400S0 RV10AD181400S0 EN_RV06AD12080000.pdf
Download general catalog Download general catalog
