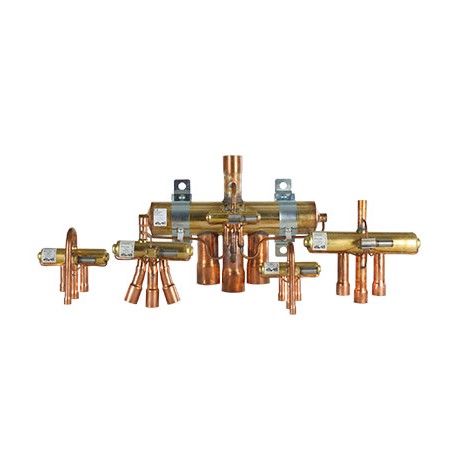

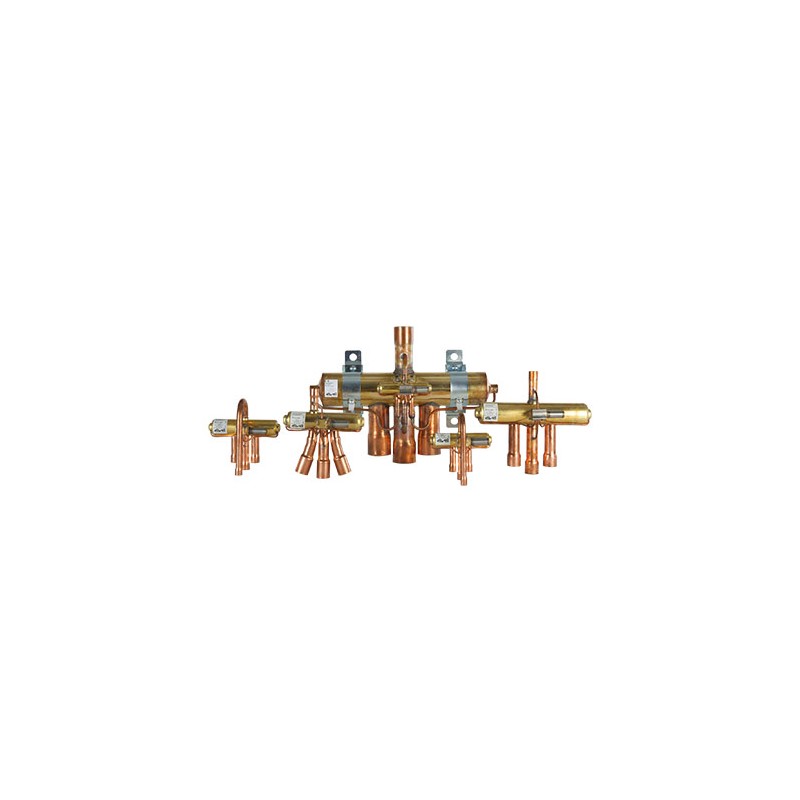

RV10AD141200S0 ELIWELL VALVE RV 10 UST 7/8"-3/4" View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

RV10AD141200S0 ELIWELL VALVE RV 10 UST 7/8"-3/4"

RV10AD141200S0

ELIWELL

VALVE RV 10 UST 7/8"-3/4"

REV. VALVE 10 UST 7/8 - 3/4

More details


Home > ELIWELL

Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL

Total: $221.00
Unit price: $221.00
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Part Number
RV10AD141200S0
Operating Temperature
135°C
Storage Temperature
-20\+55°C
Layout
A
Port(Ø)
19
Capacity 1 MIN/MAX kW (Us Ton) R407C
11,22 / 33,11
(3,19/ 9,41)
Capacity 1 MIN/MAX kW (Us Ton) R410A
13,01 / 41,88
(3,7/ 11,91)
Capacity 1 MIN/MAX kW (Us Ton) R404A
9,5 / 26,05
(2,7/ 7,41)
Capacity 1 MIN/MAX kW (Us Ton) R134a
9,82 / 26,05
(2,79/ 7,41)
Capacity 1 MIN/MAX kW (Us Ton) R290
11,08 / 36,56
(3,15/ 10,4)
Capacity 1 MIN/MAX kW (Us Ton) R32
14,05 / 46,07
(4/ 13,1)
Capacity 1 MIN/MAX kW (Us Ton) R452B
13,66 / 44,81
(3,88/ 12,74)
Capacity 1 MIN/MAX kW (Us Ton) R454B
12,36 / 39,79
(3,51/ 11,31)
Capacity 1 MIN/MAX kW (Us Ton) R454A
11,97 / 38,53
(3,4/ 10,96)
Capacity 1 MIN/MAX kW (Us Ton) R454C
11,06 / 35,6
(3,14/ 10,12)
Capacity 1 MIN/MAX kW (Us Ton) R455A
11,45 / 36,85
(3,26/ 10,48)
Capacity 1 MIN/MAX kW (Us Ton) R445A
10,02 / 26,57
(2,85/ 7,56)
Capacity 1 MIN/MAX kW (Us Ton) R1234ze
8,35 / 22,14
(2,37/ 6,3)
Capacity 1 MIN/MAX kW (Us Ton) R450A
8,84 / 23,45
(2,51/ 6,67)
Capacity 1 MIN/MAX kW (Us Ton) R1234yf
9,62 / 25,53
(2,74/ 7,26)
Capacity 1 MIN/MAX kW (Us Ton) R1233zd
9,03 / 23,97
(2,57/ 6,81)
Capacity 1 MIN/MAX kW (Us Ton) T1336zz
9,33 / 24,75
(2,65/ 7,04)
Capacity 2 MIN/MAX kW (Us Ton) R407C
12,2 / 35,99
(3,47/ 10,23)
Capacity 2 MIN/MAX kW (Us Ton) R410A
14,14 / 45,52
(4,02/ 12,94)
Capacity 2 MIN/MAX kW (Us Ton) R404A
10,33 / 28,32
(2,94/ 8,05)
Capacity 2 MIN/MAX kW (Us Ton) R134a
10,67 / 28,32
(3,03/ 8,05)
Capacity 2 MIN/MAX kW (Us Ton) R290
12,04 / 39,74
(3,42/ 11,3)
Capacity 2 MIN/MAX kW (Us Ton) R32
15,27 / 50,07
(4,34/ 14,24)
Capacity 2 MIN/MAX kW (Us Ton) R452B
14,85 / 48,71
(4,22/ 13,85)
Capacity 2 MIN/MAX kW (Us Ton) R454B
13,43 / 43,25
(3,82/ 12,3)
Capacity 2 MIN/MAX kW (Us Ton) R454A
13,01 / 41,88
(3,7/ 11,91)
Capacity 2 MIN/MAX kW (Us Ton) R454C
12,02 / 38,69
(3,42/ 11)
Capacity 2 MIN/MAX kW (Us Ton) R455A
12,44 / 40,06
(3,54/ 11,39)
Capacity 2 MIN/MAX kW (Us Ton) R445A
10,89 / 28,88
(3,1/ 8,21)
Capacity 2 MIN/MAX kW (Us Ton) R1234ze
9,07 / 24,07
(2,58/ 6,84)
Capacity 2 MIN/MAX kW (Us Ton) R450A
9,61 / 25,48
(2,73/ 7,25)
Capacity 2 MIN/MAX kW (Us Ton) R1234yf
10,46 / 27,75
(2,97/ 7,89)
Capacity 2 MIN/MAX kW (Us Ton) R1233zd
9,82 / 26,05
(2,79/ 7,41)
Capacity 2 MIN/MAX kW (Us Ton) T1336zz
10,14 / 26,9
(2,88/ 7,65)
Weight (g) Net
1230
Width (L) Net
212
Height (Ht) Net
63
Depth (P) Net
180
Weight (g) Packaging
1490
Width (L) Packaging
246
Height (Ht) Packaging
110
Depth (P) Packaging
210
Master Carton
8
Weight (g) master Packaging
12860

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE ELIWELL EN.pdf 21 Mbytes
RV10AD141200S0 RV10AD141200S0 EN_RVCKD001200000.pdf 540 Kbytes RV10AD141200S0 RV10AD141200S0 EN_RVCKD001200000.pdf
