> ELIWELL>RV02DD10060000 ELIWELL VALVE RV 2 UST 5/8"-3/8"
ANUNCIAR
Previous Product Next Product

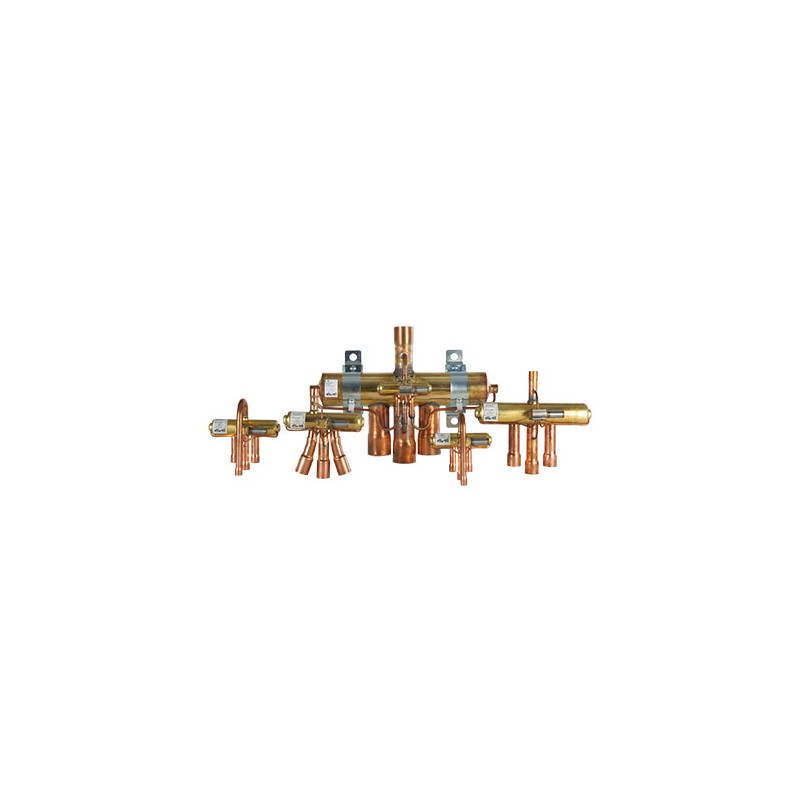

RV02DD10060000 ELIWELL VALVE RV 2 UST 5/8"-3/8" View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

RV02DD10060000 ELIWELL VALVE RV 2 UST 5/8"-3/8"

RV02DD10060000

ELIWELL

VALVE RV 2 UST 5/8"-3/8"

More details


Home > ELIWELL

Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL

Total: $71.47
Unit price: $71.47
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Part Number
RV02DD10060000
Operating Temperature
135°C
Storage Temperature
-20\+55°C
Layout
D
Port(Ø)
11,1
Capacity 1 MIN/MAX kW (Us Ton) R407C
3,85 / 7,1
(1,09/ 2,02)
Capacity 1 MIN/MAX kW (Us Ton) R410A
4,54 / 8,81
(1,29/ 2,5)
Capacity 1 MIN/MAX kW (Us Ton) R404A
3,17 / 5,98
(0,9/ 1,7)
Capacity 1 MIN/MAX kW (Us Ton) R134a
3,14 / 5,63
(0,89/ 1,6)
Capacity 1 MIN/MAX kW (Us Ton) R290
3,7 / 7,76
(1,05/ 2,21)
Capacity 1 MIN/MAX kW (Us Ton) R32
4,9 / 9,69
(1,39/ 2,76)
Capacity 1 MIN/MAX kW (Us Ton) R452B
4,77 / 9,43
(1,36/ 2,68)
Capacity 1 MIN/MAX kW (Us Ton) R454B
4,31 / 8,37
(1,23/ 2,38)
Capacity 1 MIN/MAX kW (Us Ton) R454A
4,18 / 8,11
(1,19/ 2,3)
Capacity 1 MIN/MAX kW (Us Ton) R454C
3,86 / 7,49
(1,1/ 2,13)
Capacity 1 MIN/MAX kW (Us Ton) R455A
4 / 7,75
(1,14/ 2,2)
Capacity 1 MIN/MAX kW (Us Ton) R445A
3,2 / 5,74
(0,91/ 1,63)
Capacity 1 MIN/MAX kW (Us Ton) R1234ze
2,67 / 4,79
(0,76/ 1,36)
Capacity 1 MIN/MAX kW (Us Ton) R450A
2,83 / 5,07
(0,8/ 1,44)
Capacity 1 MIN/MAX kW (Us Ton) R1234yf
3,08 / 5,52
(0,87/ 1,57)
Capacity 1 MIN/MAX kW (Us Ton) R1233zd
2,89 / 5,18
(0,82/ 1,47)
Capacity 1 MIN/MAX kW (Us Ton) T1336zz
2,98 / 5,35
(0,85/ 1,52)
Capacity 2 MIN/MAX kW (Us Ton) R407C
4,18 / 7,72
(1,19/ 2,19)
Capacity 2 MIN/MAX kW (Us Ton) R410A
4,93 / 9,58
(1,4/ 2,72)
Capacity 2 MIN/MAX kW (Us Ton) R404A
3,45 / 6,5
(0,98/ 1,85)
Capacity 2 MIN/MAX kW (Us Ton) R134a
3,41 / 6,12
(0,97/ 1,74)
Capacity 2 MIN/MAX kW (Us Ton) R290
4,02 / 8,43
(1,14/ 2,4)
Capacity 2 MIN/MAX kW (Us Ton) R32
5,33 / 10,53
(1,52/ 3)
Capacity 2 MIN/MAX kW (Us Ton) R452B
5,18 / 10,25
(1,47/ 2,91)
Capacity 2 MIN/MAX kW (Us Ton) R454B
4,69 / 9,1
(1,33/ 2,59)
Capacity 2 MIN/MAX kW (Us Ton) R454A
4,54 / 8,81
(1,29/ 2,5)
Capacity 2 MIN/MAX kW (Us Ton) R454C
4,19 / 8,14
(1,19/ 2,31)
Capacity 2 MIN/MAX kW (Us Ton) R455A
4,34 / 8,43
(1,23/ 2,4)
Capacity 2 MIN/MAX kW (Us Ton) R445A
3,48 / 6,24
(0,99/ 1,77)
Capacity 2 MIN/MAX kW (Us Ton) R1234ze
2,9 / 5,2
(0,82/ 1,48)
Capacity 2 MIN/MAX kW (Us Ton) R450A
3,07 / 5,51
(0,87/ 1,57)
Capacity 2 MIN/MAX kW (Us Ton) R1234yf
3,34 / 6
(0,95/ 1,71)
Capacity 2 MIN/MAX kW (Us Ton) R1233zd
3,14 / 5,63
(0,89/ 1,6)
Capacity 2 MIN/MAX kW (Us Ton) T1336zz
3,24 / 5,81
(0,92/ 1,65)
Weight (g) Net
300
Width (L) Net
120
Height (Ht) Net
80
Depth (P) Net
120
Weight (g) Packaging
360
Width (L) Packaging
130
Height (Ht) Packaging
85
Depth (P) Packaging
120
Master Carton
18
Weight (g) master Packaging
7080

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE ELIWELL EN.pdf 21 Mbytes
RV02DD10060000 RV02DD10060000 EN_RV06AD12080000.pdf 517 Kbytes RV02DD10060000 RV02DD10060000 EN_RV06AD12080000.pdf
Download general catalog Download general catalog
