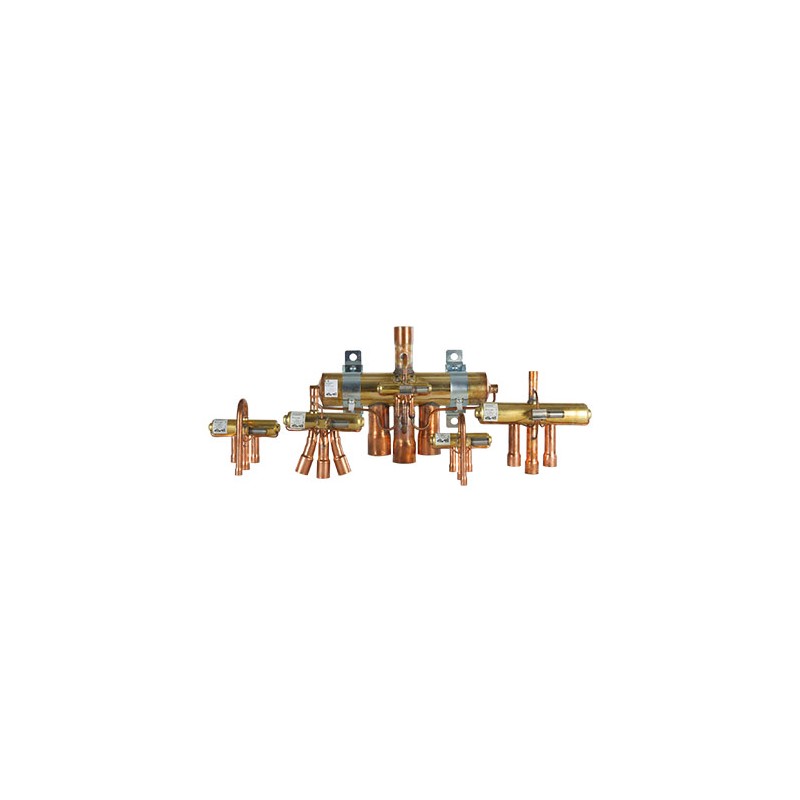

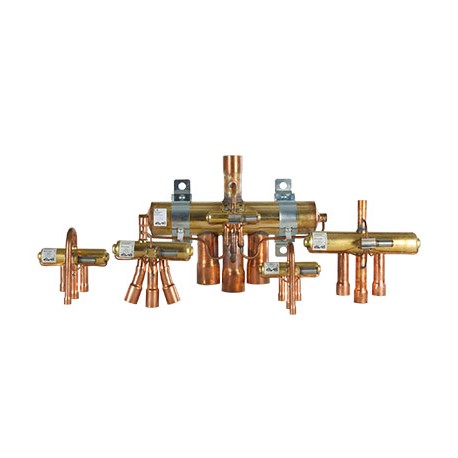

RV01AD08060000 ELIWELL VALVE RV 1 UST 1/2"-3/8" View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

RV01AD08060000 ELIWELL VALVE RV 1 UST 1/2"-3/8"

RV01AD08060000

ELIWELL

VALVE RV 1 UST 1/2"-3/8"

REV. VALVE 1 UST 1/2 - 3/8

More details


Home > ELIWELL

Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL

Total: $55.72
Unit price: $55.72
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Part Number
RV01AD08060000
Operating Temperature
135°C
Storage Temperature
-20\+55°C
Layout
A
Port(Ø)
11,1
Capacity 1 MIN/MAX kW (Us Ton) R407C
1,39 / 4,62
(0,4/ 1,31)
Capacity 1 MIN/MAX kW (Us Ton) R410A
1,73 / 6,01
(0,49/ 1,71)
Capacity 1 MIN/MAX kW (Us Ton) R404A
1,482435 / 4,22
(0,42/ 1,2)
Capacity 1 MIN/MAX kW (Us Ton) R134a
1,39 / 3,91
(0,4/ 1,11)
Capacity 1 MIN/MAX kW (Us Ton) R290
1,48 / 5,17
(0,42/ 1,47)
Capacity 1 MIN/MAX kW (Us Ton) R32
1,87 / 6,61
(0,53/ 1,88)
Capacity 1 MIN/MAX kW (Us Ton) R452B
1,82 / 6,43
(0,52/ 1,83)
Capacity 1 MIN/MAX kW (Us Ton) R454B
1,64 / 5,71
(0,47/ 1,62)
Capacity 1 MIN/MAX kW (Us Ton) R454A
1,59 / 5,53
(0,45/ 1,57)
Capacity 1 MIN/MAX kW (Us Ton) R454C
1,47 / 5,11
(0,42/ 1,45)
Capacity 1 MIN/MAX kW (Us Ton) R455A
1,52 / 5,29
(0,43/ 1,5)
Capacity 1 MIN/MAX kW (Us Ton) R445A
1,42 / 3,99
(0,4/ 1,13)
Capacity 1 MIN/MAX kW (Us Ton) R1234ze
1,18 / 3,32
(0,34/ 0,94)
Capacity 1 MIN/MAX kW (Us Ton) R450A
1,25 / 3,52
(0,36/ 1)
Capacity 1 MIN/MAX kW (Us Ton) R1234yf
1,36 / 3,83
(0,39/ 1,09)
Capacity 1 MIN/MAX kW (Us Ton) R1233zd
1,28 / 3,6
(0,36/ 1,02)
Capacity 1 MIN/MAX kW (Us Ton) T1336zz
1,32 / 3,71
(0,38/ 1,06)
Capacity 2 MIN/MAX kW (Us Ton) R407C
1,51 / 5,02
(0,43/ 1,43)
Capacity 2 MIN/MAX kW (Us Ton) R410A
1,88 / 6,53
(0,53/ 1,86)
Capacity 2 MIN/MAX kW (Us Ton) R404A
1,61 / 4,59
(0,46/ 1,3)
Capacity 2 MIN/MAX kW (Us Ton) R134a
1,51 / 4,25
(0,43/ 1,21)
Capacity 2 MIN/MAX kW (Us Ton) R290
1,61 / 5,62
(0,46/ 1,6)
Capacity 2 MIN/MAX kW (Us Ton) R32
2,03 / 7,19
(0,58/ 2,04)
Capacity 2 MIN/MAX kW (Us Ton) R452B
1,97 / 6,99
(0,56/ 1,99)
Capacity 2 MIN/MAX kW (Us Ton) R454B
1,79 / 6,21
(0,51/ 1,76)
Capacity 2 MIN/MAX kW (Us Ton) R454A
1,73 / 6,01
(0,49/ 1,71)
Capacity 2 MIN/MAX kW (Us Ton) R454C
1,6 / 5,55
(0,45/ 1,58)
Capacity 2 MIN/MAX kW (Us Ton) R455A
1,65 / 5,75
(0,47/ 1,63)
Capacity 2 MIN/MAX kW (Us Ton) R445A
1,54 / 4,34
(0,44/ 1,23)
Capacity 2 MIN/MAX kW (Us Ton) R1234ze
1,28 / 3,61
(0,37/ 1,03)
Capacity 2 MIN/MAX kW (Us Ton) R450A
1,36 / 3,83
(0,39/ 1,09)
Capacity 2 MIN/MAX kW (Us Ton) R1234yf
1,48 / 4,17
(0,42/ 1,18)
Capacity 2 MIN/MAX kW (Us Ton) R1233zd
1,39 / 3,91
(0,4/ 1,11)
Capacity 2 MIN/MAX kW (Us Ton) T1336zz
1,44 / 4,04
(0,41/ 1,15)
Weight (g) Net
190
Width (L) Net
120
Height (Ht) Net
70
Depth (P) Net
120
Weight (g) Packaging
250
Width (L) Packaging
130
Height (Ht) Packaging
85
Depth (P) Packaging
120
Master Carton
18
Weight (g) master Packaging
5100

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE ELIWELL EN.pdf 21 Mbytes
RV01AD08060000 RV01AD08060000 EN_RVCKD001200000.pdf 540 Kbytes RV01AD08060000 RV01AD08060000 EN_RVCKD001200000.pdf
