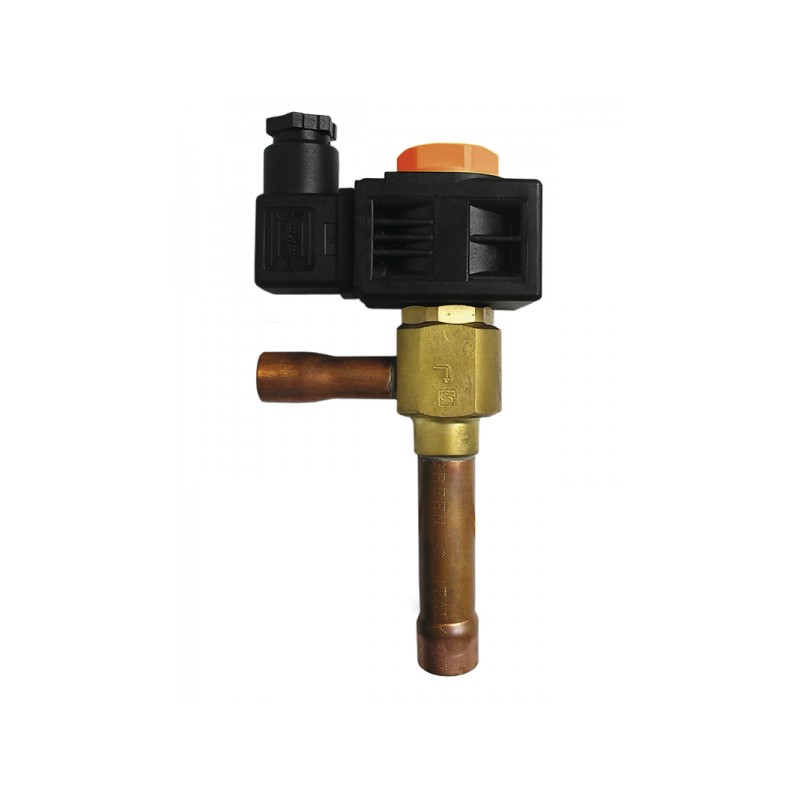

PXVE03S040000 ELIWELL VEE PULSES R744 CO2-HOLE 4 Electronic controls for automation
PXVE03S040000
ELIWELL
VEE PULSES R744 - CO2-HOLE # 4 Electronic controls for automation
VALVE PXV (CO2) 3/8"-1/2" WITH HOLE Nº4
Home > ELIWELL
* Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL
Best sellers
▲More info
▲EXPANSION VALVES ELECTRONIC PULSE
The valve PXV, are solenoid valves
operation pulses. Is controlled
by regulator Eliwell V800 or IWK/V.
Have interchangeable orifices.
Capacity of up to 20KW.
Optimises the injection of the liquid refrigerant
the evaporator increasing its efficiency.
Compatibile with the largest part of
refrigerants available.
230Vac and 24Vac available.
Reduces the risk of fluid return to the
compressor.
Improves the control of overheating the
vary the conditions of work.
| Model | Type hole | Diameter of hole (mm) | Connections | Nominal capacity (KW) | |||||
|---|---|---|---|---|---|---|---|---|---|
| IN | OUT | R22 | R134a | R404A - R507 | R407C | R410A | |||
| PXVB03S010000 | 01 | 0,5 | 3/8” | 1/2” | 1,0 | 0,9 | 0,8 | 1,1 | 1,3 |
| PXVB03S020000 | 02 | 0,7 | 3/8” | 1/2” | 2,5 | 2,0 | 1,9 | 2,4 | 3,0 |
| PXVB03S030000 | 03 | 0,8 | 3/8” | 1/2” | 2,5 | 2,0 | 1,9 | 2,4 | 3,0 |
| PXVB03S040000 | 04 | 1,1 | 3/8” | 1/2” | 3,9 | 3,2 | 2,9 | 3,8 | 4,8 |
| PXVB03S050000 | 05 | 1,3 | 3/8” | 1/2” | 6,7 | 5,6 | 5,1 | 6,7 | 8,4 |
| PXVB03S060000 | 06 | 1,7 | 3/8” | 1/2” | 9,2 | 7,7 | 7,0 | 9,1 | 11,4 |
| PXVB04S070000 | 07 | 2,3 | 1/2” | 5/8” | 14,7 | 12,2 | 11,3 | 15,3 | 18,2 |
| PXVB04S080000 | 08 | 2,5 | 1/2” | 5/8” | 17,4 | 14,7 | 13,5 | 17,7 | 21,6 |
| PXVB04S090000 | 09 | 2,7 | 1/2” | 5/8” | 19,3 | 16,3 | 15,0 | 19,6 | 24,1 |
The power ratings refer to:
- Evaporation temperature Tevap = +5°C
- Condensing temperature Tcond = +32°C
- Temperature of the liquid at valve inlet Tliq = +28°C
Models for R744-CO2
| Model | Type hole | Diameter of hole (mm) | Connections | Nominal capacity (KW) | |||||
|---|---|---|---|---|---|---|---|---|---|
| IN | OUT | R744 | |||||||
| PXVE03S010000 | 01 | 0,5 | 3/8” | 1/2” | 2,9 | ||||
| PXVE03S020000 | 02 | 0,7 | 3/8” | 1/2” | 5,9 | ||||
| PXVE03S030000 | 03 | 0,8 | 3/8” | 1/2” | 7,8 | ||||
| PXVE03S040000 | 04 | 1,1 | 3/8” | 1/2” | 11,8 | ||||
| PXVE03S050000 | 05 | 1,3 | 3/8” | 1/2” | 20,6 | ||||
| PXVE03S060000 | 06 | 1,7 | 3/8” | 1/2” | 32,3 | ||||
| PXVE04S070000 | 07 | 2,3 | 1/2” | 5/8” | 58,8 | ||||
The power ratings refer to:
- Evaporation temperature Tevap = -35°C
- Condensation temperature Tcond = -5 °C
- Temperature of the liquid at valve inlet Tliq = -31 °C
- ΔP=18Bar
COILS
| MODEL | CODE | VOLTAGE V |
|---|---|---|
| PXV 220/230 AC | PXVB0ARA60000 | 220/230 BC |
| PXV 220/230 AC (R744-CO2) | PXVE0ARA60000 | 220/230 BC |
| CONNECTOR IP65 | PXVB0AR020000 | - |
Characteristics
| Reference | PXVE03S040000 |
|---|---|
| Model | PXV PULSE-WITH HOLE No. 4 |
| Gas | R744-CO2 |
| Options Gas | R744-CO2 |
| Hole | 4 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE ELIWELL EN.pdf | 24 Mbytes |
|
| 2: PXVE03S040000 ELIWELL VEE PULSES R744 CO2-HOLE 4 | 77 Kbytes |
|
| Download general catalog |
|
