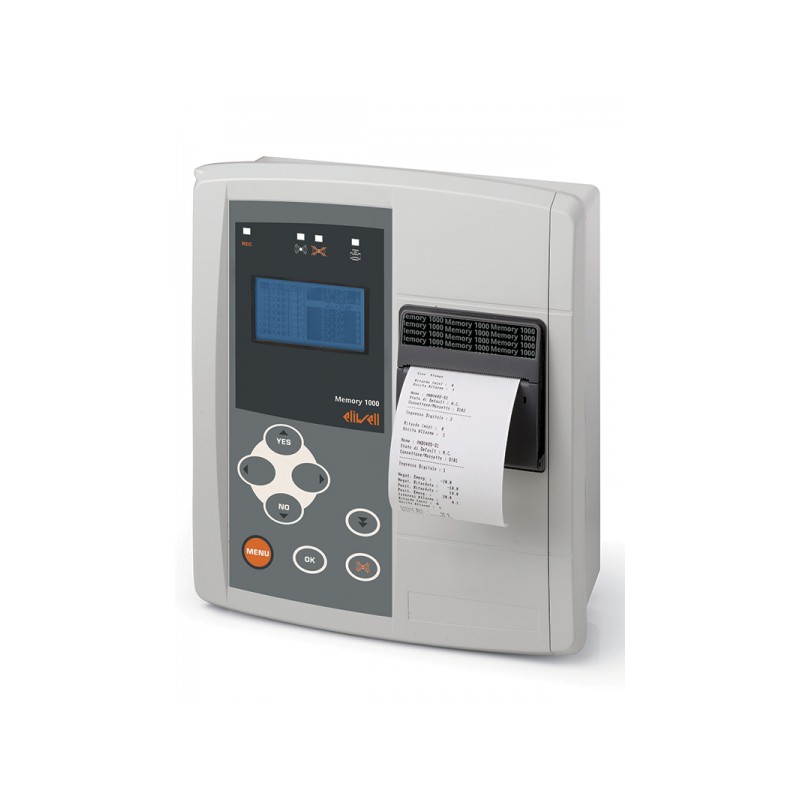

M1K04S03M1S01 ELIWELL Memory 1240.And 4 probes with printer
M1K04S03M1S01
ELIWELL
Memory 1240.And 4 probes with printer Electronic controls for automation
Home > ELIWELL
* Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL
More info
▲TEMPERATURE LOGGER CERTIFIED METROLOGICALLY ACCORDING TO ITC 3701/2006 - RD 889/2006
Equipamentos that cumprem to Portaria nº1129/2009
Temperature data logger fully approved under the regulations metrological
4 models to choose from:
1245: up to 4 probes
1240: up to 4 probes, built-in printer
1285: up to 8 probes
1280: up to 8 probes, built-in printer
Without the need of card for your installation.
Port SD cardstandard;
for connection to standard SD cards and data downloading. The same card serves for the download of data from multiple M1000.And
Download SD automatic,without the need of touching any keysimply enter the card.
RS - 485 – For connection to system Televis/ModBus+
RS - 232 – For connecting GSM MODEM and sending SMS alarms
RS - 232 – For PC connection and data download.
Load thermal paper extremely simple.
Internal data memory as standardIN 12830.
Alarm relay and buzzer.
2 digital Inputs
Graphic print and text.
Software includedto generate charts, tables, graphs, alarms, tables of modified parameters.
Pdisplay graphicsfor programming and data visualization
Probes of different lengths on order. The registrar
it is supplied with all the documents metrólogicos (module F) and the probes connected and sealed.
Select models of the probe next to the registrar for preparation of the set approved
| MEMORY 1000 with printer (mod. 1240 and 1280) | MEMORY 1000 without printer(mod. 1245 and 1285) | |
|---|---|---|
| User interface | Display graphic LCD retro-lit 8 keys in polycarbonate | Display graphic LCD retro-lit 7 keys in polycarbonate |
| Analog inputs | Up to 8 analog inputs NTC | Up to 8 analog inputs NTC |
| Digital inputs | Up to 2 digital inputs | Up to 2 digital inputs |
| Digital outputs | 1 SPDT 5(2)A 250Va | 1 SPDT 5(2)A 250Va |
| Connectivity | RS-485 port for ModBus communication+ RS-232 Serial to download data with software for Microsoft Windows® (supplied) | RS-485 port for ModBus communication+ RS-232 Serial to download data with software for Microsoft Windows® (supplied) |
| Watch | present | present |
| Buzzer | present | present |
| Power | 230Va ±10% 50/60Hz | 230Va ±10% 50/60Hz |
| Dimensions | 210 x 245 x 70 mm | 210 x 245 x 70 mm |
Characteristics
| Reference | M1K04S03M1S01 |
|---|---|
| Model | MEMORY 1240.And |
| Relays | 1 |
| RS485 Built-in | If |
| ITC 3701 - 12830 | If |
| Printer | If |
| Probes | up to 4 NTC |
| RS 232 | If |
| Format | Wall |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE ELIWELL EN.pdf | 24 Mbytes |
|
| 2: M1K04S03M1S01 ELIWELL Memory 1240.And 4 probes with printer | 86 Kbytes |
|
| Download general catalog |
|
