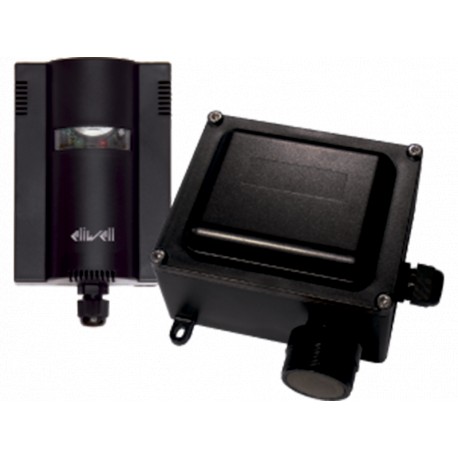

LKD41CO2XR400 ELIWELL LEAK DETECTOR LKD CO2 IP21 Electronic controls for automation
Reference: LKD41CO2XR400
Manufacturer: ELIWELL
Description:
LEAK DETECTOR LKD CO2 IP21 Electronic controls for automation
LKD 100 mod110 CO2 12/24V
Categories:
- ELIWELL
Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
LKD LEAK DETECTORS
The gas sensors LKD represent
the current technology in gas detectors
and can detect the leakage of a large
range of gases (R134a, R404a, NH3,
R290, R600a and CO2).
The models available are:
Semiconductor (SC) and Infrared (ir).
Important feature of the sensors
LKD is that they can be used:
- Alone (stand-alone), thanks to an output
digital relay that can control a
buzzer, a siren, etc - Integrated in the management system
remote Eliwell (e.g. TelevisGo) or
third parties thanks to a RS485 port
on-board (only model Modbus).
| SEMICONDUCTOR R134a/R404a/NH3 - R290/R600a | INFRA-RED CO2 | |
|---|---|---|
| PROTECTION IP | IP41 (TN applications) — IP66 (applications BT) | |
| DIMENSIONS/WEIGHT |
| |
| POWER | 12/24Vc/a ±20% 50/60 Hz | |
| POWER CONSUMPTION (AT 12V) | 153mA | 136mA |
| ANALOG OUTPUTS | 0-5V, 1-5V, 0-10V, 2-10V, 4-20mA | |
| DIGITAL OUTPUTS | 1 relay 1A/24Vc/a | |
| BUZZER | If | |
| DELAY ALARM SELECTABLE | 0, 1, 5, 10min | |
| CONNECTIONS | 1 RS485 for connection to supervisor Modbus only in the corresponding model (see) | |
| FIELD OF WORK TYPICAL | R134a: 0...1,000 ppm – R404a: 0...1,000 ppm R290: 0...2,000 ppm – R600a: 0...2,000 ppm NH3: 0...1,000 and 0...10,000 ppm | CO2 = 0...10,000 ppm |
| TEMPERATURE RANGE | IP41: -20ºC ... +50 ° C — IP66: -40ºC ... +50ºC | |
| HUMIDITY RANGE | 0 ... 95% (without condensation) | |
| FAULT INDICATION | Red LED ON - green LED OFF | |
| LIFE TIME OF THE SENSOR | 5-8 years | 8-10 years |
| ALARM THRESHOLD T50 | 76 ppm | 25 ppm |
| ALARM THRESHOLD T90 | 215 ppm | 90 ppm |
| RESETTING TIME | 600 sec. | 210 sec. |
Characteristics
| Reference | LKD41CO2XR400 |
|---|---|
| Model | LKD 110 CO2 12/24V. IP41 |
| Relays | 1 |
| Gas | R744-CO2 |
| Degree IP | IP41 |
| Options Gas | R744-CO2 |
| Supply voltage | 24 Vac/vdc, 12 Vac/vdc |
