> ELIWELL>IDP11D07S0000 ELIWELL IDPLUS 902 230 Vac 1 PROBE 1 RELÉ7 Electronic controls for automation
Previous Product Next Product

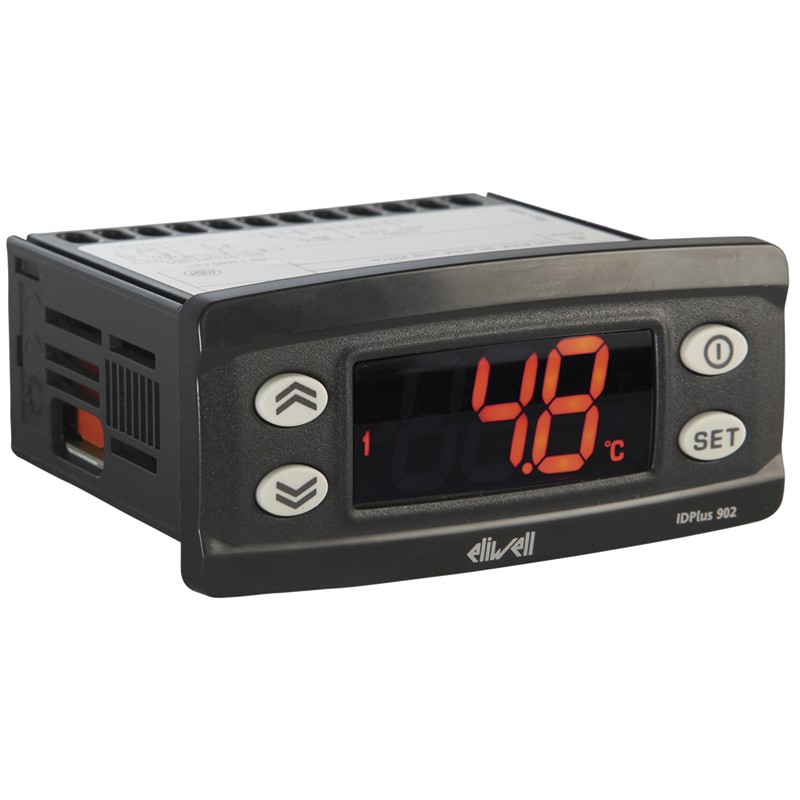

IDP11D07S0000 ELIWELL IDPLUS 902 230 Vac 1 PROBE 1 RELÉ7 Electronic controls for automation View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

IDP11D07S0000 ELIWELL IDPLUS 902 230 Vac 1 PROBE 1 RELÉ7 Electronic controls for automation

IDP11D07S0000

ELIWELL

IDPLUS 902 230 Vac 1 PROBE 1 RELÉ7 Electronic controls for automation

IDPlus 902 SPA NTC 8A 230Vac

More details


Home > ELIWELL

Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


CONTROLS FOR UNITS, STATIC, AIRY, OR HEAT



The family IDPLUS is especially suitable for stockists, since due to
yourversatility allows you to reduce the number of codescovering the maximum of possibilities.


Up to 4 different schedules of pre-configured parameters.


Parameter Cold/Heat.


Installation: on panel, with mounting hole 71x29mm (+0,2/-0,1 mm).


Usage temperature: -5...55°C.


Storage temperature: -30...85°C.


Type of probe range: PTC, NTC AND PT1000.


Simplified user interface.


List of parameters predefined
- selectable and rearmable.


Function HACCP.


Is connected to TelevisSystem and
ModBus.


New Unicard USB/TTL for upload/download of parameters.

Technical Datafor models IDPLUS 902 - 961 -971 -974 -978 (See corresponding tables)

IDPLUS902IDPLUS961IDPLUS971
Display field
  • probe NTC: -50,0...110,0°C
  • probe PTC: -55,0...140,0°C
  • probe Pt1000: -55,0...150,0°C
  • probe NTC: -50,0...110,0°C
  • probe PTC: -55,0...140,0°C
  • probe Pt1000: -55,0...150,0°C
  • probe NTC: -50,0...110,0°C
  • probe PTC: -55,0...140,0°C
  • probe Pt1000: -55,0...150,0°C
Displaywith decimal point * 3 digits + sign

with decimal point * 3 digits + sign

with decimal point * 3 digits + sign

Analog inputs1 PTC / NTC / Pt1000* 1 PTC / NTC / Pt1000* 2 PTC / NTC / Pt1000*
Configurable inputs1 digital (SELV) / analogue (PTC/NTC/Pt1000)*

1 digital (SELV) / analogue (PTC/NTC/Pt1000)*

1 digital (SELV) / analogue (PTC/NTC/Pt1000)*
1 digital (SELV) / serial TTL*
Connectivity

Port TTL for connection to Unicard/ Copy Card or to system monitoring TelevisSystem/ModBus* (need Bus Adapter)

Port TTL for connection to Unicard/ Copy Card or to system monitoring TelevisSystem/ModBus* (need Bus Adapter)

Port TTL for connection to Unicard/ Copy Card or to system monitoring TelevisSystem/ModBus* (need Bus Adapter)

Digital outputs
  • N. A. 8(4)A - N. C. 6(3)A max 250V~
  • 1 SPST 2Hp 12(12)A 250V~ N. A.
  • 1 SPDT ½Hp 8(4)A 250V~ N. A.
  • 1 SPST 2Hp 12(12)A 250V~
Field measurement

-55,0...150,0°C

-55,0...150,0°C

-55,0...150,0°C

Consumption4.5 W max4.5 W max4.5 W max
Power
  • 230V~ ±10% 50/60Hz
  • 12V~/c ▒ 10% 50/60Hz
  • 230V~ ±10% 50/60Hz
  • 12V~/c ▒ 10% 50/60Hz
  • 230V~ ±10% 50/60Hz
  • 12V~/c ▒ 10% 50/60Hz
Dimensions74 x 32 x 59 mm74 x 32 x 59 mm74 x 32 x 59 mm
HACCPpresentpresentpresent
* selectable by parameter

IDPLUS974IDPLUS978
Display field
  • probe NTC: -50,0...110,0°C
  • probe PTC: -55,0...140,0°C
  • probe Pt1000: -55,0...150,0°C
  • probe NTC: -50,0...110,0°C
  • probe PTC: -55,0...140,0°C
  • probe Pt1000: -55,0...150,0°C
Display

with decimal point * 3 digits + sign

with decimal point * 3 digits + sign

Analog inputs2 PTC / NTC / Pt1000* 2 PTC / NTC / Pt1000*
Configurable inputs

1 digital (SELV) / analogue (PTC/NTC/Pt1000)*
1 digital (SELV) / serial TTL*

1 digital (SELV) / analogue (PTC/NTC/Pt1000)*
1 digital (SELV) / serial TTL*
Connectivity

Port TTL for connection to Unicard/ Copy Card or to system monitoring TelevisSystem/ModBus* (need Bus Adapter)

Port TTL for connection to Unicard/ Copy Card or to system monitoring TelevisSystem/ModBus* (need Bus Adapter)

Digital outputs
  • 1 SPDT ½Hp 8(4)A 250V~ N. A.
  • 1 SPST 2Hp 12(12)A 250V~
  • 1 SPST 5(2)A 250V~
  • 1 SPDT ½Hp 8(4)A 250V~ N. A.
  • 1 SPST 5Hp 12(12)A 250V~
  • 1 SPST 1.5 HP 10(6)A 250V~
  • 1 SPST 5(2)A 250V~
Field measurement

-55,0...150,0°C

-55,0...150,0°C

Consumption3W max3W max
Power
  • 230V~ ±10% 50/60Hz
  • 12V~/c ▒ 10% 50/60Hz
  • 230V~ ±10% 50/60Hz
  • 12V~/c ▒ 10% 50/60Hz
Dimensions74 x 32 x 59 mm74 x 32 x 59 mm
HACCPpresentpresent
* selectable by parameter

Characteristics

ReferenceIDP11D07S0000
ModelIDPLUS 902
RelaysRelay switched
USB UnicardIf
Copy CardIf
Individual PackingIf
HACCPIf
D. IIf
Probes1 NTC, PTC, PT1000
Digital InputIf
FormatPanel 74x32
Supply voltage230VAC

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE ELIWELL EN.pdf 21 Mbytes
Download general catalog Download general catalog
