> ELIWELL>IDP11D03S0000 ELIWELL IDPLUS 902 12 V 1 PROBE 1 RELAY Electronic controls for automation
Previous Product Next Product

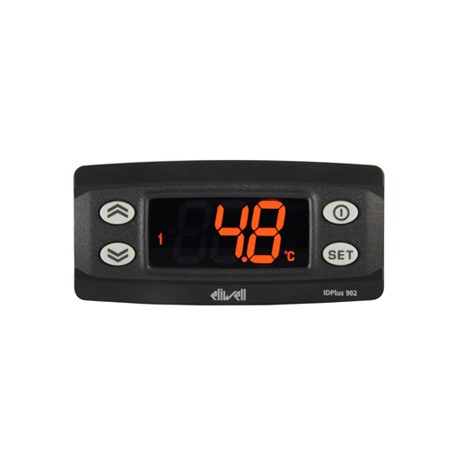

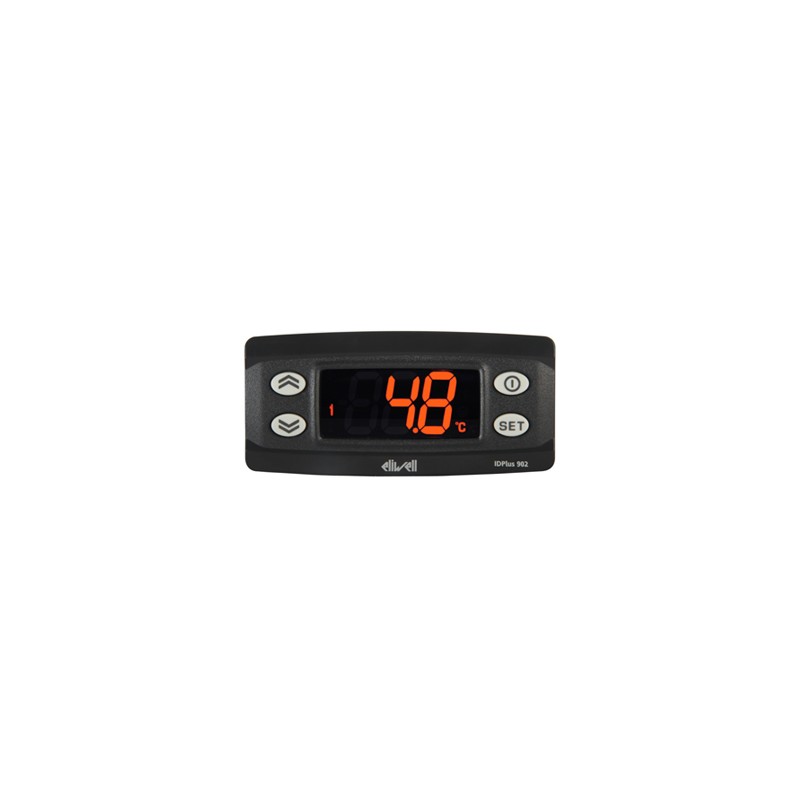

IDP11D03S0000 ELIWELL IDPLUS 902 12 V 1 PROBE 1 RELAY Electronic controls for automation View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

IDP11D03S0000 ELIWELL IDPLUS 902 12 V 1 PROBE 1 RELAY Electronic controls for automation

IDP11D03S0000

ELIWELL

IDPLUS 902 12 V 1 PROBE 1 RELAY Electronic controls for automation

IDPlus 902 ESP NTC 8A 12Vac

More details


Home > ELIWELL

Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Part Number
IDP11D03S0000
Operating Temperature
-5...55
Storage Temperature
-30…85
Ambient Humidity
10…90% RH (non-condensing)
Power Supply
12 Vac-dc
Power Draw
3W max
Display Range
NTC: -50,0…+110,0 °C
PTC: -55,0…+140,0 °C
Pt1000: -55,0...+150,0 °C
N. Analogue Inputs
1
Analogue Inputs
1x PTC or NTC or Pt1000
N. Digital Inputs
1
Digital Inputs
1x SELV
N. Digital Outputs
1
Digital Outputs
1x SPST 2Hp 12(12)A 250Vac
Display
LED 3 digits + sign
Resolution ( 0.1°C with decimal point )
1 or 0,1°C
Measurement Range
-55,0…+150,0°C
Accuracy
better than 0,5% of full scale + 1 digit
Connectivity
TTL port for connection to UnicardCopy Card or TelevisSystemModBus monitoring device
N. Serial Ports
1
Serial Ports
1x TTL
Installation
panel, 71x29mm
Accessories
Unicard USB/TTL
Functions
HACCP, DCC, Easy Map, COH
Weight (g) Net
120
Width (L) Net
79
Height (Ht) Net
37
Depth (P) Net
59
Weight (g) Packaging
137
Width (L) Packaging
130
Height (Ht) Packaging
90
Depth (P) Packaging
50

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE ELIWELL EN.pdf 21 Mbytes
IDP11D03S0000 IDP11D03S0000 EN_IDP2EDB3S0000.pdf 3 Mbytes IDP11D03S0000 IDP11D03S0000 EN_IDP2EDB3S0000.pdf
Download general catalog Download general catalog
