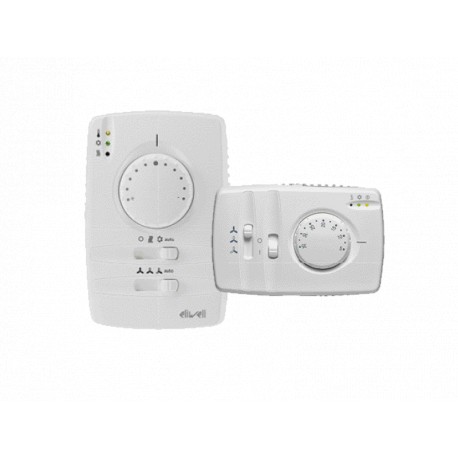

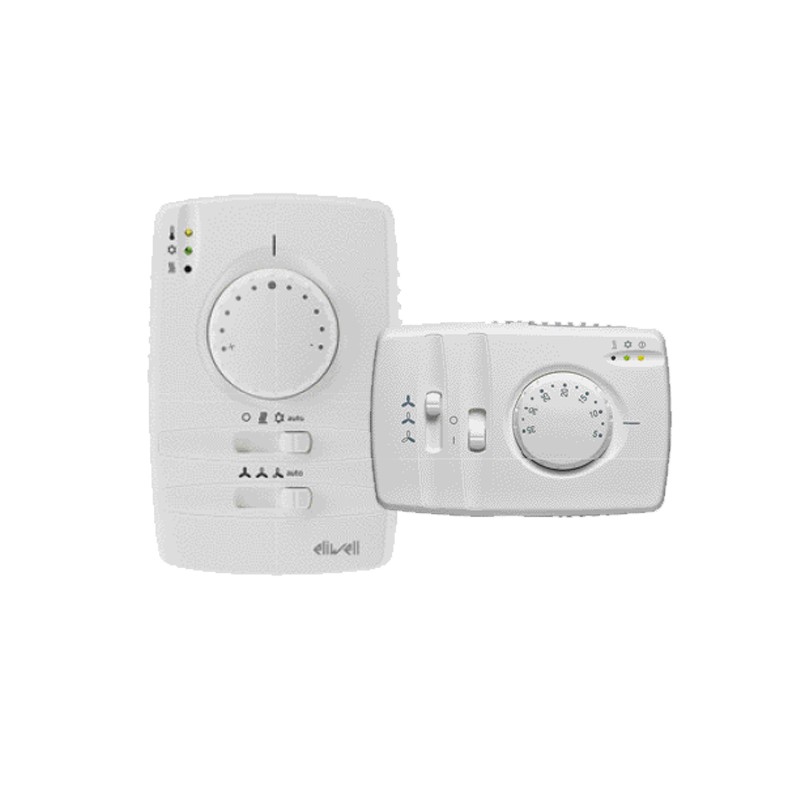

FC1WS0000500 ELIWELL FC U32W/ST TELEVIS (NEED BUS ADAPTER 150) Electronic controls for automation
FC1WS0000500
ELIWELL
FC U32W/ST TELEVIS (NEED BUS ADAPTER 150) Electronic controls for automation
Home > ELIWELL
Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL
Best sellers
▲More info
▲ELECTRONIC CONTROLS CONFIGURABLE FOR FAN-COIL - CONFIGURABLE - WITH COMMUNICATION
Electronic thermostat with aesthetic analog
Cost effective solution with the advantages of electronics, delay times, and automatic change summer/winter (configurable)
Valid for work such as Fan Coil and as the thermostat environment on machines with air probe aboard
Configurable: 2 tubes, 2 tubes more resistance, 4 tubes
Possibility physical limit of the temperature range
The fan can be fixed or regulated thermostatically
Possibility of having models with the Economy function and Window Contact
Power to 240Vac, up to 3 outputs triack (silent) and 2 temperature probes NTC (reinforced)
Connections made with quick coupling system
Selectors of operation and 3 fan speeds
Control logic of wall, floor and ceiling selectable from parameter
Position of automatic operation of thermostatic regulation and fans in model BASICOM
Compatible with Televis and ModBus allowing locking functions from the program
| FC U32W/SM MODBUS | FC U32W/ST TELEVIS | |
|---|---|---|
| Power | 230V~ 50/60Hz | 230V~ 50/60Hz |
| Insulation class | II | II |
| Protection | IP 30 | IP 30 |
| Analog inputs | 3 NTC | 3 NTC |
| Digital outputs | 5 relay outputs | 5 relay outputs |
| Mounting | On wall | On wall |
| Dimensions | 80x120x40 mm | 80x120x40 mm |
| Room temperature | 0 ... 55 ° C | 0 ... 55 ° C |
| Temperature storage temperature | -20 ... 85 ° C | -20 ... 85 ° C |
| Communication | ModBus | Televis |
Characteristics
| Reference | FC1WS0000500 |
|---|---|
| Model | FC U32W/ST TELEVIS |
| Supply voltage | 230VAC |
| Compatibility Televis | If |
| Probes | 2 NTC |
| Supply voltage | 230VAC |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE ELIWELL EN.pdf | 21 Mbytes |
|
| 2: FC1WS0000500 ELIWELL FC U32W/ST TELEVIS (NEED BUS ADAPTER 150) | 81 Kbytes |
|
