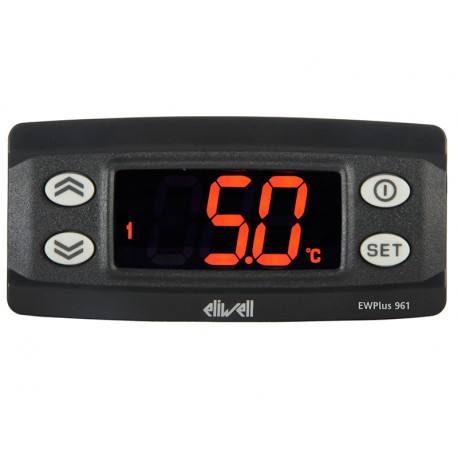

EW17DI0XC4706 ELIWELL EW PLUS 961 NTC 230 VAC 1 probe 1 relay Electronic controls for automation
EW17DI0XC4706
ELIWELL
10
EW PLUS 961 - NTC 230 VAC 1 probe 1 relay Electronic controls for automation
Home > ELIWELL
Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL
Best sellers
▲More info
▲CONTROLS FOR UNITS WITH DEFROSTING AND VENTILATION
The family EW PLUS is characterized byofferlos drive manufacturers refrigeration designnoveland a reduced range and versatile to cover all your needs.
The flexibility of the platform and the wide library of available functions allows to offer custom solutions for energy saving.
Custom configurations upon request and minimum quantity
Ideal for applications with hydrocarbons
Menu simple and intuitive
Direct Control up to 2Hp
Use of terminals, removable/ faston/screw for greater speed and convenience in the wiring
Unicard USB for customizing parameters
Great benefits for builders
Installation: on panel, with mounting hole 71x29mm
| EW PLUS 961 | EW PLUS 971 | EW PLUS 974 | |
|---|---|---|---|
| Display field | probe NTC: -50,0...110,0°C | probe NTC: -50,0...110,0°C | probe NTC: -50,0...110,0°C |
| Display | with decimal point * 3 digits + sign | with decimal point * 3 digits + sign | with decimal point * 3 digits + sign |
| Analog inputs | 1 NTC | 1 NTC | 1 NTC |
| Configurable inputs | 1 digital (SELV) | 1 digital (SELV) | 1 digital (SELV) |
| Connectivity | Port TTL for connection to Unicard/Copy Card or to system monitoring TelevisSystem (need Bus Adapter) | Port TTL for connection to Unicard/Copy Card or to system monitoring TelevisSystem (need Bus Adapter) | Port TTL for connection to Unicard/Copy Card or to system monitoring TelevisSystem (need Bus Adapter) |
| Digital outputs |
|
|
|
| Field measurement | -50,0...110,0°C | -50,0...110,0°C | -50,0...110,0°C |
| Precision | better than 0.5% of end of scale + 1 digit | better than 0.5% of end of scale + 1 digit | better than 0.5% of end of scale + 1 digit |
| Consumption | 4.5 W max | 4.5 W max | 4.5 W max |
| Power | 230V~ ±10% 50/60Hz | 230V~ ±10% 50/60Hz | 230V~ ±10% 50/60Hz |
| Dimensions | 74 x 32 x 59 mm | 74 x 32 x 59 mm | 74 x 32 x 59 mm |
| * selectable by parameter | |||
Characteristics
| Reference | EW17DI0XC4706 |
|---|---|
| Model | EW PLUS 961 |
| Relays | 1 |
| USB Unicard | If |
| Copy Card | If |
| Packaging Manufacturer | If |
| D. I | If |
| Compatibility Televis | If (need Bus Adapter) |
| Support ModBus | If (need Bus Adapter) |
| Probes | 1 NTC |
| Digital Input | If |
| Format | Panel 74x32 |
| Supply voltage | 230VAC |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE ELIWELL EN.pdf | 21 Mbytes |
|
| 2: EW17DI0XC4706 ELIWELL EW PLUS 961 NTC 230 VAC 1 probe 1 relay | 116 Kbytes |
|
| Download general catalog |
|
