ELIWELLEVC7500060B00 ELIWELL EVC7500 CPU WITHOUT DISPLAY Electronic controls for automation

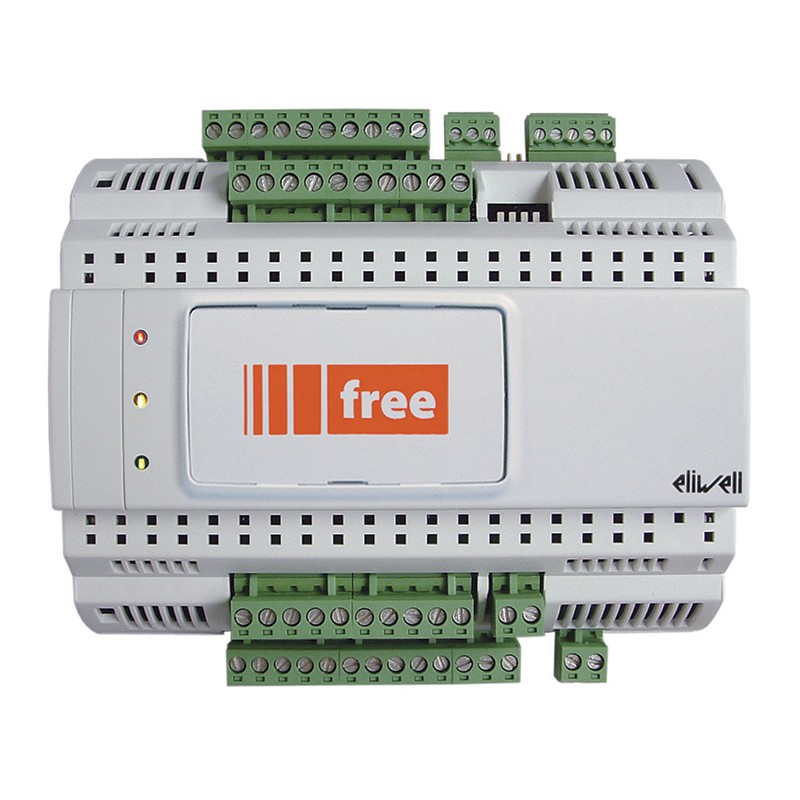

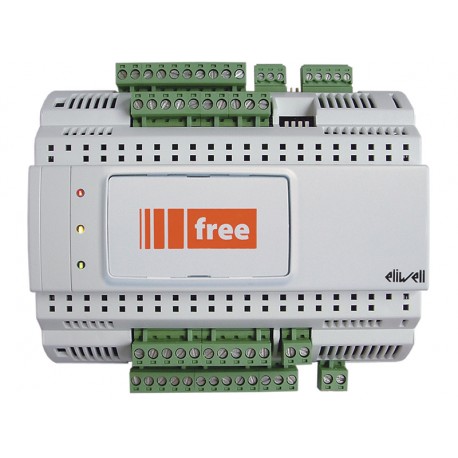

ELIWELL EVC7500060B00 EVC7500060B00 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

EVC7500060B00 ELIWELL EVC7500 CPU WITHOUT DISPLAY Electronic controls for automation

Reference: EVC7500060B00

Manufacturer: ELIWELL

Description:

EVC7500 CPU WITHOUT DISPLAY Electronic controls for automation

Categories:

  • ELIWELL

Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 607,97 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5-7 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

PROGRAMMABLE CONTROLS



FREE Evolutionrepresents the top range of the programmable controls. It has been designed to respond to the need to manage applications that are increasingly complex in the field of HVAC/R.


Graphical user interface fully programmable


Available in three formats:

  • FREE Evolution EVD 8 Din with display graphic LCD retro - lit
  • FREE Evolution EVC 8 Din with no display
  • FREE Evolution EVP graphic LCD display


High connectivity: integrates into industrial systems, BMS and networks through the use of plug-in modules specific (Modbus®, CANopen®, Profibus®, Ethernet TCP/IP)


Connectable to peripherals with standard Eliwell (including FREE Smart)


Connectable to standard peripherals third party


The models are available in version with mounting guide 8 DIN (EVD with display, EVC with no display), with terminals removable screw


Each model (EVD, EVC) can be connected up to 12 expansions (EVE) via the serial CANOpen or RS485


All of the inputs and outputs are independent and configurable, ensuring its adaptation to any system. 27 inputs and outputs 5 analog outputs and 6 analog inputs.


Available with ports standard USB (Host and Device)


Function of SMS through Modem

EVP3300 (Free panel)*EVD7500EVC7500EVE7500
FormatDISPLAY8 DIN8 DIN8 DIN
DisplayDISPLAY GRAPHIC LCD 128X64 PIXELS, BACK - LIT

DISPLAY GRAPHIC LCD 128X64 PIXELS, BACK - LIT

-

-

Power24V~/c - 48Vc24V~/c - 48Vc24V~/c - 48Vc24V~/c - 48Vc
Digital outputs-7 in total, of which 2 of 8A and 5, 5A 230V~7 in total, of which 2 of 8A and 5, 5A 230V~7 in total, of which 2 of 8A and 5, 5A 230V~
Analog outputs-5 outputs configurable 0-10V / 4...20 mA5 outputs configurable 0-10V / 4...20 mA5 outputs configurable 0-10V / 4...20 mA
Digital inputs1 EA configurable as D. I.8 voltage 24V~ or 48c8 voltage 24V~ or 48c8 voltage 24V~ or 48c
Cuentaimpulsos-1 input Fast-to-Digital (at 1 kHz)1 input Fast-to-Digital (at 1 kHz)1 input Fast-to-Digital (at 1 kHz)
Analog inputs1 NTC aboard
1 NTC or D. I.
1 4..20mA/0-10/0-5		6 in total, of which
2 x NTC 103AT / NTC NK103 / D. I.
4 x NTC 103AT / NTC NK103/ D. I./ PT1000/4...20 mA /0-10V/0-5V/		6 in total, of which
2 x NTC 103AT / NTC NK103 / D. I.
4 x NTC 103AT / NTC NK103/ D. I./ PT1000/4...20 mA /0-10V/0-5V/		6 in total, of which
2 x NTC 103AT / NTC NK103 / D. I.
4 x NTC 103AT / NTC NK103/ D. I./ PT1000/4...20 mA /0-10V/0-5V/
ConnectivityRS485, CANOpen ETHERNETRS-485 - CANOpen
USB
RS-485 ModBus (Master - Slave) or Micronet		RS-485 - CANOpen
USB
RS-485 ModBus (Master - Slave) or Micronet		RS-485 - CANOpen
USB
RS-485 ModBus (Master - Slave) or Micronet

*Free panel (EVP3300):

FREE Panel brings together in a single device, a terminal graphic user programmable control and advanced connectivity, for the management of remote resources and controls are distributed.

  • Programmable Control with calculation power and memory equal to the Evolution
  • • User interface has a programmable“network menu”
  • Available for mounting on panel or wall
  • Expandable with optional modules
  • RS-485, CAN, Ethernet integrated on board
  • Integrates systems Modbus® RTU and TCP, CANopen®
  • 3 analog inputs, available with probes on-board temperature and humidity

Characteristics

ReferenceEVC7500060B00
ModelEVC7500/C/U
FormatDIN rail
Supply voltage48 Vac/vdc, 24 Vac/vdc
Supply voltage48 Vac/vdc, 24 Vac/vdc
Manuals
EVS Plug-in Instruction Sheet 9IS24185 rel.03/11 IN-IT
FREE Evolution Instruction Sheet 9IS24153 rel.10/12 IN-IT
FREE PANEL Instruction Sheet 9IS24202 rel.10/12 IN-IT

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE ELIWELL EN
21 Mbytes
