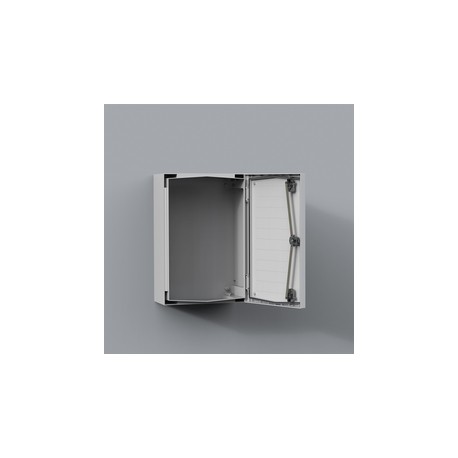

UCP640 ELDON Wall mounted, 615x415x230 UCP640
UCP640
ELDON
Wall mounted, 615x415x230 UCP640
Mural, 615x415x230, compact, 1-door, no MP, polyester, IP66
Wall mounted, 615x415x230, Compact enclosure, 1-door, no MP, polyester, IP66
Cabinet enclosures > Enclosure/switchgear cabinet (empty)
Polyester Uniplast enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Often bought together
▲Best sellers
▲More info
▲Features
- Material: Fibre-glass reinforced polyester. UCPT viewing area: polycarbonate.
- Body: Monoblock moulded 3 mm thick. Four holes for direct wall fixing. Without gland plate openings.
- Door: Door, with or without window and 180° opening. For UCP/UCPT750 and above, a door support is supplied for easier closing. Sealing is by an injected one piece polyurethane gasket.
- Lock: Double-bit 3 mm insert and 90° movement. UCP/UCPT540 and above have three locking points. Other locks are available as an accessory.
- Temperature resistance: -25 °C to 70 °C in continuous use (peak temperatures up to 130 °C).
- Characteristics: Self extinguishing and halogen free. Double insulated, according to EN61439-1. Rated insulation voltage Ui = 1000 V ac and 1500 V dc.
- Protection: IP 66, TYPE 4, 4X, 12, 13 and IP 65 only for UCPT430. Impact resistance IK 08 (IK 07 for enclosures with transparent door).
- Approvals: CE, GOST. CSA and cULus_UL Listed approvals apply to plain door enclosures only. For further approvals, please contact nVent HOFFMAN's sales department.
- Finish: RAL 7035, precoloured raw material.
- Delivery: Enclosure with door, fixing screws for the mounting plate and a self adhesive rain strip.
- Note: UCP320, UCP430 and UCP540 are delivered with the doors inside the packaging, unmounted.
| Atributo del producto | Valor |
|---|---|
| Height | 615mm |
| Width | 415mm |
| Depth | 230mm |
| Door Type | Plain |
| Latch Quantity | 3 |
| Weight | 7kg |
| Material | Polyester |
| Finish | Smooth |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Body Thickness | 3mm |
| UPC | 783510530051 |
| EAN | 8713574099982 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 415.00 mm |
| Height (EF000040) | 615.00 mm |
| Depth (EF000049) | 230.00 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyester |
| Surface finishing (EF006569) | Untreated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7.04 |
| With mounting plate (EF000118) | No |
| Pole fastening (EF009582) | No |
| Number of doors (EF000122) | 1.00 |
| Number of locks (EF000123) | 1.00 |
| Pitched roof (EF009278) | No |
| EMC-version (EF001062) | No |
| With glazed door (EF001089) | No |
| With ventilation door (EF006279) | No |
| With rear door (EF007381) | No |
| Impact strength (EF004293) | IK07 |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X |
