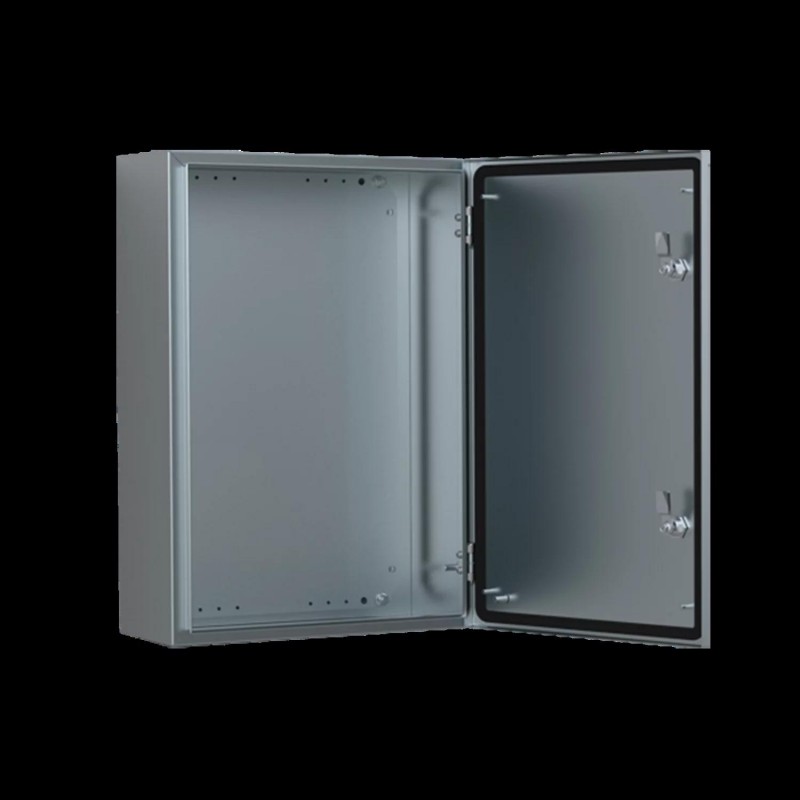

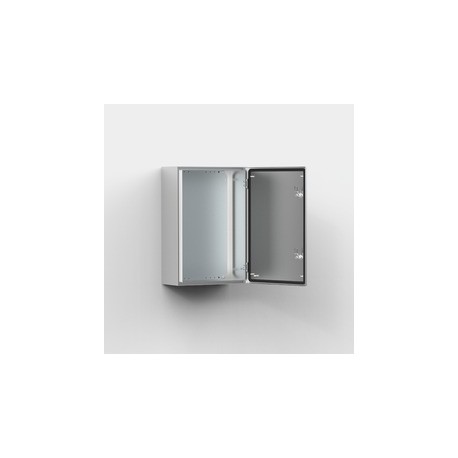

ASR0362415 ELDON Wall mounted, 360x240x150 ASR0362415
ASR0362415
ELDON
Wall mounted, 360x240x150 ASR0362415
Mural, 360x240x150, compact, 1-door, with MP, stainless 304, IP66
Single Door Enclosure, ASR, 360x240x150mm, Brushed, Stainless 304
Cabinet enclosures > Enclosure/switchgear cabinet (empty)
Stainless steel enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Often bought together
▲Best sellers
▲More info
▲Features
- Material: AISI 304L / AISI 316L pre-grained stainless steel. Body: 1.5 mm. Door for AISI 304L: 1.5 mm / 2 mm for enclosures with a height or width of 600 mm or greater. Door for AISI 316L: 2 mm. Mounting plate: 2 mm galvanized steel.
- Body: Folded and seam welded. For ease of installation, each back corner of the enclosure is laser-marked to precisely indicate where to drill holes and affix AWS wall mounting brackets.
- Door: Corner formed in one piece. Surface mounted, with 130° opening. Concealed AISI 304 stainless steel hinges with captive pin. Can be mounted to allow left or right hand opening. Sealing is ensured by an injected polyurethane gasket. For AISI 316L, sealing is ensured by an injected silicone gasket. Inner M6 welded studs, to mount optional door profiles MMDP.
- Lock: nVent HOFFMAN customized zamak double-bit 3 mm lock, with 90° movement and anti-vibration mechanism. Two locks for 600 mm high to 800 mm high enclosures. Espagnolette three point locking or 3 locks for 1000 mm high enclosures and above. Stainless steel lock and other versions are available as accessories.
- Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges. By using the AMG accessory, the mounting plate position can be adjusted to any depth.
- Cable access: No gland plate openings as standard, to maximise sealing and cleanliness.
- Protection: Corresponds with IP 66, TYPE 4X, 12, IK 10.
- Finish: 400 pre-grained stainless steel.
- Delivery: Enclosure with door, mounting plate, plastic double-bit 3 mm key, and mounting accessories. Metallic key, for height 1000 mm and above.
- Additional information: For outdoor environments, exposed to precipitation, the use of a rain hood is advised. Also in environments known for quick temperature changes, consideration to condensation should be taken. Please see the thermal management section.
| Atributo del producto | Valor |
|---|---|
| Height | 360 mm |
| Width | 240 mm |
| Depth | 150 mm |
| Material | Stainless Steel 304 |
| Panel Size | 330 x 190 mm |
| Max Mounting Depth | 132 mm |
| Finish | Brushed |
| Color | Unpainted |
| Body Thickness | 1.5 mm |
| Door Thickness | 1.5 mm |
| Latch Quantity | 1 |
| Weight | 4.85 kg |
| UPC | 783510450267 |
| EAN | 8713574120389 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| ASR0362415 ASR0362415 EN_ASR0242415.pdf | 1001 Kbytes |
|
| ASR0362415 ASR0362415 ASR0806021_Document-(PDF)2.pdf | 736 Kbytes |
|
| ASR0362415 ASR0362415 AFS08083_Document-(PDF)2.pdf | 344 Kbytes |
|
| ASR0362415 ASR0362415 AFS08083_Document-(PDF)3.pdf | 514 Kbytes |
|
| ASR0362415 ASR0362415 AFS08083_Document-(PDF)4.pdf | 275 Kbytes |
|
| ASR0362415 ASR0362415 ASR0806021_Document-(PDF)6.pdf | 487 Kbytes |
|
| ASR0362415 ASR0362415 AFS08083_Document-(PDF)5.pdf | 617 Kbytes |
|
| ASR0362415 ASR0362415 ASR0806021_Document-(PDF)8.pdf | 427 Kbytes |
|
| ASR0362415 ASR0362415 AFS08083_Document-(PDF)7.pdf | 82 Kbytes |
|
