ELDONGeneral AccessoriesBPT38 ELDON Vortex thermostat kit 3/8 BPT38
ELDON BPT38 BPT38 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

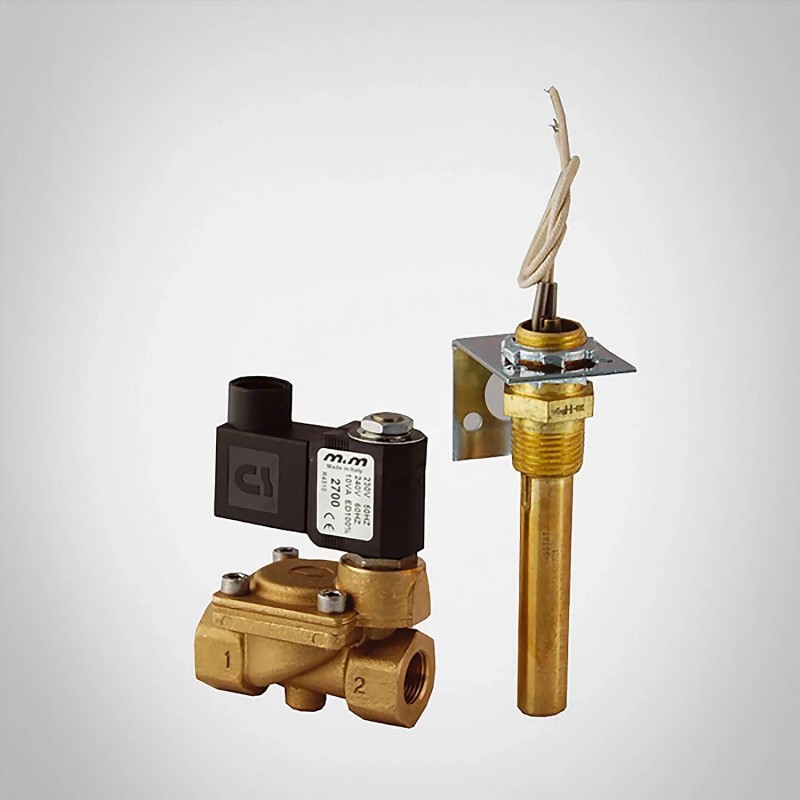

BPT38 ELDON Vortex thermostat kit 3/8 BPT38

Reference: BPT38

Manufacturer: ELDON

Description:

Vortex thermostat kit 3/8 BPT38
Kit thermostat Vortex 3/8, BP/HT, 4x30, 4x40
Vortex thermostat kit 3/8, BP/HT4x30 4x40

Categories:

  • Cabinet enclosures > Thermostat/hygrostat (enclosure/cabinet)
  • ELDON > General Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 570,83 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: Brass solenoid valve and thermostat that limit the flow of compressed air to only when cooling is needed. The thermostat is factory set at 35 °C, but adjustable to any other temperature. The thermostat mounts in a 22 mm diameter hole, and it may be mounted through the enclosure wall or on a bracket inside the enclosure. The thermostatically controlled vortex cooler saves compressed air, and it is recommended where heat load fluctuates and continual purge is not required.
  • Voltage: 240 V and 50 Hz. Other voltages on request.
  • Delivery: Thermostat with mounting bracket, and solenoid valve.
  • This is particular important when mounting a vortex cooler due to the high operating costs to compress air
  • Brass solenoid valve and thermostat that limit the flow of compressed air to only when cooling is needed
  • The thermostat is factory set at 35 °C, but adjustable to any other temperature
  • The thermostat mounts in a 22 mm diameter hole, and it may be mounted through the enclosure wall or on a bracket inside the enclosure
  • The thermostatically controlled vortex cooler saves compressed air, and it is recommended where heat load fluctuates and continual purge is not required
  • Voltage: 240 V and 50 Hz. Other voltages on request
  • Delivery: Thermostat with mounting bracket, and solenoid valve

ETIM for BPT38 Cabinets and enclosures (EC004587)

Feature nameMounting method (EF000003)
Feature valueScrew mounting

DATASHEET - PDF

Title
Size
Type
BPT38 BPT38 EN_BPT14.pdf
140 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
