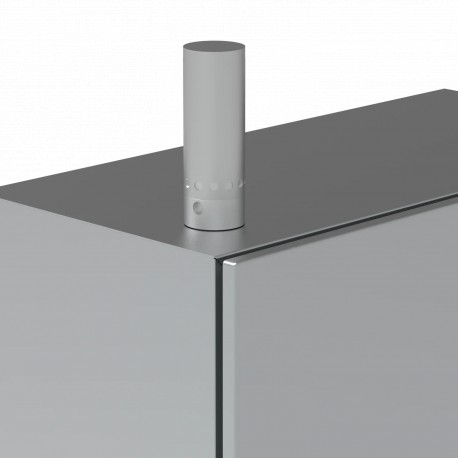

HT4615SS ELDON Vortex cooler 293W, 184 HT4615SS
HT4615SS
ELDON
Vortex cooler 293W, 184 HT4615SS
Refr. Vortex, 293 W, 184, flow of 425 l/min, stainless steel grade 304, IP66
Vortex cooler 293W, 184, air flow 425 l/min, Stainless 304, IP66
Cabinet enclosures > Air conditioner (switchgear cabinet)
General Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
- Description: Compact and reliable way to cool enclosures. It produces cold air from compressed air, with no moving parts. The easy mounting, through a standard electrical knockout, makes this solution especially suitable to be installed, even when the enclosures are already in the field. For a continuous Vortex operating, relative humidity inside the enclosure is maintained at aproximately 45%, no moisture condenses inside the enclosure (the enclosure must be sealed). Suitable even for ambient temperatures up to 93 °C, the internal components can withstand these high temperatures, and includes a silencer to minimize the noise. The coolers must be installed vertically to maintain the protection degree.
- Material: Internal vortex tube manufactured in stainless steel. External cover, BP TYPE 12 in plastic and aluminium, BP TYPE 4 in aluminium, and TYPE 4X in stainless steel.
- Protection: Depending on type, up to IP 66 TYPE 4X.
- Pack quantity: Vortex cooler with mounting accessories.
- The coolers must be installed vertically to maintain the protection degree
- Pack quantity: Vortex cooler with mounting accessories
- High temperature vortex cooler, with no moving parts and a high IP 66 protection degree
- The vortex cooler provides a maintenance free cooling solution which also reduces the relative humidity within the enclosure
- The vortex cooler can be installed on the enclosure easily, in environments of up to 93°C, reducing the required installation time
- The maintenance free cooling solution prevents unnecessary downtime
- This reliable solution reduces the customer's labour cost due to the ease of installation
- The vortex cooler will be a good thermal management solution for high temperature environments such as a steel mill
- t is recommended to install a thermostat, BPT, as well as an air distribution kit, BPA
- Cooling capacity is calculated with pressured air being 20°C and having 7-bar pressure
- Silencer included: Yes; Low pressure relief valve: Yes; Instalation cut-out diam. (mm): 48
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Air/air |
| With temperature control (EF000745) | No |
| Function master/slave (EF007183) | Yes |
| Width (EF000008) | 64.00 mm |
| Height (EF000040) | 184.00 mm |
| Depth (EF000049) | 64.00 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| HT4615SS HT4615SS EN_HT4615.pdf | 250 Kbytes |
|
