ELDONSteel Floor Standing EnclosuresUVT2552 ELDON Ventilation module, 255mm UVT2552

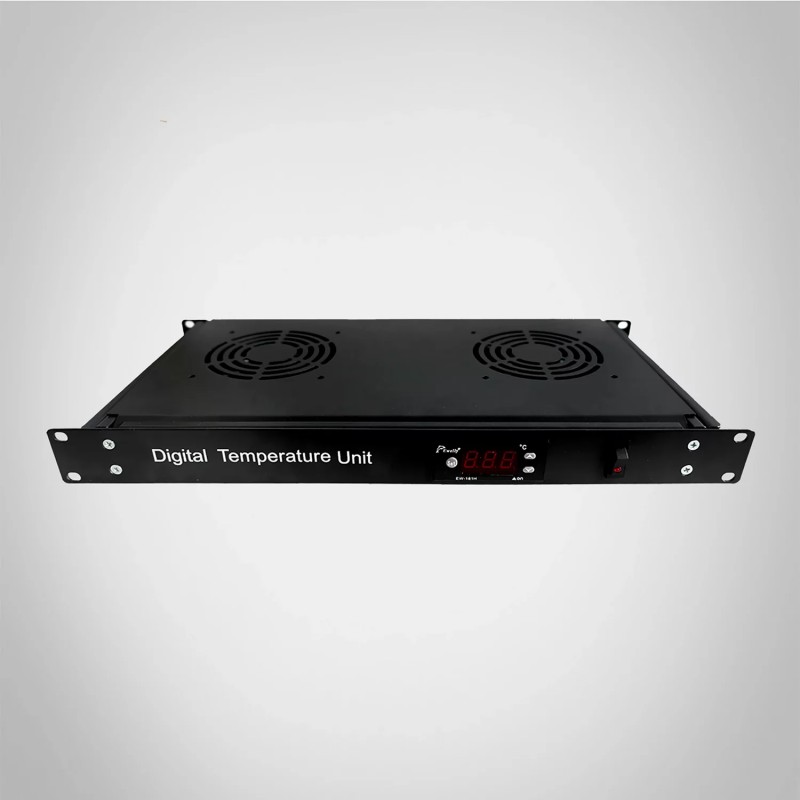

ELDON UVT2552 UVT2552 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

UVT2552 ELDON Ventilation module, 255mm UVT2552

Reference: UVT2552

Manufacturer: ELDON

Description:

Ventilation module, 255mm UVT2552
Module ventilation, 255mm
Ventilation module, 255mm

Categories:

  • Cabinet enclosures > Ventilator (switchgear cabinet)
  • ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 298,41 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: Ventilation shelf with controller that regulates the temperature and air flow inside the racks. The unit consists of a fan controller and 2 or 4 fans inside a one unit shelf. The electronic sensor can be attached where the temperature is most critical (hot spot), close to your most expensive equipment, to ensure the correct temperature and air flow. The current temperature is displayed on the front of the unit, where it is possible to see preset values and intervals. The presence of an automatic control allows the system to switch on the ventilation only when the temperature goes beyond the operator preset value Thereby the equipment gets less dusty and the energy consumption is reduced as well as the sound level. In other words the ventilation system saves energy, but also prolongs the life of the ventilators, which are operating only when needed. Fully wired and ready to connect.
  • Voltage: 200-235 V.
  • Alternating current frequency: 50~60 Hz.
  • Power of the fan: 22 Watt.
  • Consumption current: 0.28A / 0.56A.
  • Air circulation: 4.4 / 8.8 m³/min.
  • Measurement limits: -50 ºC ... +125 ºC.
  • Measurement accuracy: +/-0.5ºC.
  • Working temperature: 0...+50ºC.
  • Relative air humidity (air temp. +35C): 80%.
  • Noise level: 35 decibel.
  • Lifetime: 30.000 hours.
  • Approvals: UL, CSA, VDE, TUV.
  • Switch: No.
  • Thermostat: Yes.
  • Pack quantity: 1 unit including power cable (1.5 m) with Shuko plug and sensor cable (1.2 m). Version with 4 fans is supplied with a depth fixing bracket.
Atributo del producto Valor
Rack Units1U
Max Mounting Depth255mm
Fan Quantity2
MaterialMild Steel
FinishPowder Coated
ColorBlack
Enclosure MaterialMild Steel
UPC783510532062
EAN8713574177260
Standard Packaging Quantity1
Packing Quantity1

ETIM for UVT2552 Cabinets and enclosures (EC000320)

Feature nameNumber of fans (EF000928)
Feature value2.00
Feature nameOperating voltage AC 50 Hz (EF008206)
Feature value200.00 V
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameBuilt as slide-in ventilator (EF007126)
Feature valueYes
Feature nameAir circulator (EF007516)
Feature valueYes
Feature nameRoof ventilator (EF007099)
Feature valueNo
Feature nameWith filter (EF006013)
Feature valueNo
Feature nameVolume flow, freeblowing (EF007173)
Feature value15.00 m³/h
Feature nameRated power (EF007051)
Feature value44.00 W
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP33
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameSuitable for 19 inch rack mounting (EF000337)
Feature valueYes
Feature nameColour (EF000007)
Feature valueWhite
Feature nameRAL-number (EF000116)
Feature value7.04
Feature nameWidth (EF000008)
Feature value4.83 mm
Feature nameHeight (EF000040)
Feature value445.00 mm
Feature nameDepth (EF000049)
Feature value255.00 mm

DATASHEET - PDF

Title
Size
Type
UVT2552 UVT2552 EN_UVT2552.pdf
145 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
