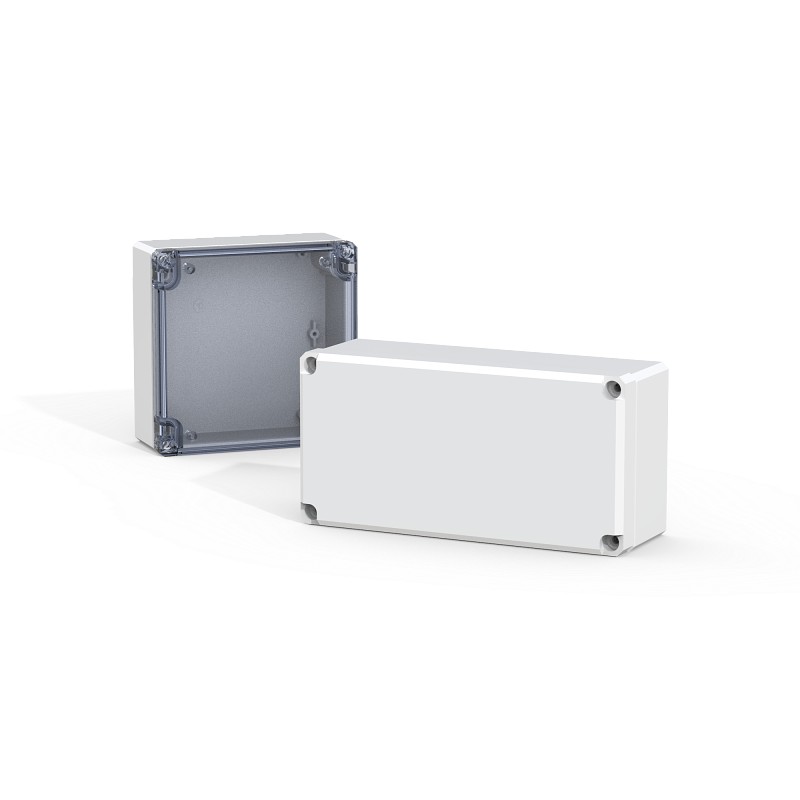

ELDONTerminal BoxesDPCP050704GE ELDON Terminal box, 53x65x36 DPCP050704GE
ELDON DPCP050704GE DPCP050704GE - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

DPCP050704GE ELDON Terminal box, 53x65x36 DPCP050704GE

Reference: DPCP050704GE

Manufacturer: ELDON

Description:

Terminal box, 53x65x36 DPCP050704GE
Box for terminals, 53x65x36, without MP, polycarbonate, IP66
Terminal box, 53x65x36, no MP, Polycarbonate, IP66

Categories:

  • Distribution boards > Empty cabinet
  • ELDON > Terminal Boxes

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 14,95 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: Polycarbonate box, halogen-free, suitable for outdoor use. High UV radiation resistance. Self-extinguishing.
  • Material: Polycarbonate.
  • Gasket: Polyurethane gasket integrated in the box cover.
  • Temperature resistance: -40 °C to +80 °C.
  • Flammability: UL746C 5V.
  • Protection: IP 66, 67 IK 08 (-25 °C … +35 °C).
  • Finish: RAL 7035.
  • Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
  • Delivery: Body, cover, cover screws manufactured from stainless steel, mounting screws and cover plugs made of polyamide.
  • Flammability: UL746C 5V
  • Protection: IP 66, 67 IK 08 (-25 °C … +35 °C)
  • Delivery: Body, cover, cover screws manufactured from stainless steel, mounting screws and cover plugs made of polyamide
Atributo del producto Valor
Height53 mm
Width65 mm
Depth36 mm
Max Mounting Depth25 mm
Weight0.08 kg
MaterialPolycarbonate
FinishSmooth
ColorLight Gray
Color CodeRAL 7035
UPC783510470913
EAN6418677176968
Standard Packaging Quantity1.0000
Packing Quantity1.0000

ETIM for DPCP050704GE Distribution boards (EC000058)

Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameType of covering (EF000339)
Feature valueCover
Feature nameCover model (EF009212)
Feature valueClosed
Feature nameType of door (EF004464)
Feature valueNone
Feature nameTransparent cover/door (EF006244)
Feature valueNo
Feature nameWith lock (EF006306)
Feature valueNo
Feature nameHeight (EF000040)
Feature value53.00 mm
Feature nameWidth (EF000008)
Feature value63.00 mm
Feature nameDepth (EF000049)
Feature value36.00 mm
Feature nameRAL-number (EF000116)
Feature value7.04
Feature nameNumber of modules (EF004427)
Feature value0.00
Feature nameNumber of rows (EF000266)
Feature value0.00
Feature nameNumber of openings for flange plates (EF009554)
Feature value0.00
Feature nameExtension possible (EF001088)
Feature valueNo
Feature nameNumber of conduit inlets (EF000437)
Feature value0.00
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameSuitable for outdoor use (EF003532)
Feature valueYes
Feature nameSuitable for lightning protection (EF007800)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueII
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameCircuit integrity (EF001613)
Feature valueNone
