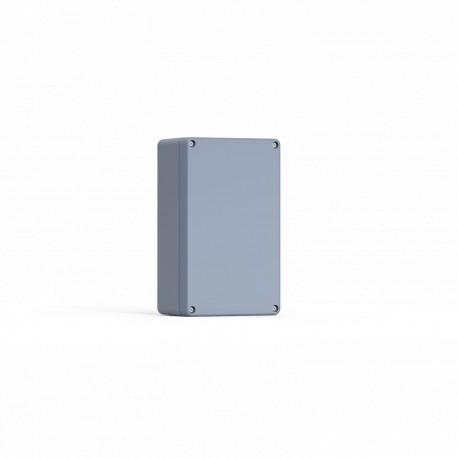

MGRP414012GE ELDON Terminal box, 405x400x120 MGRP414012GE
MGRP414012GE
ELDON
Terminal box, 405x400x120 MGRP414012GE
Box for terminals, 405x400x120, without MARKER, polyester, IP66
Terminal box, 405x400x120, no MP, polyester, IP66
Distribution boards > Empty cabinet
Terminal Boxes
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Related products
▲Best sellers
▲More info
▲Features
- Description: Polyester box. Suitable for outdoor use, UV-resistant according to UL746 C.
- Material: Glass fibre reinforced polyester.
- Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
- Temperature resistance: -40 °C to +100 °C with the standard polyurethane gasket; -60 °C to +130 °C with the silicone gasket; -35 °C to +100 °C with the EPDM gasket; -30 °C to +80 °C with the neoprene gasket.
- Flammability: UL94 V-0.
- Protection: IP 66, 67 IK 08, 07 for MGRP08080xGE.
- Finish: RAL 7000.
- Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
- Delivery: Body, cover and cover screws. Cover screws made of stainless steel.
- Note: Mounting plate, GMP, and hinges, HHI, are available separately.
| Atributo del producto | Valor |
|---|---|
| Height | 405mm |
| Width | 400mm |
| Depth | 120mm |
| Body Thickness | 6mm |
| Cover Thickness | 5mm |
| Cover Screw Quantity | 4 |
| Weight | 5.3kg |
| Material | Polyester |
| Finish | Smooth |
| Color | Squirrel Gray |
| Color Code | RAL 7000 |
| UPC | 783510502683 |
| EAN | 8713574090934 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Surface mounted |
| Type of covering (EF000339) | Cover |
| Cover model (EF009212) | Closed |
| Type of door (EF004464) | None |
| Transparent cover/door (EF006244) | false |
| With lock (EF006306) | false |
| Nominal current (In) (EF008873) | None A |
| Height (EF000040) | 405.00 mm |
| Width (EF000008) | 400.00 mm |
| Depth (EF000049) | 120.00 mm |
| Built-in depth (EF000218) | None mm |
| Inner depth (EF001131) | None mm |
| Material plate thickness cabinet (EF009170) | None mm |
| Material plate thickness door/cover (EF009171) | None mm |
| Colour (EF000007) | |
| RAL-number (EF000116) | 7.00 |
| Number of modules (EF004427) | 0.00 |
| Number of rows (EF000266) | 0.00 |
| Width in number of modular spacings (EF002950) | |
| Number of openings for flange plates (EF009554) | 0.00 |
| Extension possible (EF001088) | false |
| Number of conduit inlets (EF000437) | 0.00 |
| Housing material (EF001596) | Plastic |
| Surface protection (EF000139) | |
| With mounting plate (EF000118) | false |
| Suitable for outdoor use (EF003532) | true |
| Suitable for lightning protection (EF007800) | false |
| Degree of protection (IP) (EF005474) | IP67 |
| Degree of protection (NEMA) (EF011959) | |
| Protection class according to IEC 61140 (EF000004) | II |
| Impact strength (EF004293) | IK07 |
| Circuit integrity (EF001613) | None |
| Cover with overpressure release (EF015940) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| MGRP414012GE MGRP414012GE EN_MGRP080806GE.pdf | 210 Kbytes |
|
| MGRP414012GE MGRP414012GE AFS08083_Document-(PDF)3.pdf | 514 Kbytes |
|
