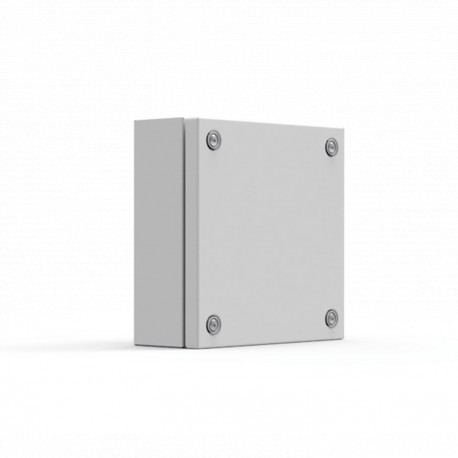

STB205012 ELDON Terminal box, 200x500x120 STB205012
STB205012
ELDON
Terminal box, 200x500x120 STB205012
Box for terminals, 200x500x120, no MP, mild steel, IP66
Terminal Box, STB, 200x500x120mm, Light Gray, Mild Steel
Cabinet enclosures > Enclosure/switchgear cabinet (empty)
Terminal Boxes
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Related products
▲Best sellers
▲More info
▲Features
- Material: 1.2 mm mild steel.
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing. Four M6 × 13 studs for bottom profiles / mounting plate fixation.
- Gasket: Sealing is ensured by an injected one piece polyurethane gasket.
- Earthing: M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels.
- Protection: IP 66, TYPE 4, 12, IK 08.
- Finish: RAL 7035, structured powder coating.
- Delivery: Body, cover, cover screws, fixing screws, cover plugs, and earthing facilities.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 200mm |
| Width (W) | 500mm |
| Depth (D) | 120mm |
| Weight | 4.3kg |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Body Thickness | 1.2mm |
| Door Thickness | 1.2mm |
| UPC | 783510529536 |
| EAN | 8713574158214 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 500.00 mm |
| Height (EF000040) | 200.00 mm |
| Depth (EF000049) | 120.00 mm |
| Material (EF002169) | Steel |
| Material quality (EF001257) | Other |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035.00 |
| With mounting plate (EF000118) | No |
| Mounting plate depth-adjustable (EF006054) | No |
| Suitable for wall built-in (EF007536) | No |
| Pole fastening (EF009582) | No |
| Number of doors (EF000122) | 1.00 |
| Number of locks (EF000123) | 4.00 |
| Suitable for metrical mounting (EF005823) | No |
| Pitched roof (EF009278) | No |
| EMC-version (EF001062) | No |
| With glazed door (EF001089) | No |
| With ventilation door (EF006279) | No |
| With rear door (EF007381) | No |
| Impact strength (EF004293) | IK08 |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| STB205012 STB205012 EN_STB151508.pdf | 544 Kbytes |
|
| STB205012 STB205012 AFS08083_Document-(PDF)3.pdf | 514 Kbytes |
|
| STB205012 STB205012 SSTB406012_Document-(PDF)3.pdf | 221 Kbytes |
|
| STB205012 STB205012 SSTB406012_Document-(PDF)4.pdf | 331 Kbytes |
|
| STB205012 STB205012 AFS08083_Document-(PDF)7.pdf | 82 Kbytes |
|
