ELDONTerminal BoxesSTB202012 ELDON Terminal box, 200x200x120 STB202012

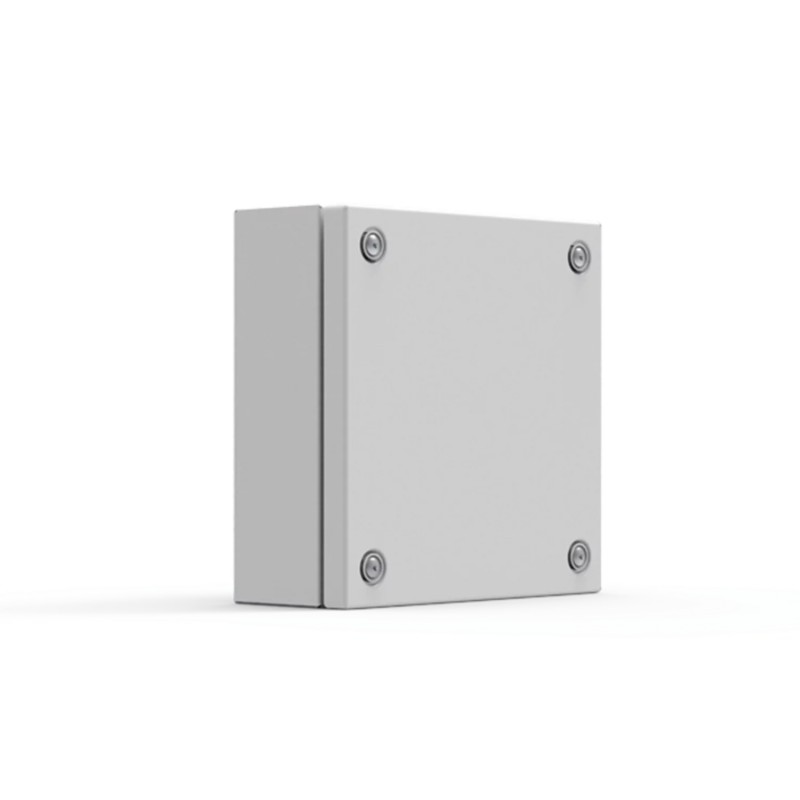

ELDON STB202012 STB202012 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

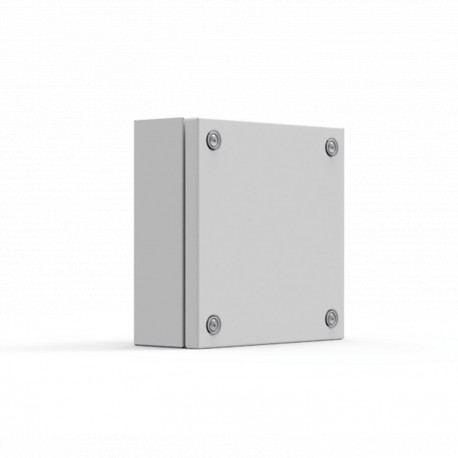

STB202012 ELDON Terminal box, 200x200x120 STB202012

Reference: STB202012

Manufacturer: ELDON

Description:

Terminal box, 200x200x120 STB202012
Box for terminals, 200x200x120, no MP, mild steel, IP66
Terminal Box, STB, 200x200x120mm, Light Gray, Mild Steel

Categories:

  • Cabinet enclosures > Enclosure/switchgear cabinet (empty)
  • ELDON > Terminal Boxes

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 54,45 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Material: 1.2 mm mild steel.
  • Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing. Four M6 × 13 studs for bottom profiles / mounting plate fixation.
  • Gasket: Sealing is ensured by an injected one piece polyurethane gasket.
  • Earthing: M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels.
  • Protection: IP 66, TYPE 4, 12, IK 08.
  • Finish: RAL 7035, structured powder coating.
  • Delivery: Body, cover, cover screws, fixing screws, cover plugs, and earthing facilities.
Atributo del producto Valor
Height200mm
Width200mm
Depth120mm
Weight2.1kg
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Body Thickness1.2mm
Door Thickness1.2mm
UPC783510529468
EAN8713574158160
Standard Packaging Quantity1
Packing Quantity1

ETIM for STB202012 Cabinets and enclosures (EC000261)

Feature nameWidth (EF000008)
Feature value200.00 mm
Feature nameHeight (EF000040)
Feature value200.00 mm
Feature nameDepth (EF000049)
Feature value120.00 mm
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameMaterial quality (EF001257)
Feature valueOther
Feature nameSurface finishing (EF006569)
Feature valuePowder coating
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7035.00
Feature nameFreestanding (EF020363)
Feature value
Feature nameFloor standing wall model (EF015208)
Feature value
Feature nameSuitable for wall mounting (EF000664)
Feature value
Feature nameCorner model (EF020814)
Feature value
Feature nameIntermediate mounting (EF022994)
Feature value
Feature nameCouplable (EF001229)
Feature value
Feature nameWith mounting plate (EF000118)
Feature valuefalse
Feature nameMounting plate depth-adjustable (EF006054)
Feature valuefalse
Feature nameSuitable for wall built-in (EF007536)
Feature valuefalse
Feature namePole fastening (EF009582)
Feature valuefalse
Feature nameNumber of doors (EF000122)
Feature value1.00
Feature nameNumber of locks (EF000123)
Feature value4.00
Feature nameSuitable for metrical mounting (EF005823)
Feature valuefalse
Feature namePitched roof (EF009278)
Feature valuefalse
Feature nameEMC-version (EF001062)
Feature valuefalse
Feature nameWith glazed door (EF001089)
Feature valuefalse
Feature nameWith ventilation door (EF006279)
Feature valuefalse
Feature nameWith rear door (EF007381)
Feature valuefalse
Feature nameImpact strength (EF004293)
Feature valueIK08
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameDegree of protection (NEMA) (EF011959)
Feature value4X
Feature nameThermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986)
Feature valueNone W
Feature nameMax. permissible load of the enclosure according to IEC 62208 (EF014987)
Feature valueNone N
Feature nameMax. permissible load of the door(s) according to IEC 62208 (EF014988)
Feature valueNone N
Feature nameMax. permissible load of the mounting plate according to IEC 62208 (EF014989)
Feature valueNone N
