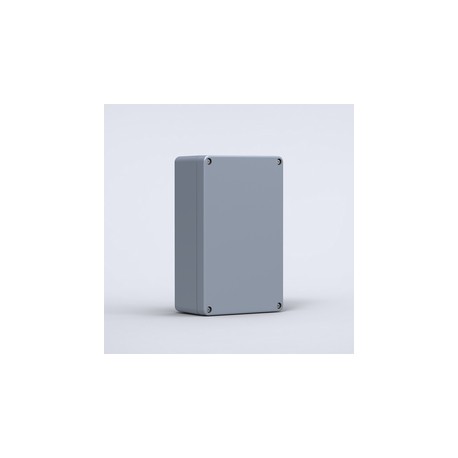

MGRP163609GE ELDON Terminal box, 160x360x90 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MGRP163609GE ELDON Terminal box, 160x360x90

MGRP163609GE

MGRP163609GE

ELDON

Available

Ship on today

Terminal box, 160x360x90

More details


Control Cabinets Switch Boxes Distribution Enclosures

Terminal Boxes - ELDON

Polyester terminal boxes. MGRP - ELDON

* Brand new produt in its original packing covered by the warranties and certifications provided by ELDON

QuantityPrice
1+82,81 €
3+79,13 €
5+77,79 €
7+77,02 €
9+76,68 €
*This price is per unit and is the net value (not including taxes if applicable).


Related products

More info



Characteristics
Height160 mm
Width360 mm
Depth90 mm
Weight2,30 Kg

Material:

Glass fibre reinforced polyester.

Gasket:

Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.

Temperature resistance:

-40°C to +100°C with the standard polyurethane gasket; -60°C to +130°C with the silicone gasket; -35ºC to +100ºC with the EPDM gasket; -30ºC to +80ºC with the neooprene gasket.

Flammability:

UL94 V-0.

Protection:

IP 66, 67.

Finish:

RAL 7000.

Approvals:

CE, GOST. For cULus approvals, please contact our sales department.

Delivery:

Body, cover and cover screws made of stainless steel.

Datasheet - PDF

Title:Language:Size:Type:
Datasheet 1: MGRP163609GEEnglish258 KbytesDatasheet 1: MGRP163609GE
Complete catalogue 1: MGRP163609GEEnglish1 MbytesDatasheet 1: MGRP163609GE
