ELDONSteel Floor Standing EnclosuresESFS408 ELDON Swing frame side, 2000 ESFS408

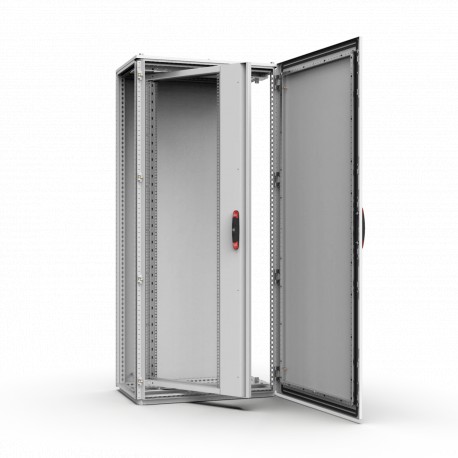

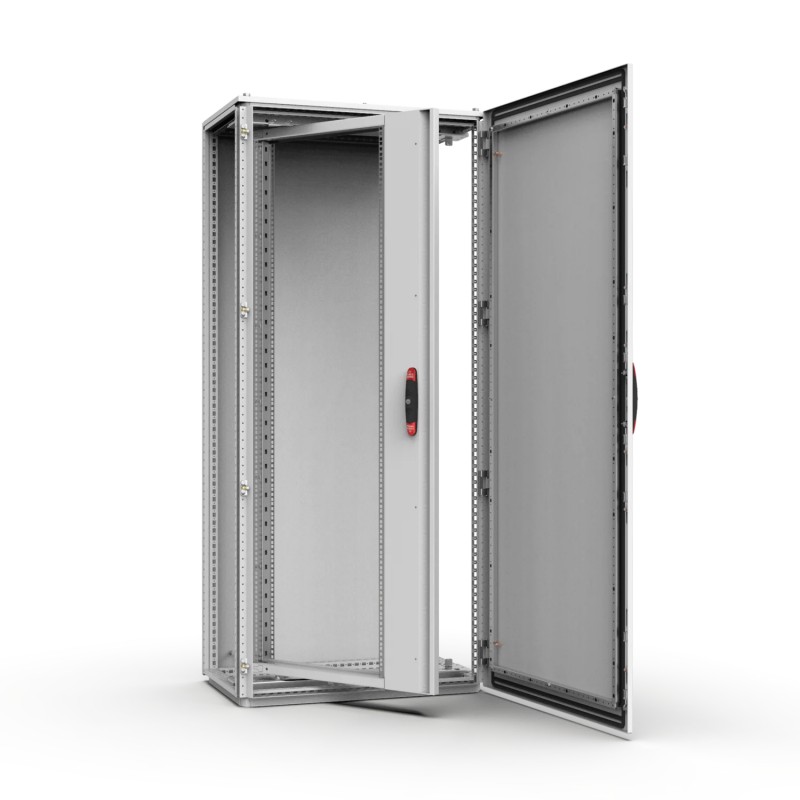

ELDON ESFS408 ESFS408 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ESFS408 ELDON Swing frame side, 2000 ESFS408

Reference: ESFS408

Manufacturer: ELDON

Description:

Swing frame side, 2000 ESFS408
Rotating frame side, 2000
Swing Frame Side Mounted, ESFS, 1867x694x80mm, Zinc Plated, Mild Steel

Categories:

  • Cabinet enclosures > Component for door (switchgear cabinet)
  • ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 458,54 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: Full height swing frame for 19” components allowing left and right hand opening with grip over the full height. Can be used in steel, combinable and compact enclosures. Hinges designed to give extra build-in depth. Adjustable top hinge for square mounting of the swing frame. Rigid W-shaped frame profile for heavy equipment. Zinc plated 19" vertical profiles for direct earthing of the mounted components. Standard equipped with 130° hinges. Full access to the enclosure's aperture can be acquired by use of 180° hinges ESFH180. For mounting use transversal support bars ESFB. Depth support and easy cable routing is achieved with depth mounting plate SFMP. Adjustable in depth by steps of 12.5 mm.
  • Maximum load: 1800 N, supplied with a self-positioning device.
  • Lock: Double-bit 3 mm espagnolette (other lock options possible).
  • Material: 19" vertical profiles 2 mm zinc plated steel. Frame: vertical profiles 2 mm and horizontal profiles 3 mm.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: 1 swing frame with hinges.
  • Mounting requirements: ESFS for 800 mm, 1000 mm wide steel, combinable enclosures. Add ESFB for mounting in a steel, combinable enclosure.
Atributo del producto Valor
Height2000mm
Width694mm
Depth80mm
Rack Units40U
MaterialMild Steel
FinishZinc Plated
Thickness3mm
Weight26.1kg
Package Quantity1
Enclosure MaterialMild Steel
UPC783510480813
EAN8713574205567
Standard Packaging Quantity1
Packing Quantity1

ETIM for ESFS408 Cabinets and enclosures (EC002626)

Feature nameModel (EF000010)
Feature valueOther
Feature nameMaterial (EF002169)
Feature valueMetal

DATASHEET - PDF
