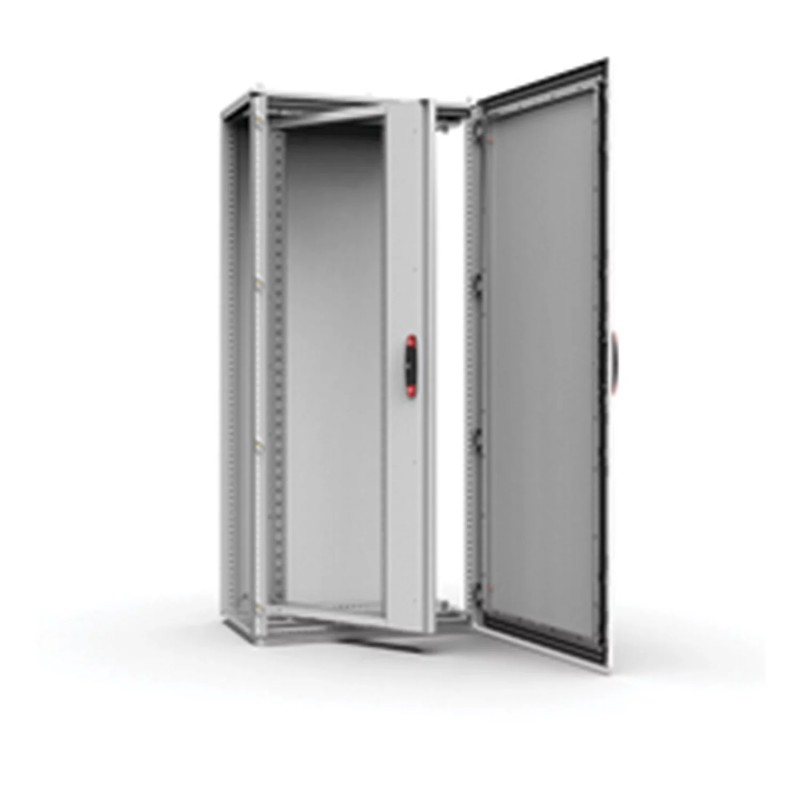

Images are for illustrative purposes only. Please refer to data sheet for details.

ESFS278 ELDON Swing frame side, 1400 ESFS278

Name: ESFS278 ELDON Swing frame side, 1400 ESFS278
Brand: ELDON
SKU: ELDESFS278
Price: 492.93 USD
Availability: OutOfStock

Reference: ESFS278

Manufacturer: ELDON

Description:

Swing frame side, 1400 ESFS278

Rotating frame side, 1400

Swing Frame Side Mounted, ESFS, 1267x694x80mm, Zinc Plated, Mild Steel

Categories:

Cabinet enclosures > Component for installation (switchgear cabinet)
ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 440,34 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 10 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Features

Description: Full height swing frame for 19” components allowing left and right hand opening with grip over the full height. Can be used in steel, combinable and compact enclosures. Hinges designed to give extra build-in depth. Adjustable top hinge for square mounting of the swing frame. Rigid W-shaped frame profile for heavy equipment. Zinc plated 19" vertical profiles for direct earthing of the mounted components. Standard equipped with 130° hinges. Full access to the enclosure's aperture can be acquired by use of 180° hinges ESFH180. For mounting use transversal support bars ESFB. Depth support and easy cable routing is achieved with depth mounting plate SFMP. Adjustable in depth by steps of 12.5 mm.
Maximum load: 1800 N, supplied with a self-positioning device.
Lock: Double-bit 3 mm espagnolette (other lock options possible).
Material: 19" vertical profiles 2 mm zinc plated steel. Frame: vertical profiles 2 mm and horizontal profiles 3 mm.
Finish: RAL 7035 structured powder coating.
Pack quantity: 1 swing frame with hinges.
Mounting requirements: ESFS for 800 mm, 1000 mm wide steel, combinable enclosures. Add ESFB for mounting in a steel, combinable enclosure.

Atributo del producto	Valor
Height	1400 mm
Width	694 mm
Depth	80 mm
Rack Units	27
Material	Mild Steel
Finish	Zinc Plated
Color	Unpainted
Thickness	3 mm
Weight	19.5 kg
Enclosure Material	Mild Steel
Product Family	Free-Standing
Package Quantity	1
UPC	783510480738
EAN	8713574205536
Standard Packaging Quantity	1.0000
Packing Quantity	1.0000
