ELDONSteel Floor Standing EnclosuresESFM368 ELDON Swing frame centre, 1800 ESFM368

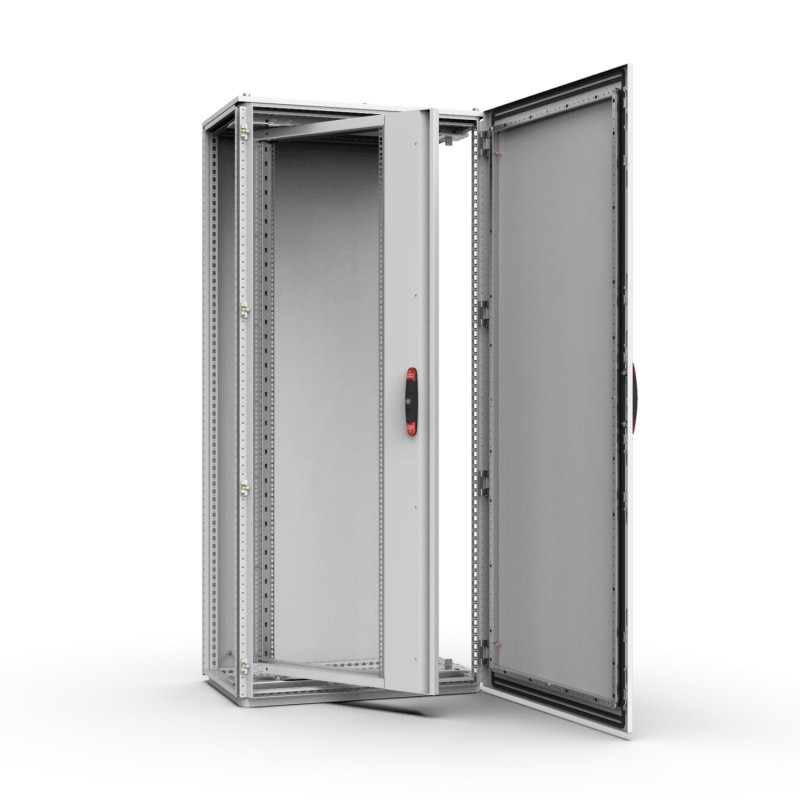

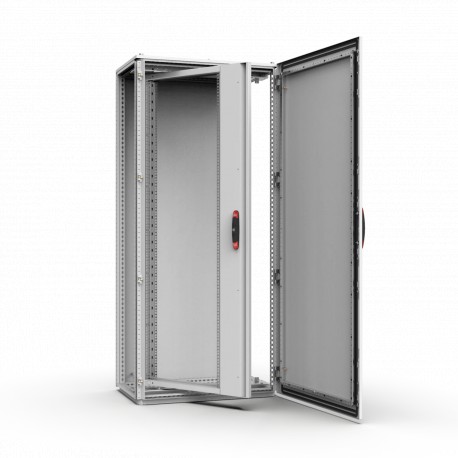

ELDON ESFM368 ESFM368 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ESFM368 ELDON Swing frame centre, 1800 ESFM368

Reference: ESFM368

Manufacturer: ELDON

Description:

Swing frame centre, 1800 ESFM368
Rotating frame central, 1800
Swing Frame Middle Mounted, ESFM, 1667x694x80mm, Zinc Plated, Mild Steel

Categories:

  • Cabinet enclosures > Component for door (switchgear cabinet)
  • ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 483,49 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: Full height swing frame for 19” components allowing left and right hand opening with grip over the full height. Can be used in steel, combinable and compact enclosures. Hinges designed to give extra build-in depth. Adjustable top hinge for square mounting of the swing frame. Rigid W-shaped frame profile for heavy equipment. Zinc plated 19" vertical profiles for direct earthing of the mounted components. Full access to the enclosure aperture can be acquired by the standard fitted 180° hinges. For mounting use transversal support bars ESFB. Depth support and easy cable routing is achieved with depth mounting plate SFMP. Adjustable in depth by steps of 12.5 mm.
  • Maximum load: 1800 N, supplied with a self-positioning device.
  • Lock: Double-bit 3 mm espagnolette (other lock options possible).
  • Material: 19" vertical profiles 2 mm zinc plated steel. Frame: vertical profiles 2 mm and horizontal profiles 3 mm.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: 1 swing frame with 180° hinges.
  • Mounting requirements: ESFM for 800 mm and 1000 mm wide steel, combinable enclosures. Add ESFB for mounting in a steel, combinable enclosure.
Atributo del producto Valor
Height1800mm
Width694mm
Depth80mm
Rack Units36U
MaterialMild Steel
FinishZinc Plated
Thickness3mm
Weight25.6kg
Package Quantity1
Enclosure MaterialMild Steel
UPC783510480646
EAN8713574205505
Standard Packaging Quantity1
Packing Quantity1

ETIM for ESFM368 Cabinets and enclosures (EC002626)

Feature nameModel (EF000010)
Feature valueOther
Feature nameMaterial (EF002169)
Feature valueMetal
