SFM278
ELDON
1
Available Ship on today

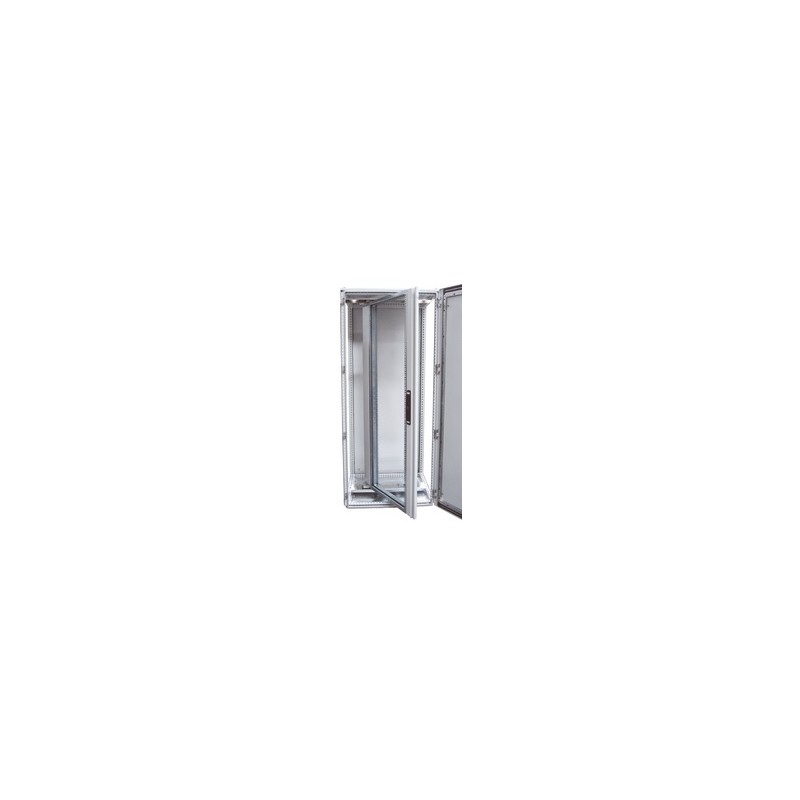

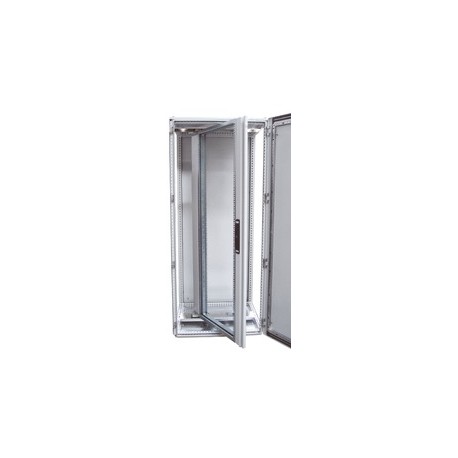

Swing frame centre, 1400 SFM278
Full height swing frame mounted cantered in an enclosure, allowing mounting in front while still having access to the back side by the swing frame.
Home > ELDON
* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Description: | Full height swing frame for 19" components allowing left and right hand opening with grip over the full height. Can be used in MultiFlex enclosures. Hinges designed to give extra build-in depth. Adjustable top hinge for square mounting of the swing frame. Rigid W-shaped frame profile for heavy equipment. Zinc plated frame for direct earthing of the mounted components. Full access to the enclosure aperture can be acquired by the standard fitted 180° hinges. For mounting use transversal support bars SFB. Depth support and easy cable routing is achieved with depth mounting plate SFMP. Adjustable in depth by steps of 12.5mm. Vertical profiles, 2mm and horizontal profiles, 3mm. |
Lock: | Double-bit 3mm espagnolette (other lock options possible). |
Material: | Frame zinc plated steel. Panels: 2mm steel plate. |
Finish: | RAL 7035 structured powder coating. |
Pack quantity: | 1 swing frame with hinges. |
Mounting requirements: | SFM for 800mm, 1000mm wide MultiFlex enclosures. Add SFB for mounting in a MultiFlex enclosure. |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE NVENT EN.pdf | 76 Mbytes | |
SFM278 SFM278 ES_SFM278.pdf | 190 Kbytes | |
Download general catalog |
