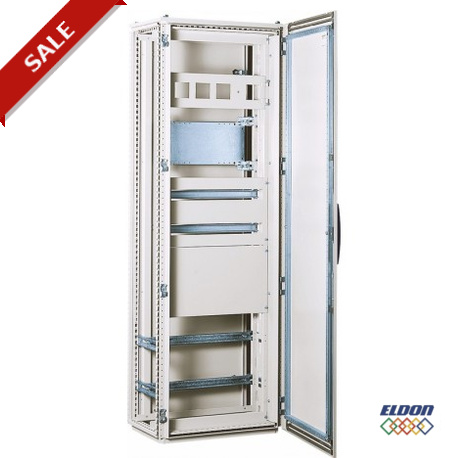

CMV2008R5 ELDON Support frame, 2000x800 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

CMV2008R5 ELDON Support frame, 2000x800



Available Ship on today

Support frame, 2000x800

More details

Control Cabinets Switch Boxes Distribution Enclosures

Power and distribution

Power and distribution accessories

* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

*This price is per unit and is the net value (not including taxes if applicable).

Related products

More info

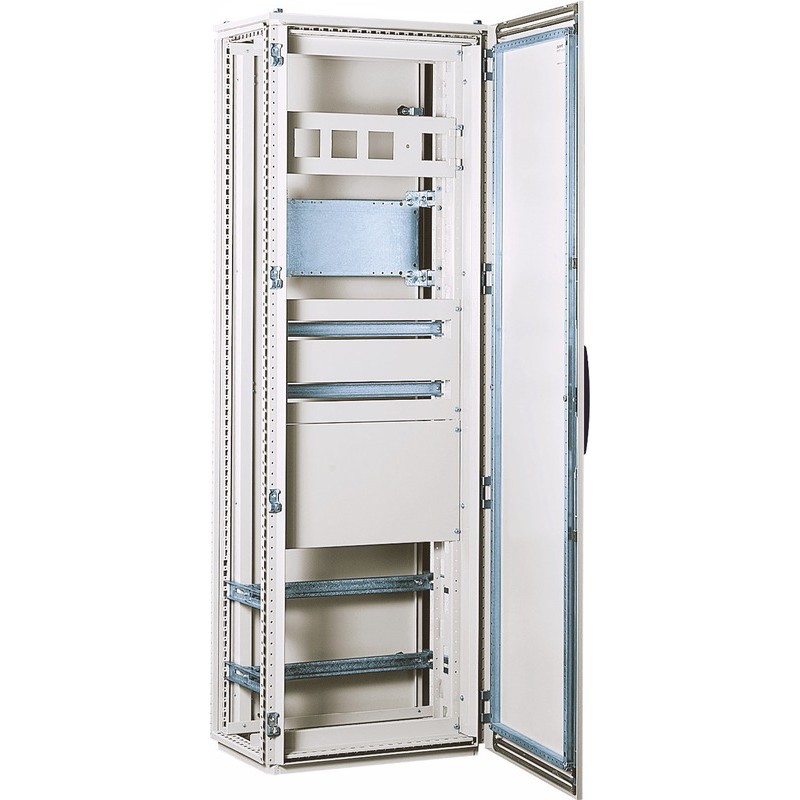

Support frame for easy installation of panels and mounting rails in a MCSL enclosure.

Height2000 mm
Width800 mm
Steps of 50 mm36


Support frame for mounting the modular panels and components by steps of 150mm (a space for equipment of 46mm high is provided). By using PP 0735 DIN rails 54mm can be obtained. The mounting plate can still be used and there is 80mm of space between standard or glazed doors and the fitted panels for protruding equipment. The frame can be assembled, fully equipped and pre-wired outside the enclosure. and then fitted into the enclosure. Cut-outs are provided on the sides of the vertical support for cable routing.


1.35mm steel plate in structure powder paint. RAL 7035.

Pack quantity:

2 vertical profiles, top & bottom plates.

Datasheet - PDF

Title: Language: Size: Type:
Datasheet 1: CMV2008R5 English 195 Kbytes Datasheet 1: CMV2008R5
Complete catalogue 1: CMV2008R5 English 9 Mbytes Datasheet 1: CMV2008R5
