View larger

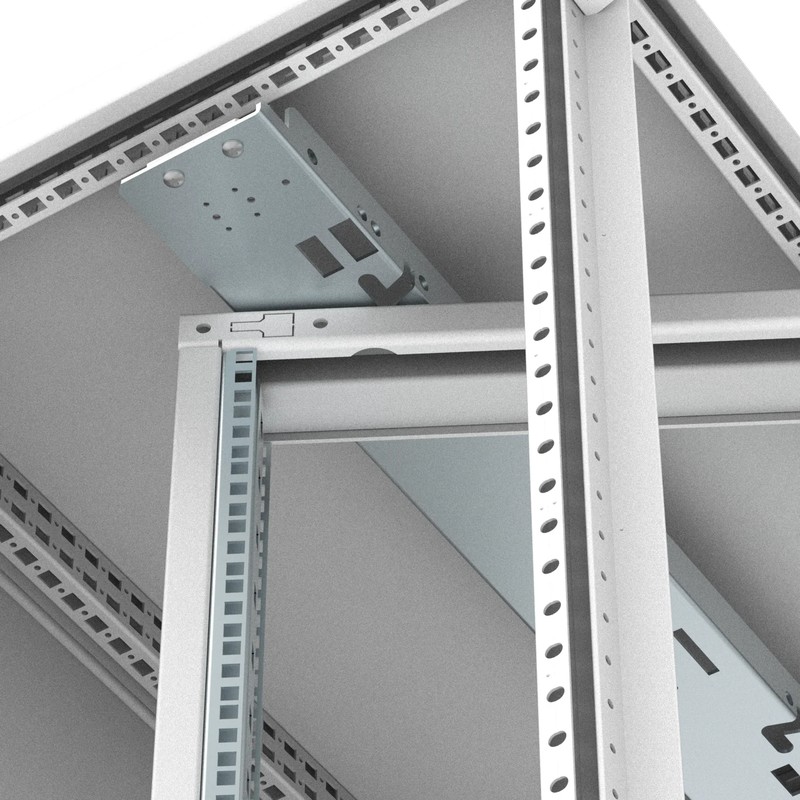

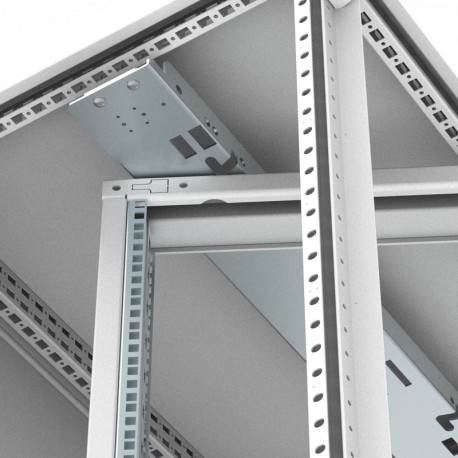

ESFB06 ELDON Support bar, 600
ESFB06
ELDON
Support bar, 600
Clamping kit, 600. Pack of 2 units.. Pack of 2 units.
Swing Frame Transversal Support Bars, ESFB, 61x560x103mm, Zinc Plated, Steel
Cabinet enclosures > Divider panel (switchgear cabinet)
Steel Floor Standing Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
- Description: For full height mounting of swing frames in steel
- Material: 3 mm zinc plated steel.
- Mounting requirements: Support bars (ESFB) 600 mm wide can also be mounted directly into a 1200 mm wide enclosure by means of a VBD. Support bars (ESFB) 800 mm wide can also be mounted directly in 1600 mm wide enclosures.
- Pack quantity: One complete kit for a swing frame.
| Atributo del producto | Valor |
|---|---|
| Height | 600mm |
| Width | 600mm |
| Depth | 103mm |
| Material | Mild Steel |
| Finish | Zinc Plated |
| Thickness | 3mm |
| Weight | 5.2kg |
| Package Quantity | 2 |
| Enclosure Material | Mild Steel |
| UPC | 783510480257 |
| EAN | 8713574205598 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 483.00 mm |
| Suitable for enclosure building width (EF000326) | 600.00 mm |
| Suitable for enclosure building depth (EF000327) | None mm |
| Width (EF000008) | 560.00 mm |
| Height (EF000040) | 61.00 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Other |
| RAL-number (EF000116) | |
| With cable entry (EF000325) | false |
| Number of height units (EF003561) | |
| With lock (EF006306) | true |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | false |
| For internal separation form 2b (EF009587) | false |
| For internal separation form 3a (EF009588) | false |
| For internal separation form 3b (EF009589) | false |
| For internal separation form 4a (EF009590) | false |
| For internal separation form 4b (EF009591) | false |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| ESFB06 ESFB06 EN_ESFB06.pdf | 180 Kbytes |
|
