ELDONSteel Floor Standing EnclosuresSPD2206 ELDON Separation plate, 2200x600 SPD2206

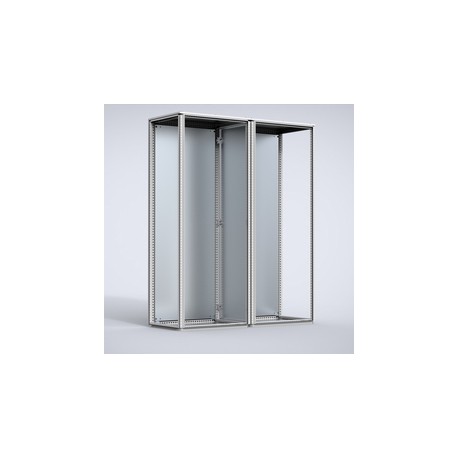

ELDON SPD2206 SPD2206 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

SPD2206 ELDON Separation plate, 2200x600 SPD2206

Reference: SPD2206

Manufacturer: ELDON

Description:

Separation plate, 2200x600 SPD2206
Separator plate, 2200x600, galvanized
Separation Plates for MCS MCD Enclosures, SPD, 2200x13x600mm, Zinc Plated, Steel

Categories:

  • Cabinet enclosures > Divider panel (switchgear cabinet)
  • ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 149,34 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

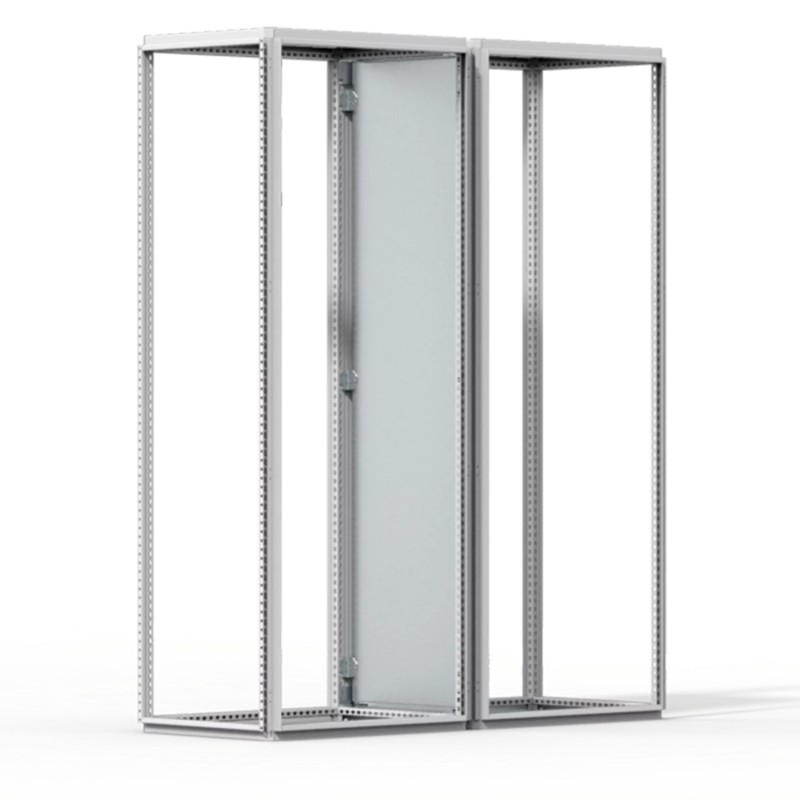

  • Description: Separates two bayed MCS/MCD enclosures.
  • Material: 1.5 mm zinc plated steel.
  • Mounting requirements: IP 43 and TYPE 1 sealing can be obtained by using SPDG gasket. CCJ brackets are required to mount the SPD into the enclosures. To bay enclosures together, use CCM and CCI brackets. For EMI shielding the SPDEG gasket must be used.
  • Pack quantity: 1 piece.
Atributo del producto Valor
Height2200mm
Width13mm
Depth506mm
Enclosure MaterialMild Steel
MaterialMild Steel
FinishZinc Plated
Thickness1.5mm
Package Quantity1
Weight13.5kg
UPC783510528386
EAN8713574068537
Standard Packaging Quantity1
Packing Quantity1

ETIM for SPD2206 Cabinets and enclosures (EC002525)

Feature nameSuitable for enclosure building width (EF000326)
Feature value2200.00 mm
Feature nameSuitable for enclosure building depth (EF000327)
Feature value600.00 mm
Feature nameWidth (EF000008)
Feature value13.00 mm
Feature nameHeight (EF000040)
Feature value2118.00 mm
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface finishing (EF006569)
Feature valueOther
Feature nameColour (EF000007)
Feature valueOther
Feature nameWith cable entry (EF000325)
Feature valueNo
Feature nameWith lock (EF006306)
Feature valueNo
Feature nameConstruction type (EF000767)
Feature valueAssembly kit
Feature nameFor internal separation form 2a (EF009586)
Feature valueNo
Feature nameFor internal separation form 2b (EF009587)
Feature valueNo
Feature nameFor internal separation form 3a (EF009588)
Feature valueNo
Feature nameFor internal separation form 3b (EF009589)
Feature valueNo
Feature nameFor internal separation form 4a (EF009590)
Feature valueNo
Feature nameFor internal separation form 4b (EF009591)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
SPD2206 SPD2206 EN_SPD1804.pdf
139 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
