ELDONPolyester Uniplast enclosuresURH7532 ELDON Rain hood, 750 URH7532

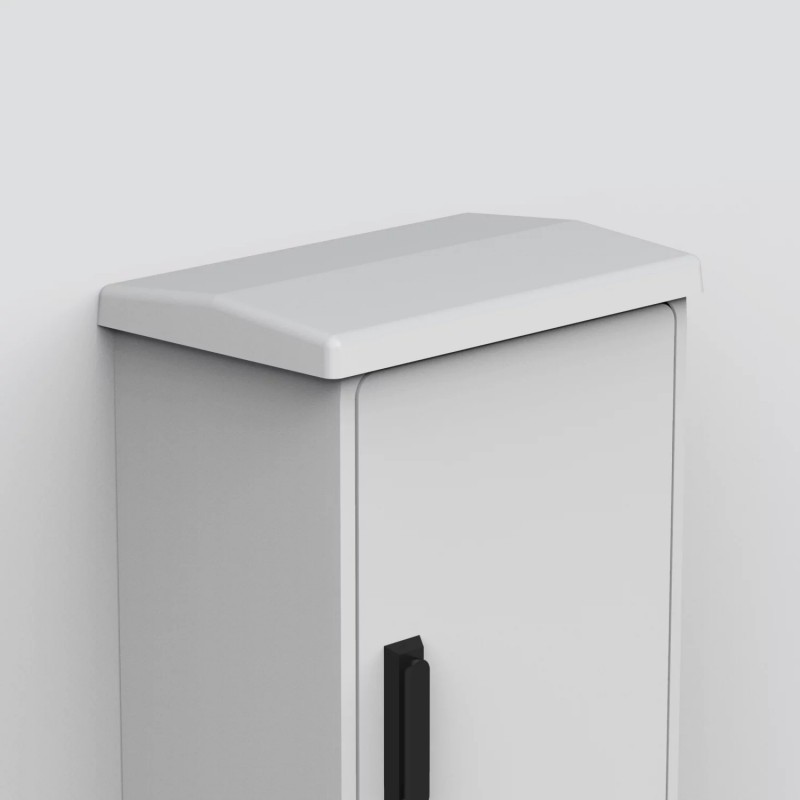

ELDON URH7532 URH7532 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

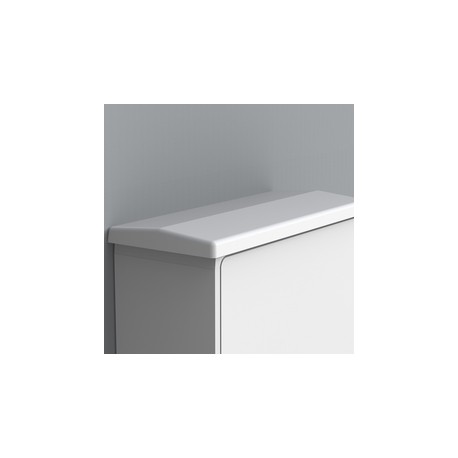

URH7532 ELDON Rain hood, 750 URH7532

Reference: URH7532

Manufacturer: ELDON

Description:

Rain hood, 750 URH7532
Tejadillo, 750, fiber glass
Rain hood, 750, Fibre glass

Categories:

  • Cabinet enclosures > Top-/floor cover element (enclosure/switchgear cabinet)
  • ELDON > Polyester Uniplast enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 75,76 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: Extra protection for outdoor use. Ventilation holes can be drilled in the top of the enclosure. When mounted, the enclosure's degree of protection is IP 44.
  • Material: Glass fibre reinforced polyester.
  • Finish: RAL 7035.
  • Delivery: 1 piece with mounting accessories.
  • Mounting requirements: Rain hoods require special wall mounting brackets UWB02. Four fixing points for securing the rain hood are marked off in the top panel. The rain hood cannot be used when the enclosures are joined, some combinations are available on request. Machining is required.
  • Rain hoods are not compatible with combined enclosures
  • If the enclosure is to be mounted to a wall, the wall mounting brackets, UWB02, must be used
  • When the rain hood is mounted, the enclosure's protection degree is IP44
  • Extra protection for outdoor use
  • Ventilation holes can be drilled in the top of the enclosure
  • Glass fibre reinforced polyester
  • 1 piece with mounting accessories
  • Rain hoods require special wall mounting brackets UWB02
  • Four fixing points for securing the rain hood are marked off in the top panel
  • The rain hood cannot be used when the enclosures are joined, some combinations are available on request. Machining is required
  • Package quantity: 1 with mounting hardware
Atributo del producto Valor
Height53mm
Width790mm
Depth340mm
Enclosure MaterialPolyester
Product FamilyWall Mounted
MaterialPolyester
FinishSmooth
ColorLight Gray
Color CodeRAL 7035
UPC783510532055
EAN8713574101555
Standard Packaging Quantity1
Packing Quantity1

ETIM for URH7532 Cabinets and enclosures (EC000744)

Feature nameSuitable for roof planking (EF009584)
Feature valuetrue
Feature nameSuitable for bottom planking (EF009585)
Feature valuefalse
Feature nameWidth (EF000008)
Feature value750.00 mm
Feature nameHeight (EF000040)
Feature valueNone mm
Feature nameDepth (EF000049)
Feature value340.00 mm
Feature nameSuitable for enclosure building width (EF000326)
Feature value750.00 mm
Feature nameSuitable for enclosure building depth (EF000327)
Feature value320.00 mm
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueUntreated
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7.04
Feature nameWith de-aeration (EF001161)
Feature valuetrue
Feature nameSuitable for outdoor set-up (EF005774)
Feature valuetrue
Feature nameWith cable entry (EF000325)
Feature valuefalse

DATASHEET - PDF

Title
Size
Type
URH7532 URH7532 EN_URH10032.pdf
93 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
