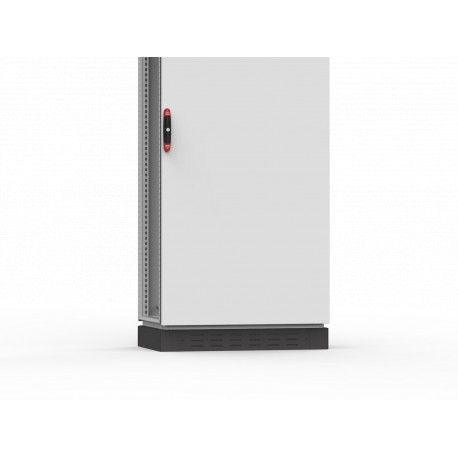

PV1080 ELDON Plinth front and rear, 800 PV1080
PV1080
ELDON
Plinth front and rear, 800 PV1080
Socket-ventilated area, 800, sheet steel, RAL7022. Pack of 2 units.
Ventilated Front/Rear Plinths, PV, 100x798x62mm, Zinc Plated, Mild Steel
Cabinet enclosures > Base/base element (switchgear cabinet)
Steel Floor Standing Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Related products
▲Often bought together
▲Best sellers
▲More info
▲Features
- Description: Front and rear plinth sections with ventilated panels. Recommended to be used in combination with the ventilated bottom plate CVB. For cabling without any restrictions and in accordance with the VDE 0113 standard. The plinth consists of four corner pieces with removable front covers. All panels have double returns for added strength. Only available in height of 100 mm.
- Material: Corner pieces in 2 mm and panels in 1.5 mm mild steel.
- Finish: RAL 7022 structured powder coating.
- Pack quantity: 1 set of 4 corner pieces including covers. Front and rear panel with mounting accessories for side panels PS or transversal profiles PCP.
- Mounting requirements: Add the side panels PS for a complete plinth. When combining enclosures it is recommended to add transversal panels PCP for cable duct support and extra rigidity. Use ventilated bottom plates CVB to get better enclosure ventilation.
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Base front/back |
| Material (EF002169) | Steel |
| Colour (EF000007) | Grey |
| Width (EF000008) | 798.00 mm |
| Height (EF000040) | 100.00 mm |
| Depth (EF000049) | 62.00 mm |
| Suitable for enclosure building width (EF000326) | 800.00 mm |
| Suitable for enclosure building depth (EF000327) | 62.00 mm |
| Suitable for aeration/de-aeration (EF000324) | No |
| Suitable for cable patch (EF007251) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| PV1080 PV1080 EN_PV1040.pdf | 104 Kbytes |
|
| Download general catalog |
|
