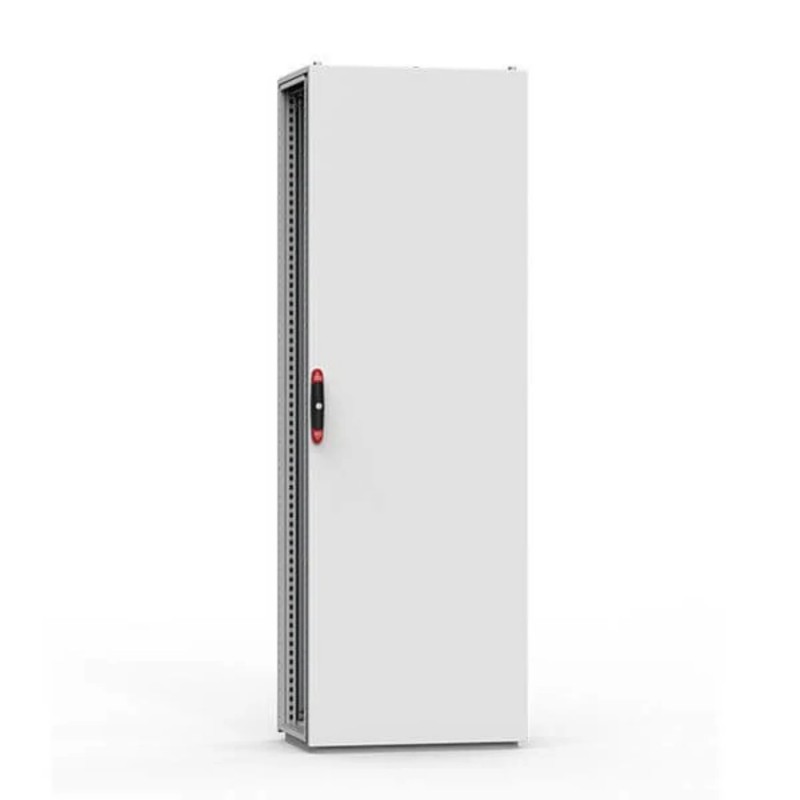

DN1805LR5 ELDON Plain door, 1800x500 DN1805LR5
DN1805LR5
ELDON
Plain door, 1800x500 DN1805LR5
Door opaque, 1800x500, steel sheet, lock double-warded 3 mm
Plain Doors, DN Left, 1782x493x17mm, Light Gray, Mild Steel
Cabinet enclosures > Door/operating panel (switchgear cabinet)
Steel Floor Standing Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
- Description: Standard door equipped with double-bit 3 mm lock system and door frame. Door accessory kit DNMK (hinges, rod catches) to be ordered separately. Allows all the options of the locking program and 180° hinges. Compatible with combinable and compact enclosure ranges.
- Material: 2 mm steel plate.
- Maximum load: 800 N.
- Finish: RAL 7035 structured powder coating.
- Mounting requirements: Use hinge kit DNMK if no door was fitted previously.
- Pack quantity: 1 piece.
| Atributo del producto | Valor |
|---|---|
| Height | 1782mm |
| Width | 493mm |
| Depth | 17mm |
| Door Type | Left Door |
| Enclosure Material | Mild Steel |
| Product Family | Free-Standing |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 2mm |
| Package Quantity | 1 |
| Weight | 21.2kg |
| UPC | 783510466718 |
| EAN | 8713574217966 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Protective door |
| Version as glazed door (EF006966) | No |
| Version as door for disconnecting switch interlocking (EF006967) | No |
| Width (EF000008) | 493.00 mm |
| Height (EF000040) | 1782.00 mm |
| Depth (EF000049) | 17.00 mm |
| EMC-version (EF001062) | No |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| Degree of protection (IP) (EF005474) | Other |
| Degree of protection (NEMA) (EF011959) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| DN1805LR5 DN1805LR5 EN_DN1808RR5.pdf | 81 Kbytes |
|
