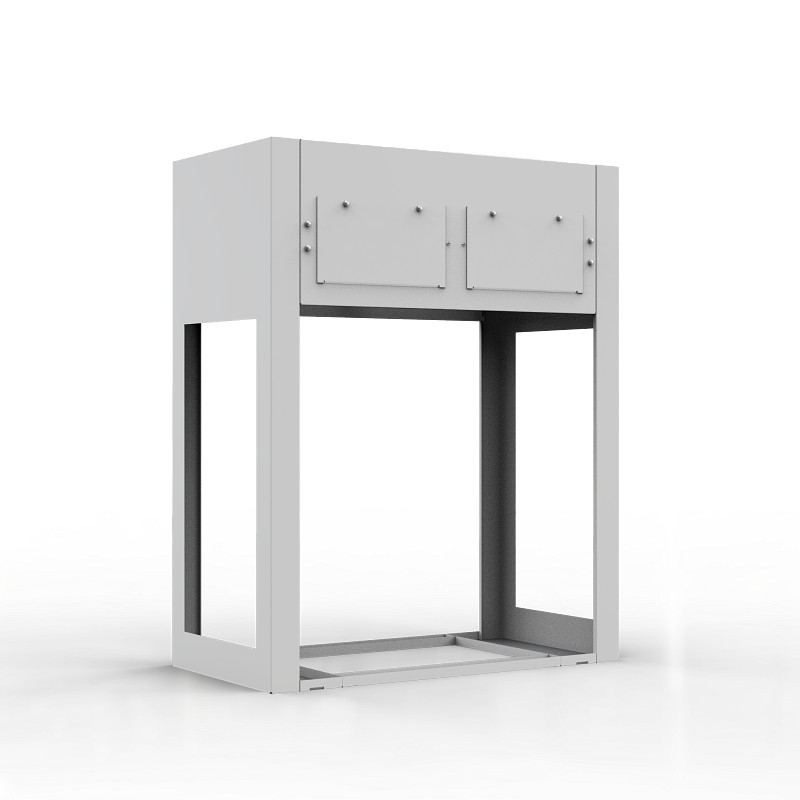

PGM10124 ELDON Socket, 1000x1200x400, galvanized steel, RAL7035
PGM10124
ELDON
Socket, 1000x1200x400, galvanized steel, RAL7035
Burial plinth, 1000x1200x400, Galvanized steel, RAL7035
Cabinet enclosures > Base/base element (switchgear cabinet)
Steel Floor Standing Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
- Description: Ground mounted plinth 1000 mm height. Excavation depth: 700-950 mm.
- Material: 2 mm galvanized steel.
- Finish: RAL 7035 polyester powder coated.
- Pack quantity: 1 kit of ground mounted plinth.
- Outdoor aluminum EKOM enclosures can be easily installed in the field thanks to the installation depth of the ground plinth
- Cables that are channelled underground can be wired much quicker than if they had to be brought to the surface first.
- For the installation of UDP polyester modular wall mounted enclosures in the base is required the adaptor frame UAF
| Atributo del producto | Valor |
|---|---|
| Height | 1000 mm |
| Width | 1200 mm |
| Depth | 400 mm |
| Enclosure Material | Aluminum |
| Product Family | Free-Standing |
| Material | Galvanized Steel |
| Finish | Galvanized |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 2 mm |
| UPC | 783510526160 |
| EAN | 8713574220201 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Base complete |
| Material (EF002169) | Steel |
| Colour (EF000007) | Grey |
| Width (EF000008) | 1.00 mm |
| Height (EF000040) | 1.00 mm |
| Depth (EF000049) | 400.00 mm |
| Suitable for enclosure building width (EF000326) | 1.20 mm |
| Suitable for enclosure building depth (EF000327) | 400.00 mm |
| Suitable for aeration/de-aeration (EF000324) | No |
| Suitable for cable patch (EF007251) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| PGM10124 PGM10124 EN_PGM10064.pdf | 85 Kbytes |
|
